Husqvarna GTH26V52 LS - 96043011800 (2010-11) Riding Tractor

Model: GTH26V52 LS - 96043011800 (2010-11)

Back To Assemblies

Save Part Not Listed?
product name

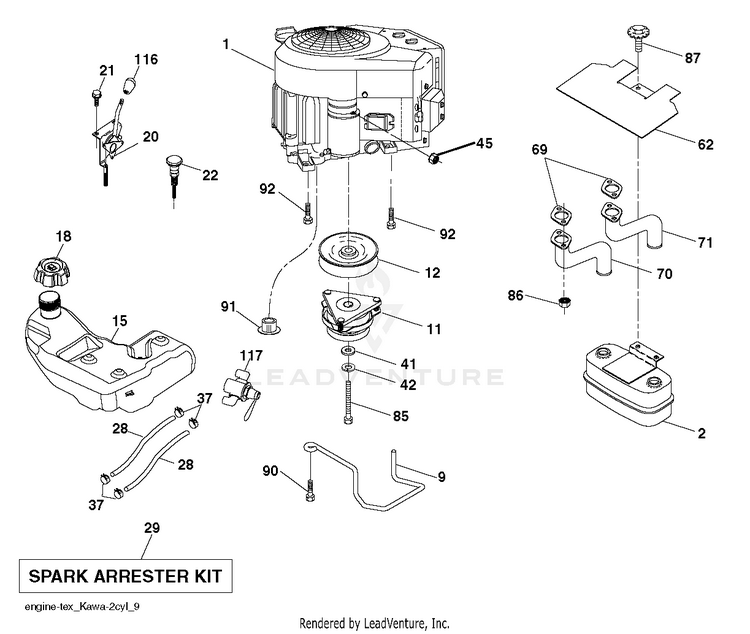

ENGINE

...
...
87
BOLT.5/16-18UNCX1.W/SEMS.BLK HUS-532198239
...
69
GASKET HUS-532178151
...
9
KEEPER BELT ENGINE HUS-532408667
...
11
CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
70
TUBE.EXHAUST.LH.FR961/FR730 LH HUS-583955601
...
116
KNOB - SHIFT HUS-539132624
...
15
TANK FUEL HUS-532422804
...
1
ENGINE KAWA MODEL NO. FR730V-AS04 HUS-000000000
...
91
BUSHING.1.375OD HUS-532187495
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
92
SCREW 3/8-16X1 HUS-817120616
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
71
TUBE.EXHAUST.RH.FR961/FR730 RH HUS-583955701
...
42
Washers HUS-596238901
...
41
WASHER HUS-532126197
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
...
90
SCREW 3/8-16X1 HUS-817000616
...
21
Screws HUS-596321701
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
12
PULLEY ENGINE HUS-532194343
...
117
VALVE FUEL RESERVE HUS-532420828
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
37
HOSE CLAMP HUS-532123487
