Husqvarna GTH26V52 LS - 96043011800 (2010-11) Riding Tractor

Model: GTH26V52 LS - 96043011800 (2010-11)

Back To Assemblies

Save Part Not Listed?
product name

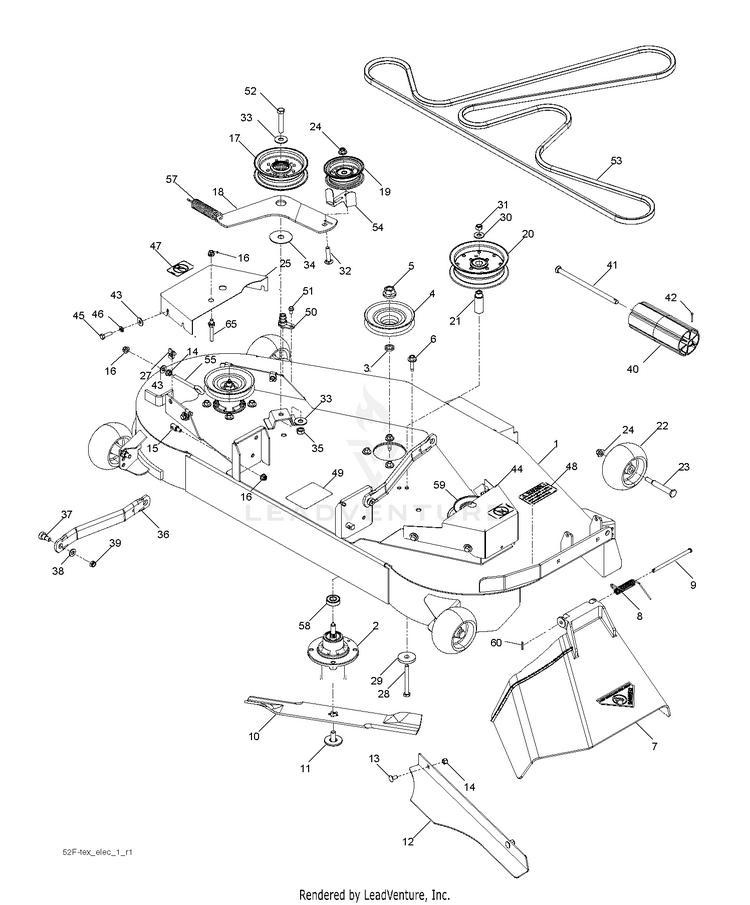

MOWER DECK / CUTTING DECK

...
...
50
PORT.WASHOUT HUS-532415598
...
61
ROD.ANTI.SWAY.48/54"K4 HUS-532404851
...
6
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
25
SHIELD.BELT.LH.ORANGE HUS-575224702
...
33
Washers HUS-596437601
...
34
WASHER HUS-532178515
...
46
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
37
Bolts HUS-596241101
...
9
Pins HUS-595935501
...
29
Washers HUS-596770301
...
21
BUSHING, IDLER HUS-575224501
...
43
GSPH HUS-596134901
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
62
GSPH HUS-596134901
...
17
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
54
SERVICE KIT GUARD HUS-531165901
...
39
Nuts HUS-596230801
...
57
Springs HUS-596645601
...
63
PIN.COTTER.5/16.BOW TI HUS-532194208
...
47
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
5
Nuts HUS-596134801
...
16
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
44
SHIELD.BELT.RH.52.ORANGE HUS-575967302
...
7
DISCHARGE CHUTE 52" HUS-539110733
...
28
HCS 3/8-16 X 3-1/2 GR5 ZD HUS-539108271
...
8
Springs HUS-596646001
...
23
Bolts HUS-596434404
...
45
Bolts HUS-596580801
...
56
GSPW Hardware HUS-596039201
...
42
PIN.COTTER.5/16.BOW TI HUS-532194208
...
11
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
30
GSPW Washers HUS-596433701
...
55
GSPW Bolts HUS-596240801
...
12
PLATE.52".CONFINEMENT.BLACK HUS-574875002
...
36
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
1
DECK.SVC.WLDT.54CC.428 HUS-591350101
...
4
PULLEY.DRIVEN.DECK.48' HUS-532174375
...
60
GSPW Retainers HUS-596029401
...
xx
DECK ASM SVC.52".FAB.ORANGE HUS-532445361
...
59
RP PULLEY, COLLECTION 48 HUS-575352901
...
41
Rods HUS-594092501
...
19
PULLEY.IDLER.FLAT HUS-532177968
...
13
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
53
BELT, 143.5" EL HUS-574845603
...
51
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
20
Pulleys HUS-589766102
...
52
Bolts HUS-596435201
...
15
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
40
NOSE ROLLER 48" HUS-532176066
...
48
DECAL, CAUTION HUS-539113224
...
27
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
58
BEARING, BALL HUS-539112050
...
31
GSPW Nuts HUS-596240901
...
38
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
32
RHSNB 3/8-16X1-3/4 HUS-539990923
...
2
MANDREL.DECK.ASSEMBLY HUS-539112170
...
18
ARM, IDLER, 52" BLK HUS-574841802
...
10
BLADE, 17.75 X 2.5 X .25 HUS-574870801
...
24
GSPW Nuts HUS-521996502
...
35
Nuts HUS-595901901
...
22
WHEEL GAGE DONUT HUS-532133957
...
14
Nuts HUS-596583702
...
49
DECAL.DECK.BELT.ROUTING.48/54 HUS-531229002
