Husqvarna GTH2654 T - 96043001000 (2006-01) Riding Tractor

Model: GTH2654 T - 96043001000 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

CHASSIS & ENCLOSURES

...
...
165
SUPPORT.TANK.REAR.W/TEX HUS-532196826
...
161
FUEL WINDOW HUS-532401801
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
217
ROD.PIVOT.HOOD HUS-532409167
...
130
Screws HUS-596321701
...
206
SKIRT.HOOD.SIDE.HUSQ.LH.GREY HUS-532401711
...
215
COVER.CHASSIS.FRONT.WE HUS-532198043
...
211
INSERT.HEX.GRILL.HUSQ. HUS-532199132
...
196
RP CONSOLE.ASM.DECKLFT.W/ HUS-532400299
...
68
Screws HUS-596030701
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
216
SCREW, 5/16-18 X 1/2 HUS-817670508
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
207
BEZEL.RH.TEX.GT.HUSQ HUS-532197198
...
202
VENT.SIDE.HOOD.HUSQ.RH.GREY HUS-532403048
...
99
ROD.BYPASS.HYDRO.0510/0610.GT HUS-532406642
...
15
LENS.LH.TEX.GT.HUSQ.CL HUS-532198907
...
212
INSERT.HEX.GRILL.HUSQ. HUS-532199133
...
210
INSERT.HEX.GRILL.HUSQ. HUS-532199131
...
203
VENT.SIDE.HOOD.HUSQ.LH.GRAY HUS-532403076
...
180
KITS.WELD.CHASSIS.195477X431 HUS-582033001
...
152
SHIELD.BROWNING.WTEXLT HUS-532196390
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
25
LENS.RH.TEX.GT.HUSQ.CL HUS-532198906
...
177
BUSHING, STEERING HUS-532195227
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
209
INSERT.HEX.GRILL.HUSQ.GREY HUS-532199130
...
5
DASH.HUSQ.UPR.ELE.SVMD HUS-532401823
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
220
Hardware HUS-596040501
...
162
Screws HUS-596134101
...
150
AIR.DUCT.HOOD.TEX.GT.HUSQ HUS-532198512
...
194
Hardware HUS-596040501
...
14
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN HUS-532442396
...
221
REFLECTOR.LH.TEX GT HU HUS-532198909
...
199
PLATE.DECK.LIFT.HUSQVARNA.GT HUS-532198259
...
18
GRILL.ASM.HUSQ.TG/CRD.W/TRIM HUS-532408607
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
208
BEZEL.LH.TEX.GT.HUSQ HUS-532197199
...
204
VENT.ASM.TORPHD.HUSQGT.LOGO.CL HUS-532416615
...
58
BRKT.SUPPORT.FNDR/TANK HUS-532194314
...
205
SKIRT.HOOD.SIDE.HUSQ.RH.GREY HUS-532401709
...
156
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
37
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ HUS-532441208

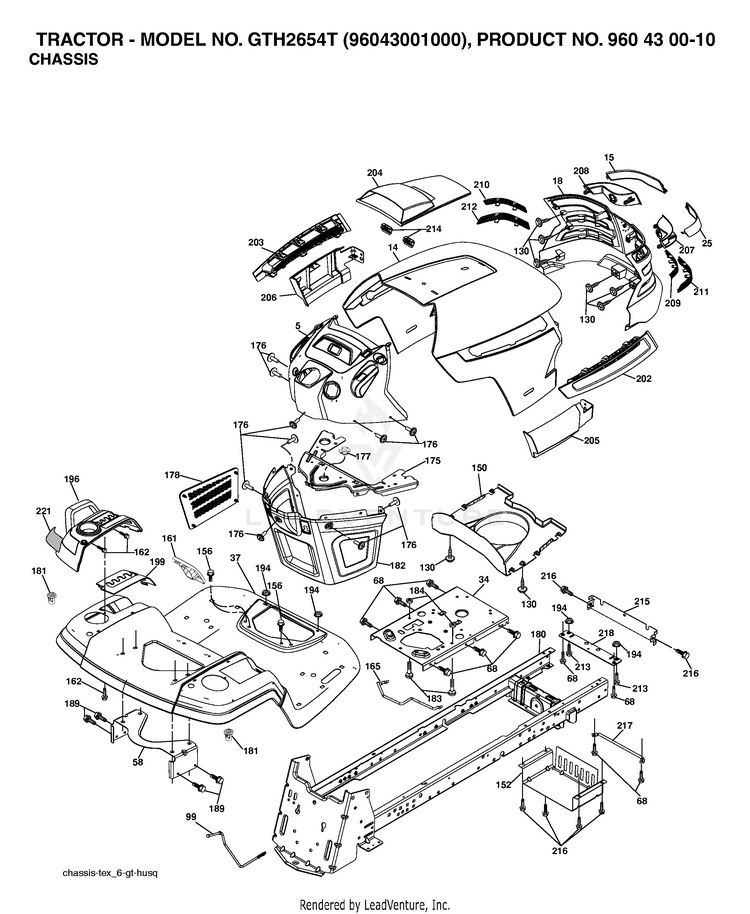

Schematic Image Zoomed
