Husqvarna GTH2654 T - 96043001000 (2006-01) Riding Tractor

Model: GTH2654 T - 96043001000 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
148
SCREW, 3/8-16X3/4 HUS-817000612
...
33
Ring E HUS-812000011
...
161
SPRING, RETURN LT HUS-532105709
...
220
REFLECTOR.RH.TEX GT HUS-532198908
...
169
BOLT.HEX.FLNG.5/16-18X3.75 HUS-583613301
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
37
WASHER HUS-532121749
...
163
ROD.PEDAL.CONTROL.0510 HUS-532199000
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
218
Screws HUS-595305701
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
116
GSPW Nuts HUS-596135701
...
35
Rods HUS-583864502
...
160
GSPW Retainers HUS-596029401
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
171
BOLT CARRIAGE HUS-872110618
...
70
CONSOLE.ASM.RH.GT.FC.HUSQ HUS-532439661
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
207
Latch HUS-587031402
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
2
KEY.SQUARE.187X2.500 HUS-532186211
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
96
Screws HUS-595305701
...
162
SPACER.TRANSAXLE.1" HUS-580457401
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
219
SPACER.FENDER HUS-532195780
...
183
SPACER.SPLIT.800X.350 HUS-532400424
...
211
BEARING.NYLON HUS-532120183
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
205
WASHER HUS-532121748
...
166
NUT.PUSH.625 HUS-532429164
...
80
BRKT.STRP.TRQ.LT.HYD.C HUS-532400507
...
143
Screws HUS-596030701
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
197
BRKT.ANIT-ROTATION.CLUTCH HUS-532199769
...
185
Bolts HUS-596435101
...
9
Bolts HUS-596218701
...
159
Pins HUS-596029501
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
56
V-BELT. HUS-532140218
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532197860
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
7
SERVICE.KIT HUB ASM HUB.ASM.WH HUS-531170101
...
42
PAD, FOOT PEDAL HUS-510089501
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
209
Rods HUS-596869801
...
196
SCREW 3/8-16X1 HUS-817000616
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
208
Gears HUS-596564101
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
49
Bolts HUS-596136201
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
74
Screws HUS-596134101
...
29
Rods HUS-583864502
...
187
Washers HUS-596135501
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
186
SPACER.RETAINER HUS-532194321

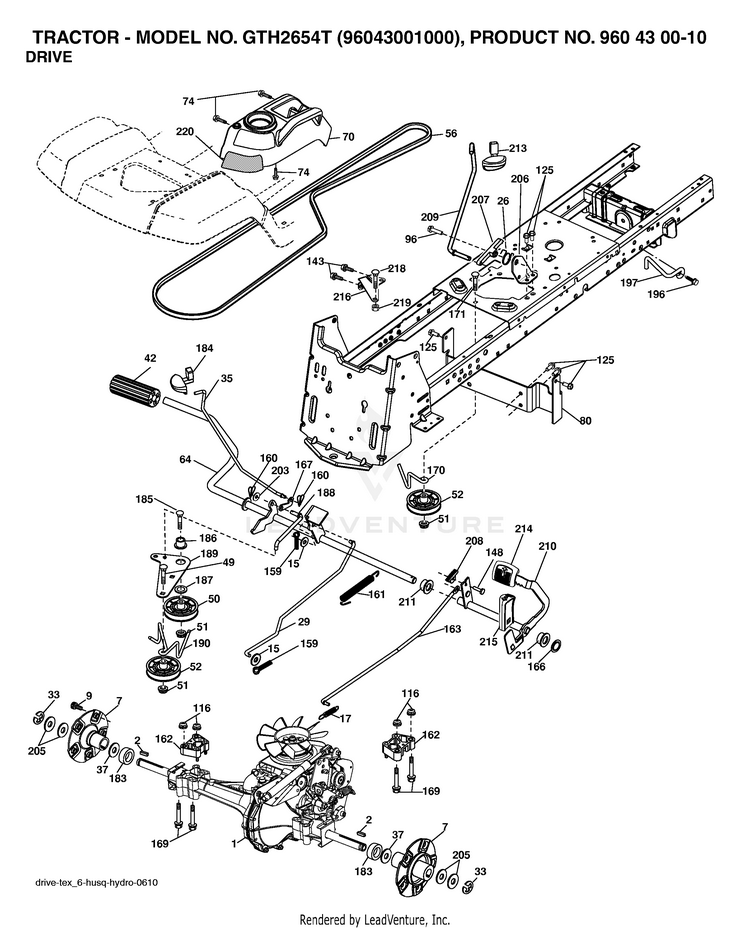

Schematic Image Zoomed
