Husqvarna GTH2654 T - 96043001000 (2006-01) Riding Tractor

Model: GTH2654 T - 96043001000 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

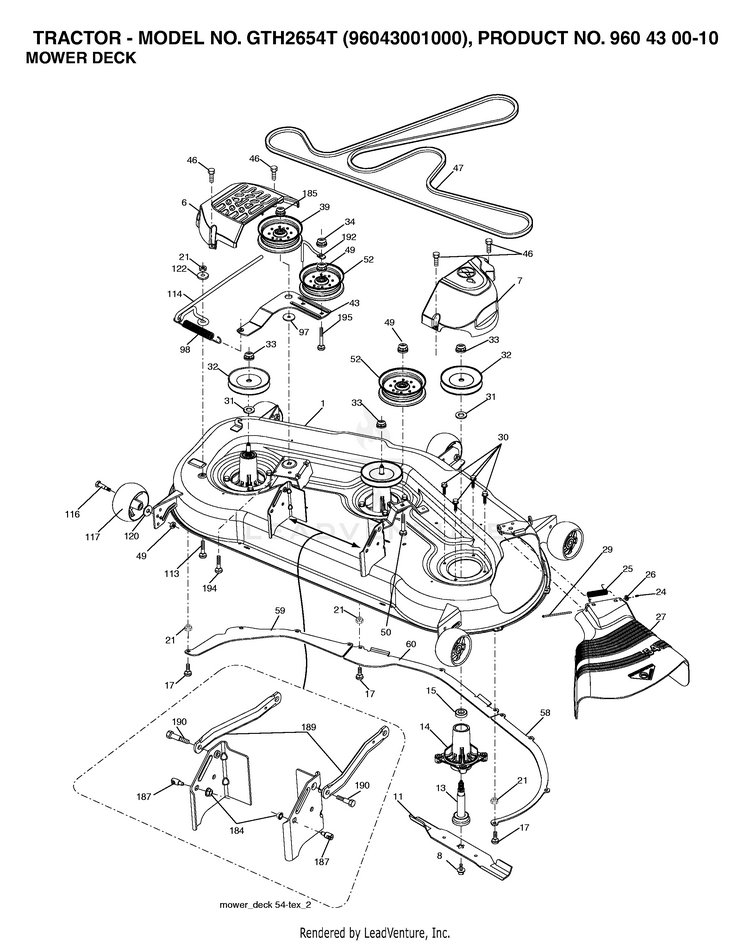

MOWER DECK / CUTTING DECK

...
...
98
SPRING BELT TENSIONER BLACK HUS-547878302
...
11
54" HIGH LIFT BLADE HUS-594892901
...
39
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
27
DEFLECTOR.BLACK.54" HUS-532187257
...
194
BOLT.HEX.WASHER.HEAD.7/16-24X HUS-874490736
...
185
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
47
BELT.DECK.DRIVE.BELT.54 HUS-587686701
...
32
PULLEY MANDREL HUS-532173436
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
187
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
7
COVER.MANDREL.RH.54.20 HUS-532197181
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
43
SERVICE KIT ARM.IDLER HUS-531169301
...
114
HARNESS.IGN.PLM.CBL.CL.AM/HM HUS-532187576
...
13
MANDRELS HUS-597023501
...
184
GSPW Nuts HUS-596135701
...
195
BOLT HUS-872110622
...
24
CAP-SLEEVE LT HUS-532105304
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
6
COVER.MANDREL.LH.54"20 HUS-532196066
...
20
SERVICE KIT BAFFLE BAFFLE HUS-531167501
...
97
WASHER HUS-532178515
...
33
Nuts HUS-596134801
...
15
BEARING HUS-532110485
...
34
Nuts HUS-596322601
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
60
SERVICE KIT BAFFLE BAFFLE CENT HUS-531168801
...
52
PULLEY.IDLER.2006 HUS-532196106
...
29
Rods HUS-595297001
...
26
NUT PUSH M HUS-532110452
...
113
Bolts HUS-596435701
...
122
BUSHING.RELIEF.TENSION HUS-532187557
...
- -
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
190
BOLT.SHOULDER HUS-532196539
...
59
SERVICE KIT BAFFLE.LEFT.54" BA HUS-531168701
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
58
SERVICE KIT BAFFLE.RIGHT.54" HUS-531168601
...
- -
54" MULCH BLADE HUS-532187255
...
120
GSPH HUS-596134901
...
192
KEEPER.BELT.IDLER.54"T HUS-532198468
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
22
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
50
Bolts HUS-596136301
...
- -
54" MULCH BLADE HUS-532187255
...
17
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
- -
DECK.SVC.54".5GWB.GREY HUS-532199298
...
189
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
116
Bolts HUS-596434404
...
25
TORSION SPRING HUS-539107609
...
21
Hardware HUS-596040501
