Husqvarna GTH2654 - 96023000600 (2005-03) Riding Tractor

Model: GTH2654 - 96023000600 (2005-03)

Back To Assemblies

Save Part Not Listed?
product name

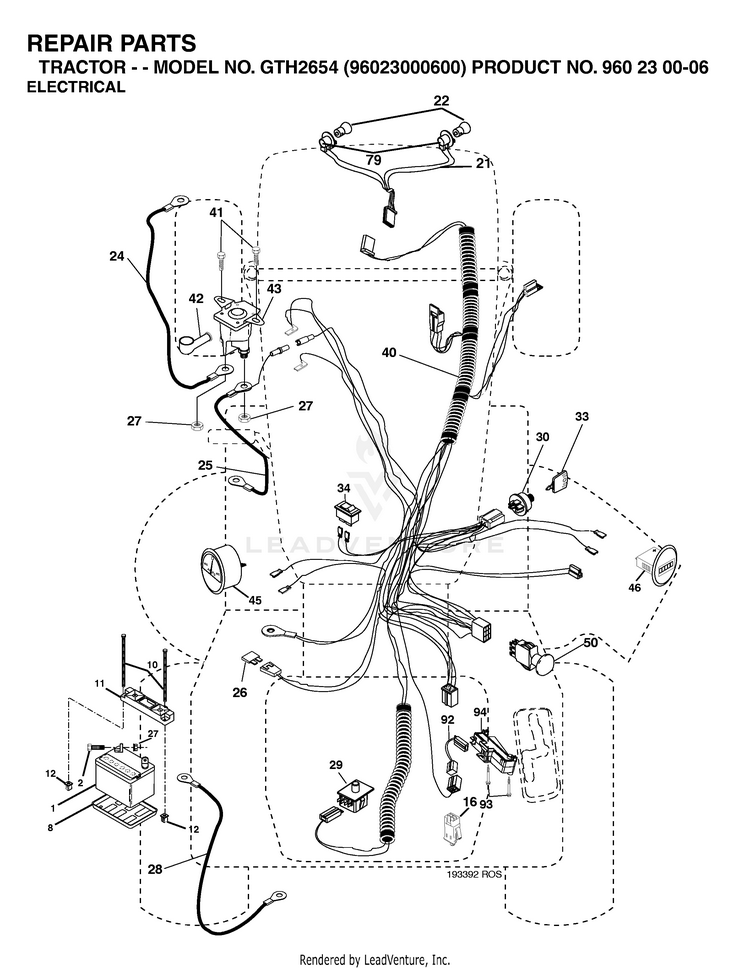

ELECTRICAL

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
28
CABLE, GROUND HUS-532170697
...
22
LIGHTBULB HUS-532004152
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
93
Bolts HUS-596039601
...
45
RP AMMETER.ROUND.SILVER.DELTA HUS-532177500
...
94
MODULE.REVERSE.ROS HUS-532191834
...
26
FUSE HYT HUS-532108824
...
46
RP HOURMETER SNAP-IN HUS-532177501
...
43
KIT SOLENOID .95 HUS-532146154
...
34
SWITCH LT HUS-532110712
...
42
COVER.TERMINAL.RED HUS-532154336
...
12
BATTERY TIEDOWN KIT HUS-532150177
...
41
Screws HUS-596437001
...
8
TRAY.BATTERY HUS-532007603
...
92
HARNESS.PIGTAIL.REVERSE.SWITCH HUS-532193465
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
21
HARNESS.W/LIGHT SOCKET HUS-532175688
...
29
SWITCH.SEAT.DP W/RAMPS HUS-532192749
...
79
BULB HOLDER ASM. HUS-532175242
...
40
HARNESS. IGN.VGT.RHD HUS-532193392
...
24
BATTERY CABLE HUS-532004799
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
25
CABLE, BATTERY HUS-532146149
...
11
BATTERY HOLDDOWN FRONT MOUNT HUS-532150109
...
10
BATTERY TIEDOWN KIT HUS-532150177
...
33
KEY MLD GEN DELTA HUS-532140401
