Husqvarna GTH2550 - 954567109 (2001-05) Riding Tractor

Model: GTH2550 - 954567109 (2001-05)

Back To Assemblies

Save Part Not Listed?
product name

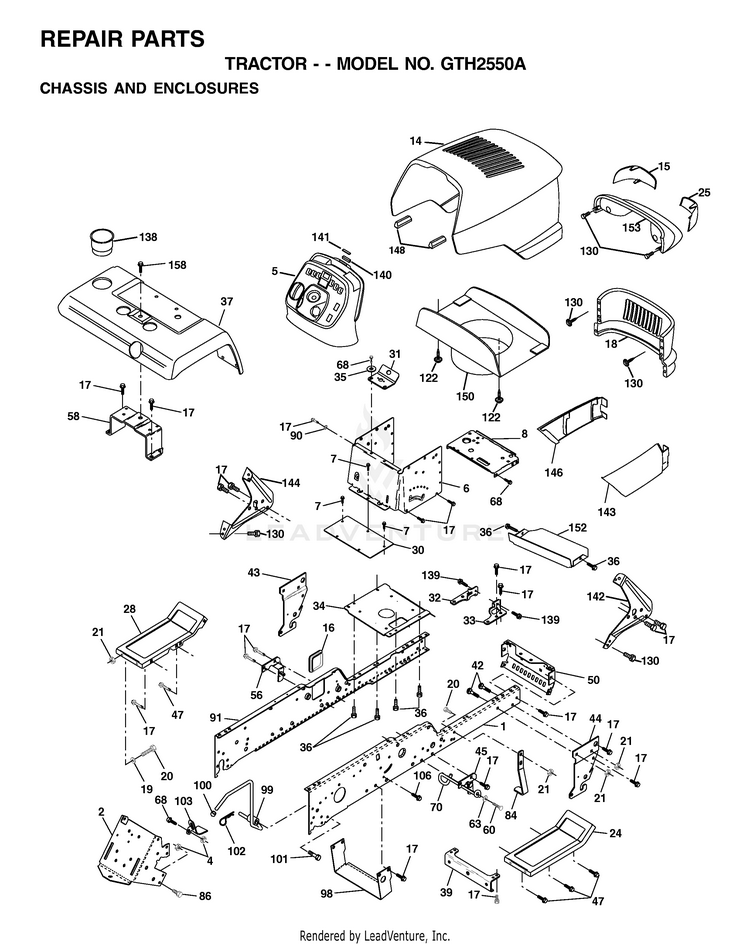

CHASSIS & ENCLOSURES

...
...
60
SCREW.3/8-16 HUS-817060620
...
148
EXTRUSION BUMPER (3 2) (2 2) HUS-532164655
...
142
BRACKET DASH STEALTH(R) HUS-532161897
...
90
Washers HUS-596238701
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
2
DRAWBAR, GT HUS-532175282
...
63
Washers HUS-596140201
...
35
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
58
BRACKET ASM., FENDER HUS-532183569
...
44
FRONT SUSPENSION BRKT RH HUS-532136940
...
7
Screws HUS-596437001
...
146
SKIRT GRILLE LH HUS-532177587
...
150
DUCT.HEAT.HOOD.STEALTH.GT HUS-532190309
...
99
ROD ASMBLY BYPASS HUS-532140871
...
33
BRACKET. HUS-532161326
...
43
FRONT SUSPENSION BRKT LH HUS-532136939
...
20
Bolts HUS-596564401
...
21
Nuts HUS-596322601
...
68
Screws HUS-596030701
...
32
BRACKET HUS-532161327
...
16
COVER ACCESS HUS-532121794
...
34
PLATE ASM ENG CHASSIS HUS-532177018
...
15
KIT.HARNESS/LIGHT ASM DUAL HUS-583125201
...
6
DASH VGT, LOWER HUS-532157882
...
139
BOLT, SHOULDER 5/16-18 HUS-532171873
...
18
GRILLE.STEALTH P/L.YTGT.GREY HUS-532182873
...
39
BRACKET AXLE, FRONT HUS-532175278
...
19
GSPH HUS-596134901
...
101
BOLT HUS-599972501
...
8
SUPPORT, BATTERY HUS-532145166
...
130
SCREW.HI-LO#13-16X5/8 HUS-532189747
...
103
BRACKET LOCK BYPASS HUS-532142273
...
100
PLUNGER CAP HUS-532071673
...
17
SCREW, 3/8-16X3/4 HUS-817000612
...
102
RETAINER M HUS-532004497
...
158
SCREW 3/8-16X1/2 HUS-817670608
...
25
KIT.HARNESS/LIGHT ASM DUAL HUS-583125201
...
24
FOOTREST LT/YT/GT RH HUS-532145243
...
47
Bolts HUS-596564001
...
86
Bolts HUS-596238601
...
122
SCREW.HEX.WS.HD.8-18 X 7/8 HUS-532161464
...
14
HOOD.ASM.PNT HUS-532194976
...
56
BRACKET ASM, SUSP CHASSIS HUS-532154914
...
28
FOOT REST LH HUS-532147203
...
31
BRACKET SUPT 1-PC VGT STEERING HUS-532161419
...
4
Nut, Lock Hex 7/16 Unc HUS-873800700
...
143
SKIRT GRILLE RH HUS-532177586
...
84
MOWER STOP HUS-532142992
...
30
SADDLE.HYDRO.95 HUS-532145052
...
50
BRACKET, CHASSIS FRONT HUS-532175476
...
42
Bolts HUS-596728201
...
5
DASH.STEALTH YTGT.2CYL.BLK 428 HUS-583716201
...
141
STRIKER PLATE HUS-532163805
...
106
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
140
MAGNET STEALTH HUS-532163806
...
152
BROWNING SHIELD HUS-532177956
...
144
BRACKET DASH STEALTH LH HUS-532161900
...
45
BRACKET SUSP RH HUS-532154913
