Husqvarna GTH2550 - 954567109 (2001-05) Riding Tractor

Model: GTH2550 - 954567109 (2001-05)

Back To Assemblies

Save Part Not Listed?
product name

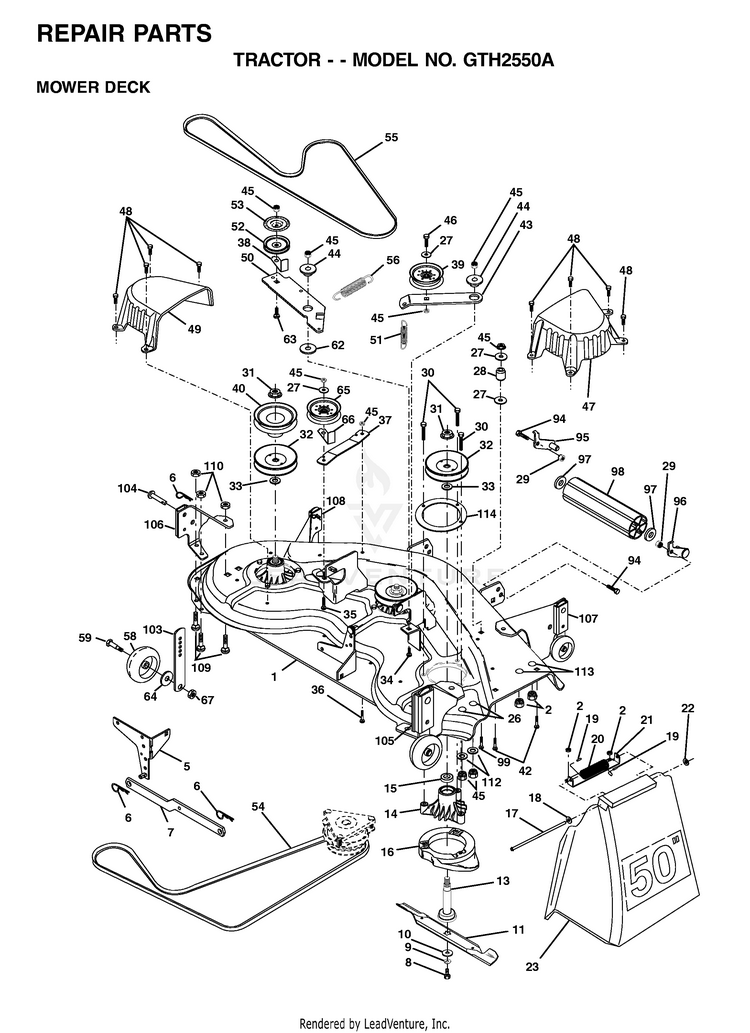

MOWER DECK / CUTTING DECK

...
...
104
RIVET.PIN.HEAD.YELLOW. HUS-532156941
...
62
WASHER HUS-532178515
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
66
KEEPER BELT IDLER PLATED HUS-532173979
...
- -
KIT.MANDREL.ASM.44"/46/50"SRVC HUS-532143651
...
103
BAR.ADJUST.WHEEL.ANTI.SCALP.BL HUS-532155986
...
38
Keepers HUS-597024901
...
55
BELT V SECONDARY HUS-532144959
...
28
IDLER SPRING SPACER HUS-532132823
...
63
GSPW Bolts HUS-596136101
...
36
Bolts HUS-596728201
...
43
ARM.IDLER.SEC.44" HUS-532136460
...
58
WHEEL GAGE DONUT HUS-532133957
...
112
BUSHING HUS-734117771
...
49
COVER.MANDREL.LH.44" HUS-532136574
...
31
KIT.NUT.FLANGE HUS-532139729
...
59
Bolts HUS-596434404
...
95
BRACKET ASM, ROLLER (L) HUS-532175746
...
5
BRACKET SWAY BAR HUS-532138457
...
50
ARM.IDLER.PRIMARY HUS-532137272
...
54
V-BELT.PRMRY 46/50 VENT.BLK BK HUS-532139573
...
11
BLADE.50".HI-LIFT HUS-532137380
...
6
RETAINER-SPRNG RB HUS-532124670
...
17
ROD-HINGE T HUS-532106735
...
26
Bolts HUS-596136001
...
99
Bolts HUS-596136201
...
39
CLG HUS-597025001
...
51
SPRING.SEC.44"VEN HUS-532137273
...
18
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
8
BLADE BOLT HUS-532850857
...
29
Hardware HUS-596040501
...
64
GSPH HUS-596134901
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
10
WASHER.BLADE HUS-532140296
...
2
Hardware HUS-596040501
...
7
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
97
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
34
Bolts HUS-595901101
...
56
SPRING HUS-532138687
...
14
HOUSING.MANDREL.44/46" VENT HUS-532137152
...
35
Bolts HUS-596136301
...
96
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
13
SHAFT.ASM.W/BEARING HUS-532137553
...
47
COVER MANDRELL HUS-532137200
...
42
GSPW Bolts HUS-595901601
...
46
BOLT HUS-582740701
...
94
Bolts HUS-596580801
...
22
NUT PUSH M HUS-532110452
...
32
PULLEY MANDREL HUS-532173436
...
113
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
20
SPRING TORSION HUS-532123713
...
98
NOSE ROLLER HUS-532132264
...
15
BEARING HUS-532110485
...
53
SHIELD IDLER HUS-532137789
...
44
SPACER.RETAINER.MOWER HUS-532165723
...
45
Nuts HUS-596322601
...
33
WASHER.SPACER.MANDREL HUS-532187690
...
21
SERVICE KIT BRACKET BRACKET HUS-531155201
...
48
SCREW.1/4-20X5/8 HUS-532137729
...
67
Nuts HUS-596322601
...
9
Washers HUS-596238701
...
37
STIFFENER ARM HUS-532137166
...
19
CAP-SLEEVE LT HUS-532105304
...
27
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
52
PULLEY IDLER HUS-532139245
