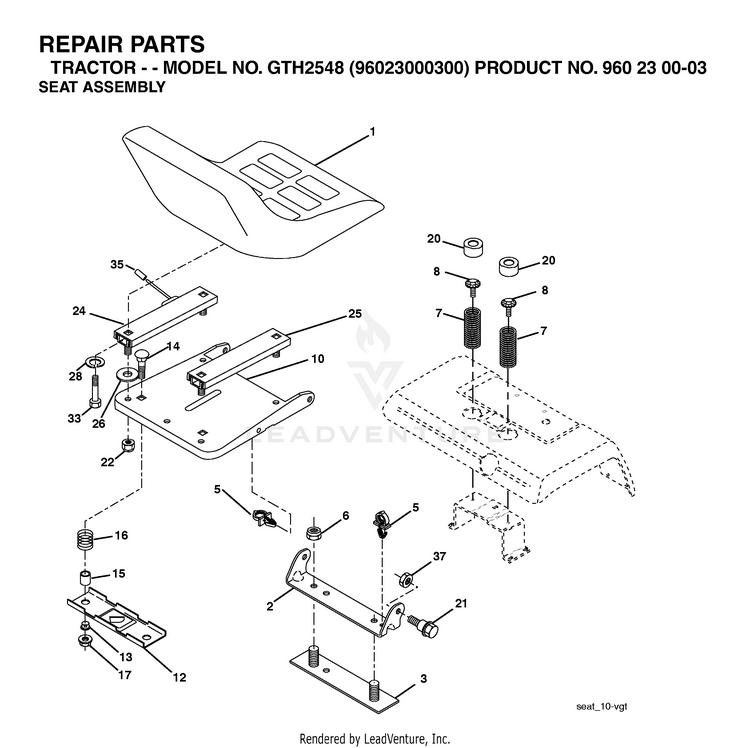

Husqvarna GTH2548 - 96023000300 (2005-05) Riding Tractor

Model: GTH2548 - 96023000300 (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

SEAT

...
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
28
WASHER HUS-810010500
...
6
Nuts HUS-596322601
...
16
SPRING COMPRESSED HUS-532123740
...
33
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
26
Washers HUS-596039901
...
35
CAP.VINYL.BLK.SERVICE HUS-583670601
...
25
TRACK SLIDE, SEAT(R) HUS-532177947
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
20
CAP SPRING HUS-532124238
...
5
PUSH CLIP HUS-532145006
...
24
TRACK SLIDE, SEAT(L) HUS-532177946
...
22
Hardware HUS-596040501
...
3
STRAP HUS-532140675
...
13
BUSHING HUS-532121248
...
15
SPACER SPLIT HUS-532121249
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
37
Hardware HUS-596040501
...
14
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
