Husqvarna GTH225 - 954140103A (1999-10) Riding Tractor

Model: GTH225 - 954140103A (1999-10)

Back To Assemblies

Save Part Not Listed?
product name

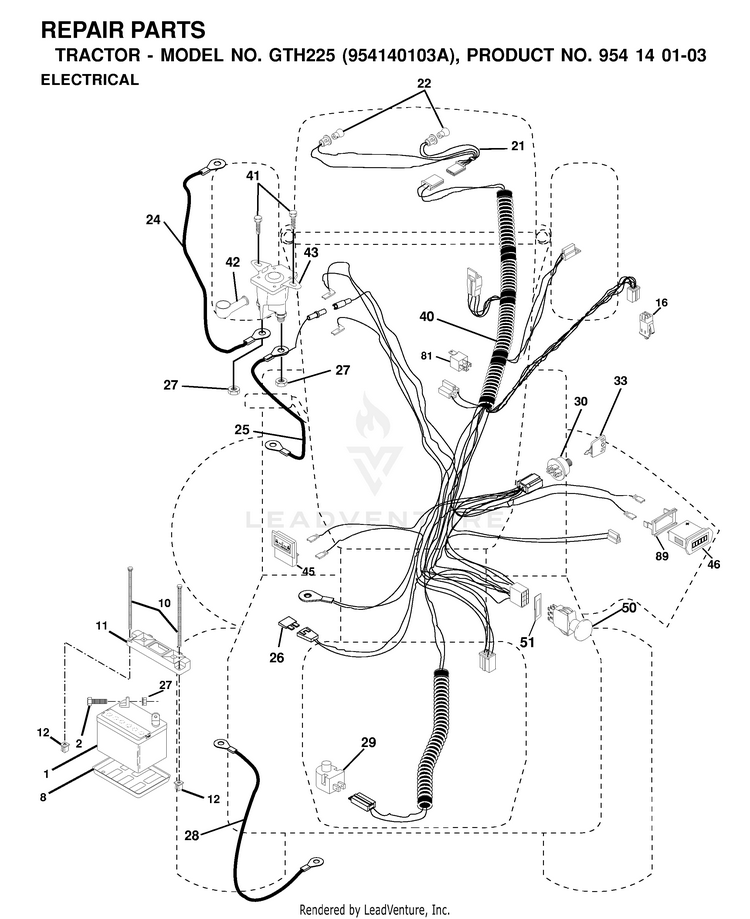

ELECTRICAL

...
...
10
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
33
KEY MLD GEN DELTA HUS-532140401
...
89
BRACKET SNAP-IN HOURMETER HUS-532169639
...
43
KIT SOLENOID .95 HUS-532146154
...
45
AMMETER HUS-532122822
...
25
CABLE, BATTERY HUS-532146686
...
46
KIT.HOURMETER.SNAP-IN HUS-532169642
...
29
PLUNGER SWITCH (COLOR:OLIVE) HUS-532160784
...
28
CABLE, GROUND HUS-532170697
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
21
HARNESS ASM, LIGHT W/4152J HUS-532166182
...
41
Screws HUS-596437001
...
12
BATTERY TIEDOWN KIT HUS-532150177
...
22
LIGHTBULB HUS-532004152
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
81
RELAY.ASSY.T HUS-532109748
...
42
COVER.TERMINAL.RED HUS-532154336
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
11
BATTERY HOLDDOWN FRONT MOUNT HUS-532150109
...
51
FRAME RETAINING RING HUS-532140405
...
8
TRAY.BATTERY HUS-532007603
...
30
IGNITION SWITCH HUS-532175566
...
40
HARNESS, IGNITION HUS-532170238
...
24
CABLE, STARTER HUS-532004014
...
26
FUSE HYT HUS-532108824
