Husqvarna GTH220 - 954830167A (1995-08) Riding Tractor

Model: GTH220 - 954830167A (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

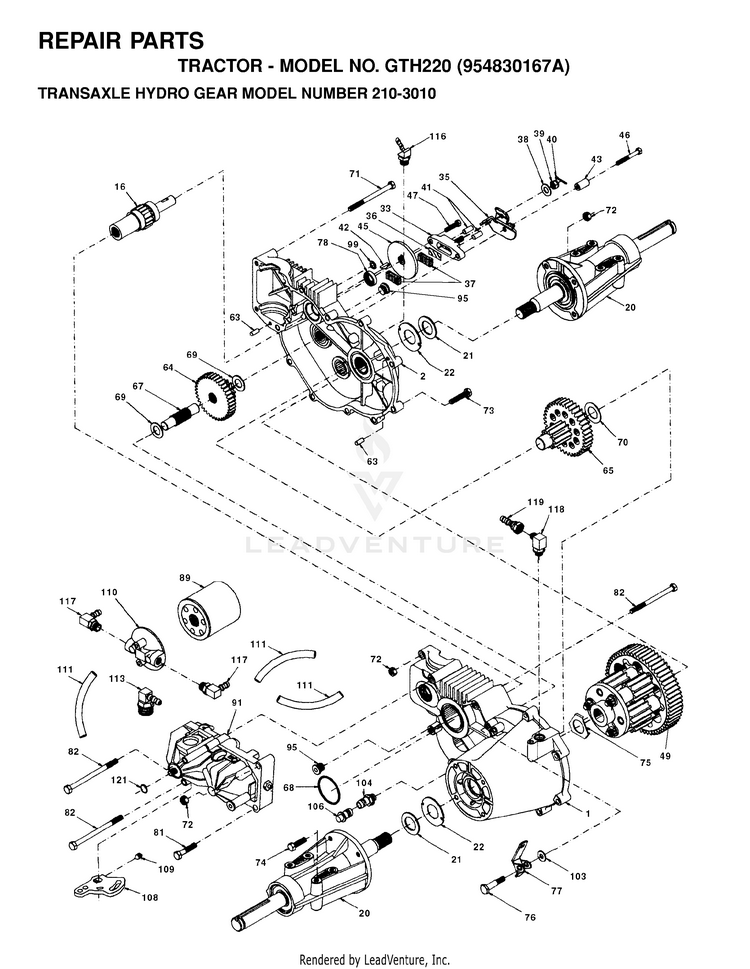

TRANSMISSION

...
...
108
ARM CONTROL 45007 HUS-532142919
...
106
O-RING KIT 70110 HUS-532142918
...
74
HEX CAP SCREW, 5/16-18X1 HUS-532142905
...
104
VENT CAP 70109 HUS-532142578
...
119
FITTING 90 DEG #6 FEMALE SAE HUS-532142927
...
41
PIN.BRAKE.31X.73.PLATED.44127 HUS-584287501
...
113
FITTING.9/16 SAE.50210. HUS-532142923
...
121
RING RETAINING 2003016 HUS-532142928
...
38
WASHER .34X.88X.06.44130 HUS-532142884
...
111
HOSE.50208.HYDRO HUS-532142922
...
35
BRACE ARM 50214 HUS-532142880
...
77
FREE WHEEL ACTUATING ARM 44786 HUS-532142908
...
69
WASHER.44795. HUS-532142900
...
78
SEAL OIL 70719 HUS-532142909
...
2
ASSEMBLY, RH HOUSING HUS-532142875
...
71
BOLT HXHD 44827 HUS-532142902
...
75
WASHER.DIFFERENTIAL.44880.HYD HUS-532142906
...
47
SCREW 1/4-20X1 PATCH 44433 HUS-584281501
...
73
TORX.SCREW. 50868 HUS-532161159
...
39
CASTLE NUT HUS-532142885
...
64
BRAKE SHAFT KIT #62877 HUS-532142876
...
37
BRAKE PUCK (44132) HUS-532142883
...
99
WASHER HUS-532142915
...
49
DIFFERENTIAL ASSEMBLY HUS-532142893
...
45
BRAKE.DISC.44090. HUS-532142890
...
118
FITTING 90 DEG #6 FLARE MALE HUS-532142926
...
1
HOUSING.TRANSAXLE.70536 HUS-532142874
...
109
SCREW.SET.50018 HUS-532142920
...
72
HEX LOCK NUT, 5/16-18 HUS-532142903
...
42
KEY.HIPRO.44143 HUS-532142888
...
36
PLATE.PUCK.44134 HUS-584289601
...
110
FILTER HEAD 50207 HYDRO HUS-532142921
...
116
FITTING.9/16 SAE.50213. HUS-532142924
...
43
SPACER 50259 HUS-532142889
...
117
FITTING 50249 HYDRO HUS-532142925
...
46
BOLT 44276 HUS-532142891
...
20
AXLE.MOUNTING.HORN.70087 HUS-532142877
...
89
FILTER.SPIN.51563 HUS-532182642
...
40
PIN.COTTER.44101. HUS-532142886
...
63
DOWEL.PIN.44757.HYDRO HUS-532142894
...
91
HYDRO PUMP HUS-532144576
...
70
WASHER.44794.HYDRO HUS-532142901
...
68
O-RING #44781 HUS-532142899
...
16
BRAKE SHAFT KIT #62877 HUS-532142876
...
65
PINION DR FINAL 70051 HUS-532142897
...
95
PLUG.9005110-5600 HUS-532142914
...
103
WASHER 50169 HUS-532142916
...
67
JACKSHAFT.44779.HYDRO HUS-532142898
...
82
BOLT 5/16 44820 HUS-532142911
...
21
WASHER 44805 HUS-532142878
...
81
BOLT HUS-532142910
...
33
YOKE.BRAKE.62589 HUS-584289701
...
22
WASHER HUS-532142879
...
76
BOLT.SHOULDER.44785. HUS-532142907
