product name

Husqvarna GTH220 - 954140012D (1998-07) Riding Tractor

Model: GTH220 - 954140012D (1998-07)

Back To Assemblies

Save Part Not Listed?
product name

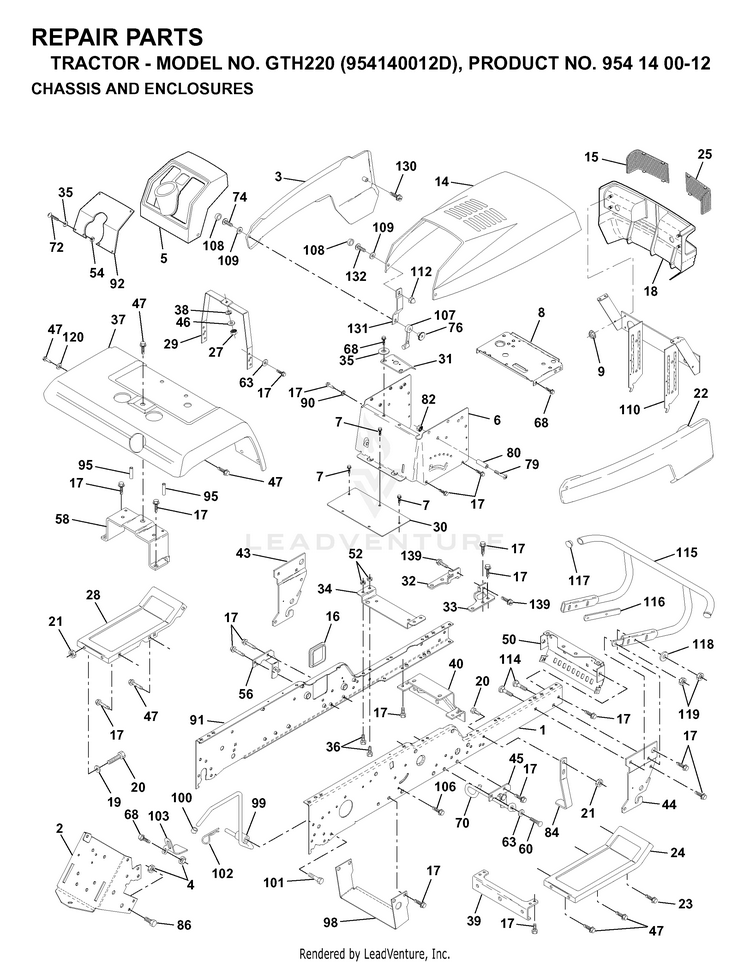

CHASSIS & ENCLOSURES

...
...
106
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
46
Washers HUS-596204201
...
3
PANEL/LH HUS-532150189
...
37
FENDER YT/GT HUS-532167270
...
92
DASH PLATE HUS-532156283
...
99
ROD ASMBLY BYPASS HUS-532140871
...
18
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
28
FOOT REST LH HUS-532147203
...
23
SCREW 3/8-16X1 HUS-817000616
...
24
FOOTREST LT/YT/GT RH HUS-532145243
...
74
SCREW.PNHD.10-24 HUS-871191008
...
27
NUT.HEX..25-20.UNC HUS-532050675
...
60
BOLT HUS-874760620
...
79
SCREW.PAN.HEAD HUS-874981024
...
54
Hardware HUS-596040501
...
107
LATCH.HOOD. HUS-532109808
...
116
BUMPER BRACKET HUS-532170310
...
43
FRONT SUSPENSION BRKT LH HUS-532136939
...
32
BRACKET HUS-532161327
...
101
BOLT HUS-599972501
...
52
Hardware HUS-596040501
...
118
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
44
FRONT SUSPENSION BRKT RH HUS-532136940
...
109
WASHER LT HUS-532110357
...
84
MOWER STOP HUS-532142992
...
5
DASH HUS-532140452
...
112
NUT 10-24 ACORN ZD HUS-539108086
...
34
ENGINE SUPPORT BRKT HUS-532142131
...
68
Screws HUS-596030701
...
35
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
38
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
95
NUT-PUSH YT HUS-532105531
...
108
SNAP CAP LT HUS-532110356
...
9
PAL NUT LT HUS-532108067
...
7
Screws HUS-596437001
...
91
RAIL, FRAME LH HUS-532156586
...
130
Screw, SLTD Hex Hd. W/Pl Washer HUS-817521312
...
102
RETAINER M HUS-532004497
...
2
DRAWBAR, GT HUS-532175282
...
47
Bolts HUS-596564001
...
90
Washers HUS-596238701
...
117
PLUG PLASTIC HUS-532143679
...
21
Nuts HUS-596322601
...
36
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
76
Nuts HUS-596987401
...
33
BRACKET. HUS-532161326
...
25
LENS.RH.HUSQVARNA.YTGT.CL HUS-532157069
...
30
SADDLE.HYDRO.95 HUS-532145052
...
31
BRACKET SUPT 1-PC VGT STEERING HUS-532161419
...
120
Washers HUS-596140201
...
14
HOOD.HUSQVARNA.ORANGE HUS-532125454
...
103
BRACKET LOCK BYPASS HUS-532142273
...
6
DASH VGT, LOWER HUS-532157882
...
45
BRACKET SUSP RH HUS-532154913
...
50
BRACKET, CHASSIS FRONT HUS-532152728
...
40
BRACKET, SUPPORT AXLE/ENGINE HUS-532156111
...
98
BRKT, CHASSIS SKID HUS-532175847
...
22
RH PANEL HUS-532150190
...
86
Bolts HUS-596238601
...
39
FRONT AXLE BRACKET HUS-532136961
...
20
Bolts HUS-596564401
...
114
Bolts HUS-595901101
...
15
LENS LH HUS-532157068
...
8
SUPPORT, BATTERY HUS-532145166
...
100
PLUNGER CAP HUS-532071673
...
110
PIVOT ASM GRL/HD HUS-532150200
...
82
NUT HUS-873271000
...
56
BRACKET ASM, SUSP CHASSIS HUS-532154914
...
70
KEEPER, BELT VGT GROUND HUS-532177679
...
131
BRACKET.SUPPORT.HOOD/PANEL.NLA HUS-532150195
...
119
Nuts HUS-596322601
...
- -
PLUG-DASH T HUS-532125085
...
19
GSPH HUS-596134901
...
72
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 HUS-874180512
...
1
KIT.RAIL.CHASS.RH.GT HUS-532180375
...
80
SPACER LT HUS-532007206
...
17
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
63
Washers HUS-596140201
...
29
DASH SUPT YP HUS-532145205
...
16
COVER ACCESS HUS-532121794
...
132
SCREW 10-24X3/8 HUS-874291006
...
4
Nut, Lock Hex 7/16 Unc HUS-873800700
...
58
BRACKET ASM., FENDER HUS-532183569
