Husqvarna GTH220 - 954140012A (1997-01) Riding Tractor

Model: GTH220 - 954140012A (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

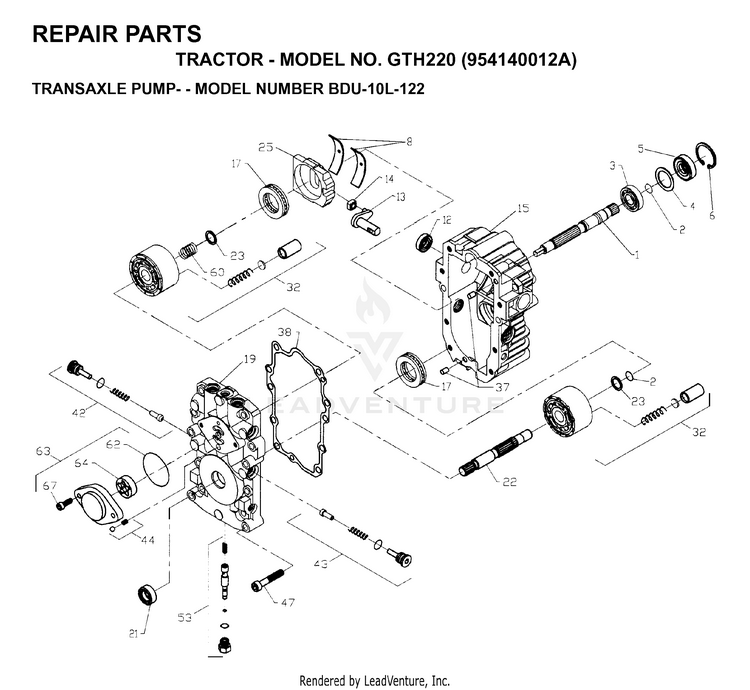

TRANSMISSION

...
...
6
RETAINING PIN HUS-532122699
...
8
CRADLE BEARING HUS-532122767
...
23
WASHER HUS-532142978
...
21
LIP SEAL 9008000-0127 HUS-532122722
...
12
SEAL LIP HUS-532122717
...
3
BALL BEARING 2003043 HUS-532122745
...
53
KIT,BYPASS VALVE(2513011) HUS-532127153
...
25
SWASHPLATE,VARIAB HUS-532127148
...
37
PIN HUS-532122786
...
13
TRUNION ARM HUS-532122748
...
14
GUIDE 2000015 HYD HUS-532122749
...
17
BEARING, THRUST 50551 HUS-532150771
...
60
SPRING 2003014 HUS-532142977
...
38
GASKET 2003060 HUS-532122718
...
- -
PUMP.BDU-10L-122 HUS-532153769
...
47
SCREW HUS-532122752
...
62
O-RING.HYDRO GEAR.9004101-1340 HUS-532144581
...
32
KIT CYLINDER #70331 HUS-532169898
...
5
SEAL.LIP.H-G.(9008000-0128) HUS-532142932
