Husqvarna GTH200 - 954140046D (1999-05) Riding Tractor

Model: GTH200 - 954140046D (1999-05)

Back To Assemblies

Save Part Not Listed?
product name

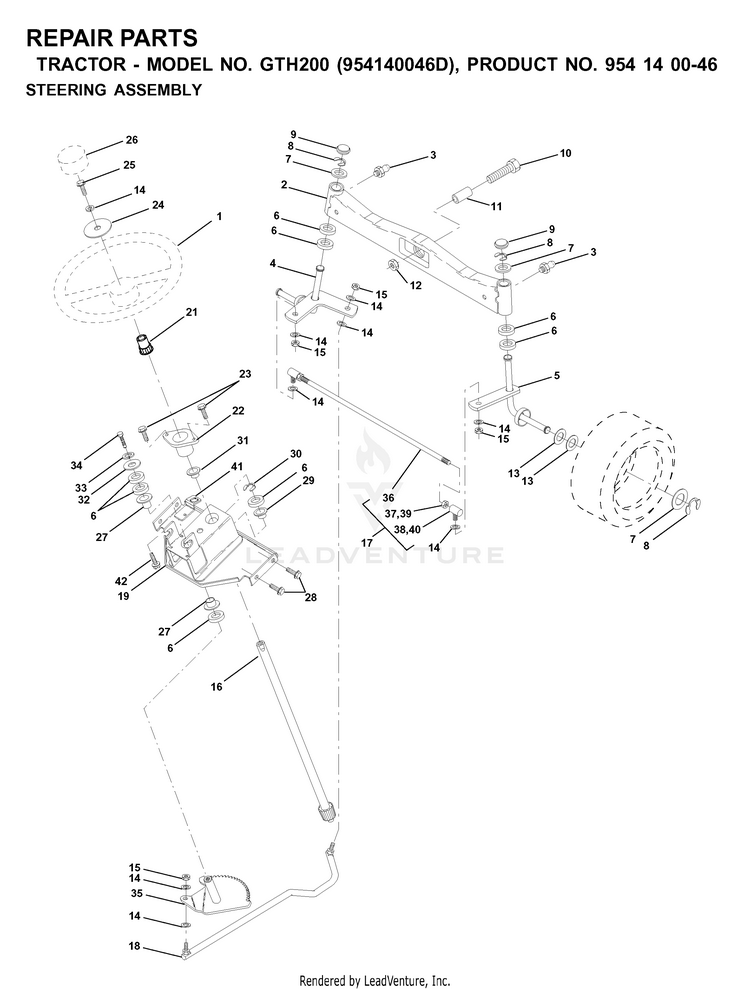

STEERING

...
...
22
KIT.BUSHING.STEERING. HUS-532155108
...
9
CAP.SPINDLE.BLACK HUS-532121232
...
42
Screws HUS-596030701
...
16
SHAFT ASM, STEERING HUS-532145103
...
32
WASHER HUS-819111610
...
26
INSERT.CAP.STRG.WH (3 2) (L B) HUS-532172092
...
34
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
17
ROD.TIE.NON-ADJUSTABLE HUS-532186799
...
13
WASHER HUS-532121749
...
19
SUPPORT ASM., STEERING VGT HUS-532156011
...
21
STEERING WHEEL ADAPTOR HUS-532159945
...
8
RING CLIP HUS-812000029
...
15
NUT HUS-873610600
...
29
BEARING-FLANGE GT HUS-532104239
...
38
JOINT.RH HUS-532121160
...
3
FITTING.GREASE.TAPERED HUS-532183226
...
33
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
11
TUBE, PIVOT AXLE HUS-532136518
...
39
NUT HUS-873700600
...
36
ROD.TIE.NON-ADJUSTABLE HUS-532186799
...
7
WASHER HUS-532121748
...
1
STEERING WHEEL HUS-532166627
...
37
NUT HUS-873360600
...
27
BEARING.STEERING.COLUMN HUS-532003366
...
40
JOINT.LH HUS-532109851
...
4
SPINDLE ASSY LH HUS-532161849
...
6
WASHER THRUST HUS-532006266
...
12
LOCKNUT M HUS-583612401
...
31
BUSHING.NYLINER. HUS-532138136
...
35
SERVICE KIT GEAR.ASM.SECT HUS-531165701
...
30
Ring, Klip Truarc #5304-75 HUS-812000034
...
18
DRAGLINK, BALL JOINT (3SPG1401 HUS-532175572
...
5
SPINDLE ASM RH HUS-532161848
...
23
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
41
BRACKET INTERLOCK HUS-532155246
...
25
Bolts HUS-596564401
...
28
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
10
Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5 HUS-874781044
...
24
Washer 13/32 x 1-1/20 x 11 Gauge HUS-819132411
...
2
AXLE.FRONT.CAST.MACHINE.W/ZERK HUS-532178557
...
14
Washers HUS-596238701
