Husqvarna GTH200 - 954140046A (1998-09) Riding Tractor

Model: GTH200 - 954140046A (1998-09)

Back To Assemblies

Save Part Not Listed?
product name

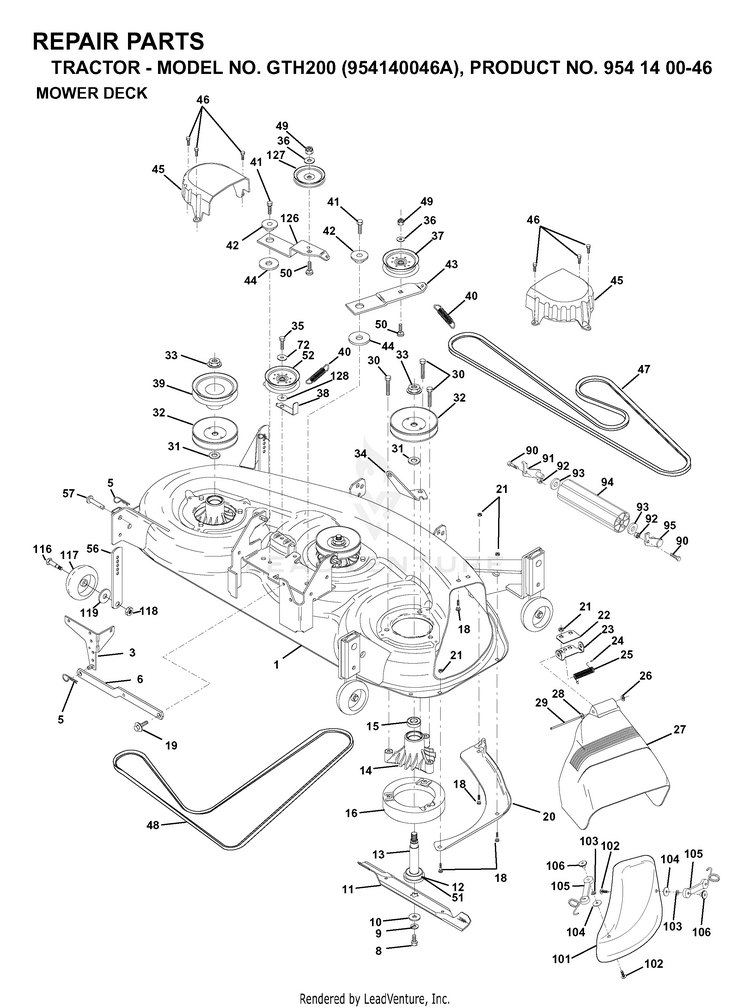

MOWER DECK / CUTTING DECK

...
...
22
STIFFENER BRACKET HUS-532134753
...
35
BOLT HUS-599972501
...
119
GSPH HUS-596134901
...
19
BOLT SHD 5/16-18 HUS-532132827
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
3
BRACKET SWAY BAR HUS-532138457
...
27
DEFLECTOR.CLIPPING.46" HUS-532166883
...
5
RETAINER-SPRNG RB HUS-532124670
...
41
BOLT HUS-874760620
...
126
ARM IDLER PRIM 46 HUS-532144948
...
104
WASHER HUS-819061216
...
39
PULLEY.DRIVEN.DECK.46" HUS-532144917
...
43
ARM IDLER DECK 46" HUS-532144949
...
40
SPRING.SEC.44"VEN HUS-532137273
...
20
SERVICE KIT BAFFLE BAFFLE HUS-531154201
...
52
PULLEY.IDLER.FLAT.46".PRIMARY HUS-532173901
...
10
WASHER.BLADE HUS-532140296
...
90
Bolts HUS-596564401
...
25
SPRING TORSION HUS-532123713
...
14
HOUSING.MANDREL.44/46" VENT HUS-532137152
...
101
COVER.MULCH.46"3-BLADE.(2 2) HUS-532145579
...
28
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
33
KIT.NUT.FLANGE HUS-532139729
...
47
BELT V SECONDARY HUS-532144959
...
24
CAP-SLEEVE LT HUS-532105304
...
92
Nuts HUS-596322601
...
18
Bolts HUS-596136401
...
29
Rods HUS-595297001
...
102
Screws HUS-596039001
...
95
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
57
RIVET.PIN.HEAD.YELLOW. HUS-532156941
...
127
PULLEYS HUS-593787801
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
48
V-BELT.PRMRY 46/50 VENT.BLK BK HUS-532139573
...
21
Hardware HUS-596040501
...
11
MULCH BLADE 46" HUS-532152443
...
38
KEEPER.BELT.IDLER HUS-532156086
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
32
MANDREL PULLEY HUS-532173434
...
15
BEARING HUS-532110485
...
42
SPACER.RETAINER.MOWER HUS-532165723
...
- -
KIT.MANDREL.ASM.44"/46/50"SRVC HUS-532143651
...
50
GSPW Bolts HUS-596136101
...
36
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
23
SERVICE KIT BRKT HUS-529845901
...
13
SHAFT.ASM.W/BEARING HUS-532137553
...
118
Nuts HUS-596322601
...
93
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
94
NOSE ROLLER HUS-532132264
...
45
COVER MANDREL 46 HUS-532145059
...
8
BLADE BOLT HUS-532850857
...
26
NUT PUSH M HUS-532110452
...
9
Washers HUS-596238701
...
72
Washers HUS-596140201
...
106
Nuts HUS-596987401
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
37
CLG HUS-597025001
...
103
LOCKWASHER #10 HUS-810071000
...
117
WHEEL GAGE DONUT HUS-532133957
...
49
Nuts HUS-596322601
...
34
ANCHOR, SPRING DECK 46" HUS-532144945
...
51
WASHER FELT HUS-532153390
...
116
Bolts HUS-596434404
...
91
BRACKET ASM, ROLLER (L) HUS-532175746
...
44
WASHER HUS-532178515
