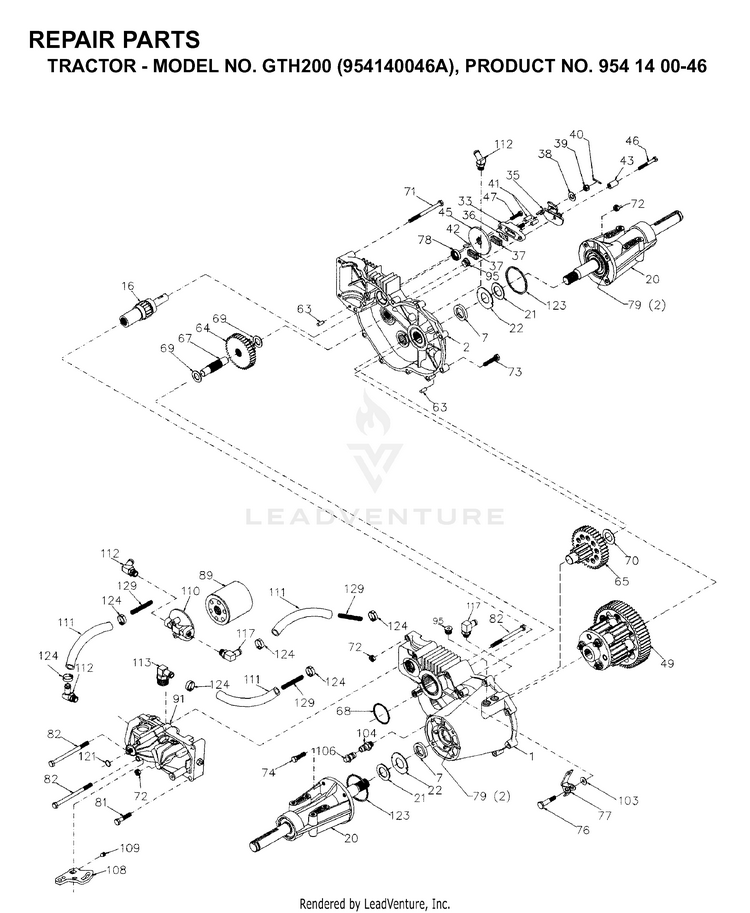

Husqvarna GTH200 - 954140046A (1998-09) Riding Tractor

Model: GTH200 - 954140046A (1998-09)

Back To Assemblies

Save Part Not Listed?
product name

TRANSMISSION

...
...
36
PLATE.PUCK.44134 HUS-584289601
...
37
BRAKE PUCK (44132) HUS-532142883
...
67
JACKSHAFT.44779.HYDRO HUS-532142898
...
39
CASTLE NUT HUS-532142885
...
123
O-RING 50405 HUS-532150824
...
38
WASHER .34X.88X.06.44130 HUS-532142884
...
16
BRAKE SHAFT KIT #62877 HUS-532142876
...
78
SEAL OIL 70719 HUS-532142909
...
72
NUT 5/16-18 HEX LOCK 43064 HUS-532153767
...
104
VENT CAP 70109 HUS-532142578
...
40
PIN.COTTER.44101. HUS-532142886
...
89
FILTER.SPIN.51563 HUS-532182642
...
109
SCREW.SET.50018 HUS-532142920
...
91
PUMP.BDU-10L-122 HUS-532153769
...
7
SEAL.OIL.44782.HY (44782) HUS-532153765
...
106
O-RING KIT 70110 HUS-532142918
...
47
SCREW 1/4-20X1 PATCH 44433 HUS-584281501
...
68
O-RING #44781 HUS-532142899
...
41
PIN.BRAKE.31X.73.PLATED.44127 HUS-584287501
...
111
HOSE HUS-532150820
