Husqvarna GTH200 - 954002022A (1995-05) Riding Tractor

Model: GTH200 - 954002022A (1995-05)

Back To Assemblies

Save Part Not Listed?
product name

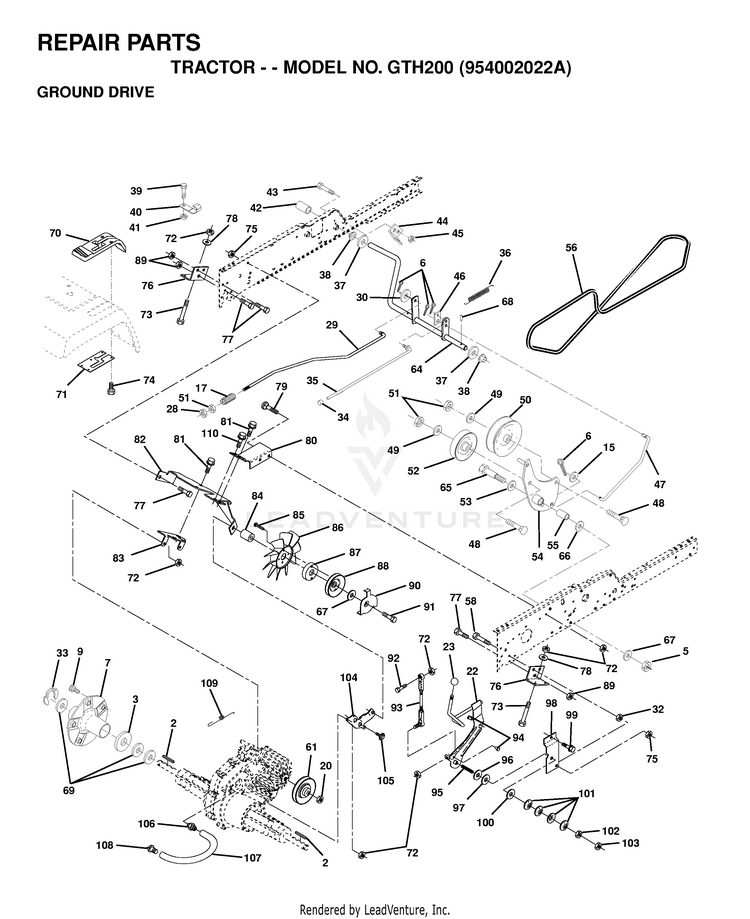

DRIVE

...
...
20
NUT.HEX.1/2-20 HUS-873940800
...
17
SPRING.ROD.BRAKE HUS-532140921
...
86
FAN 7" HYDRO HUS-532140462
...
68
ROLL PIN STD HUS-532005142
...
35
PARKING BRAKE ROD HUS-532137648
...
102
NUT.CENTERLOCK.5/16- HUS-873930500
...
84
SPACER HUS-532140490
...
108
VENT CAP 70109 HUS-532142578
...
73
Bolt Fin Hex 5/16-18 x 3 HUS-874780548
...
74
Screws HUS-596134101
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
33
E RING HYT HUS-812000053
...
61
PULLEY HUS-532140488
...
xx
TRANSAXLE HYDRO HUS-532140343
...
5
Nuts HUS-596322601
...
56
V-BELT. HUS-532140218
...
42
COVER, PEDAL (1 2) HUS-532123533
...
89
Nut, Crownlock Hex 7/16-14 unc HUS-873680700
...
43
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
44
BRKT SWITCH GT HUS-532104601
...
52
PULLEY.IDLER.V. HUS-532139123
...
76
BRACKET TRANSAXLE HUS-532140481
...
95
Screw Set 5/16-18 x 1.75 HUS-823200528
...
55
BEARING LT (2 2) HUS-532105706
...
97
BEARING HUS-532126874
...
107
VENT HOSE HUS-532142577
...
48
Bolts HUS-596136201
...
91
BOLT HUS-596564005
...
6
Pins HUS-596029501
...
58
BOLT.HEX.7/16-14.FINISHED HUS-874760724
...
70
KIT CONS HYD ADJ YT GT HUS-532153762
...
83
STRAP TORQUE MID HUS-532140479
...
69
WASHER HUS-532123800
...
75
Nut, Lock Hex 7/16 Unc HUS-873800700
...
72
Hardware HUS-596040501
...
106
VENT FITTING HUS-532142576
...
99
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
78
WASHER HUS-819111212
...
85
Screw #10-24 x 1-1/4 HUS-817541020
...
40
ACTUATOR INTERLOCK SWITCH HUS-532178575
...
37
WASHER HUS-532121749
...
105
Screws HUS-596437001
...
49
Washer 13/32 x 7/8 x 13 Gauge HUS-819131413
...
90
KEEPER.BELT HUS-532140489
...
41
LOCKNUT HUS-532069180
...
88
PULLEY HUS-532161592
...
87
ADAPTOR.FAN.TRANSAXLE.VGTH HUS-532140491
...
101
WASHER HUS-532059285
...
30
Washers HUS-596140201
...
65
AXLE BOLT HUS-532067609
...
93
LINK ASM SHIFT HUS-532140502
...
38
NYLINER T HUS-532110895
...
50
CLG HUS-597025001
...
7
HUB ASMBLY HUS-532140507
...
79
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
29
BRAKE ROD HUS-532140494
...
3
WASHER T HUS-532007563
...
71
PLATE SHIFT CONSOLE HUS-532140927
...
98
SHIFT BRACKET HUS-532141004
...
9
Bolts HUS-596218701
...
104
BRACKET IDLER HUS-532140480
...
82
KIT.BRAKET/HDW.MOUNT.HYDRO HUS-532154561
...
94
FASTENER.XMAS.TREE HUS-532133835
...
81
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
32
NUT HUS-873220700
...
80
TORQUE BRACKET RH HUS-532140484
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
45
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
64
SHAFT CLUTCH/BRAKE PEDAL HUS-532154752
...
2
KEY 1/4 X 2.5 HUS-532007070
...
54
CLUTCH ARM ASSY HUS-532138390
...
103
Nuts HUS-596436301
...
96
WASHER HUS-532141103
...
109
RETURN SPRING HUS-532140929
...
22
SHAFT ARM ASMBLY HUS-532140498
...
92
Screws HUS-595305701
...
51
Nuts HUS-596322601
...
110
HINGE SCREW HUS-532088652
...
39
Screw, Fin. #10-24 x 1 HUS-874321016
...
100
WASHER HUS-532126881
...
46
RETAINER SPRING HUS-532145170
...
67
GSPH HUS-596134901
...
34
PLUNGER CAP HUS-532071673
...
77
Bolts HUS-596238601
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
36
SPRING DRIVE GROUND HUS-532149412
...
47
CLUTCH ROD HUS-532138228
...
53
WASHER T HUS-532000207
...
66
WASHER.BLADE HUS-532140296
