Husqvarna GTH200 - 954001122VA (1995-03) Riding Tractor

Model: GTH200 - 954001122VA (1995-03)

Back To Assemblies

Save Part Not Listed?
product name

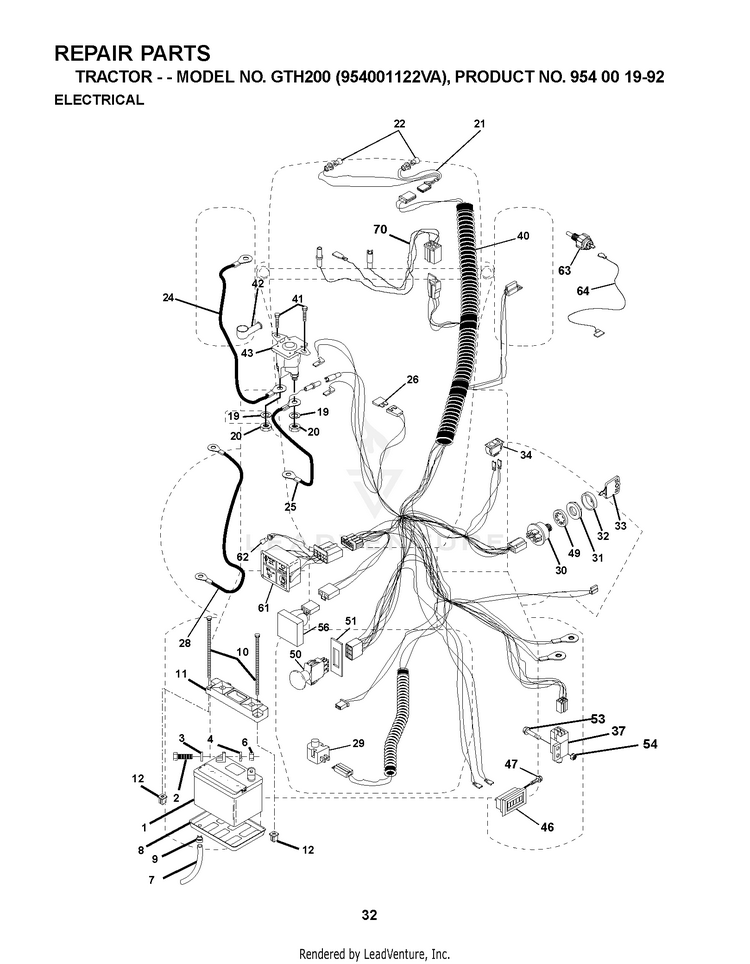

ELECTRICAL

...
...
28
CABLE T HUS-532004207
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
61
LIGHT PACKAGE HUS-532126519
...
24
BATTERY CABLE HUS-532004799
...
53
SCREW ** HUS-874641008
...
54
Nut, Hex, Keps #10-32 UNF HUS-873951000
...
49
Washer, Lock Internal Tooth 5/8 HUS-811151000
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
70
ENGINE HARNESS HUS-532141983
...
30
KIT.SWITCH.IGNITION HUS-532158913
...
62
BULB LIGHT T HUS-532110143
...
42
COVER.TERMINAL.RED HUS-532154336
...
63
SWITCH, OIL PRESSURE HUS-532142320
...
46
KIT.HOURMETER.SNAP-IN HUS-532169642
...
32
COVER SWITCH KEY HUS-532141226
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
41
Screws HUS-596437001
...
8
TRAY.BATTERY HUS-532007603
...
43
KIT SOLENOID .95 HUS-532146154
...
19
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
34
SWITCH LT HUS-532110712
...
7
PLASTIC TUBE HUS-532007697
...
21
HARNESS LIGHT SOCKET HUS-532136850
...
22
LIGHTBULB HUS-532004152
...
6
NUT.HEX..25-20.UNC HUS-532050675
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
11
BATTERY HOLDDOWN FRONT MOUNT HUS-532150109
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
51
FRAME RETAINING RING HUS-532140405
...
56
SENSOR LOW VOLTAGE HUS-532127385
...
26
FUSE HYT HUS-532108824
...
10
BATTERY TIEDOWN KIT HUS-532150177
...
33
KEY MLD GEN DELTA HUS-532140401
...
12
BATTERY TIEDOWN KIT HUS-532150177
...
31
KIT-WASHER/NUT HUS-532145774
...
9
HOSE CLAMP T HUS-532109596
...
64
LEAD WIRE HUS-532144222
...
25
CABLE, BATTERY HUS-532146149
...
47
Screw 10-24 x 1/2 Black HUS-817011008
...
37
SWITCH, INTERLOCK HUS-539101080
...
4
Washers HUS-596582301
...
3
WASHER SPRING LOCK WASHER WITH HUS-596029801
