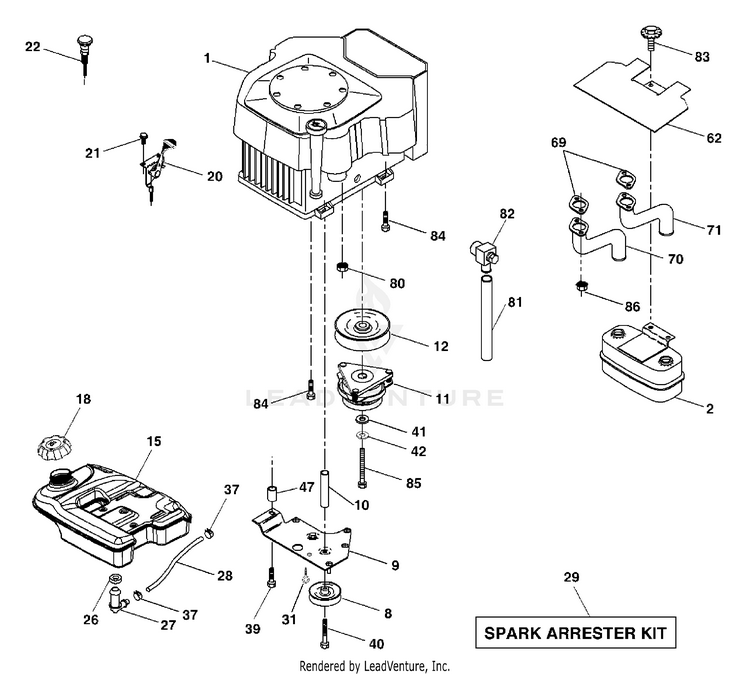

Husqvarna GTH 2754 (96023000401) (2005-06) Ride Mower

Model: GTH 2754 (96023000401) (2005-06)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Engine

...
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
8
PULLEY.IDLER.V. HUS-532139123
...
9
KEEPER ASM BELT ENGINE HUS-532177748
...
10
BUSHING HUS-532175287
...
11
CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335
...
12
PULLEY ENG VGT ELECT CLUTCH HUS-532143996
...
15
TANK.FUEL.5.0 LEFT.FILL.YTGT HUS-532179115
...
18
FUEL CAP HUS-532179124
...
20
CONTROL.THROTTLE.LH.COBRA.KNOB HUS-532177328
...
21
Screws HUS-596321701
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
...
26
BUSHING OUTLET T HUS-532003645
...
27
STEM FUEL TANK HUS-532139277
...
28
FUEL LINE 42" HUS-532008542
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
PUSH CLIP HUS-532145006
...
37
HOSE CLAMP HUS-532123487
...
39
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
40
Screw TT 3/8-16 x 4 unc HUS-817490664
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
47
BUSHING HUS-532175288
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
70
TUBE EXHAUST LH HUS-532175545
...
71
TUBE.EXHAUST.LV675.COMMAND.RH HUS-532175546
...
80
Nuts HUS-596433401
...
81
TUBE, DRAIN, OIL HUS-532188800
...
82
VALVE.OIL.DRAIN.GT HUS-532188799
...
83
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
84
SCREW 3/8-16 X 1-1/2 HUS-817060624
...
85
BOLT HEX 7/16-20 X 3.75 GR. 5 HUS-532179953
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
...
...
