Husqvarna GTH 2754 (96023000400) (2005-06) Ride Mower

Model: GTH 2754 (96023000400) (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

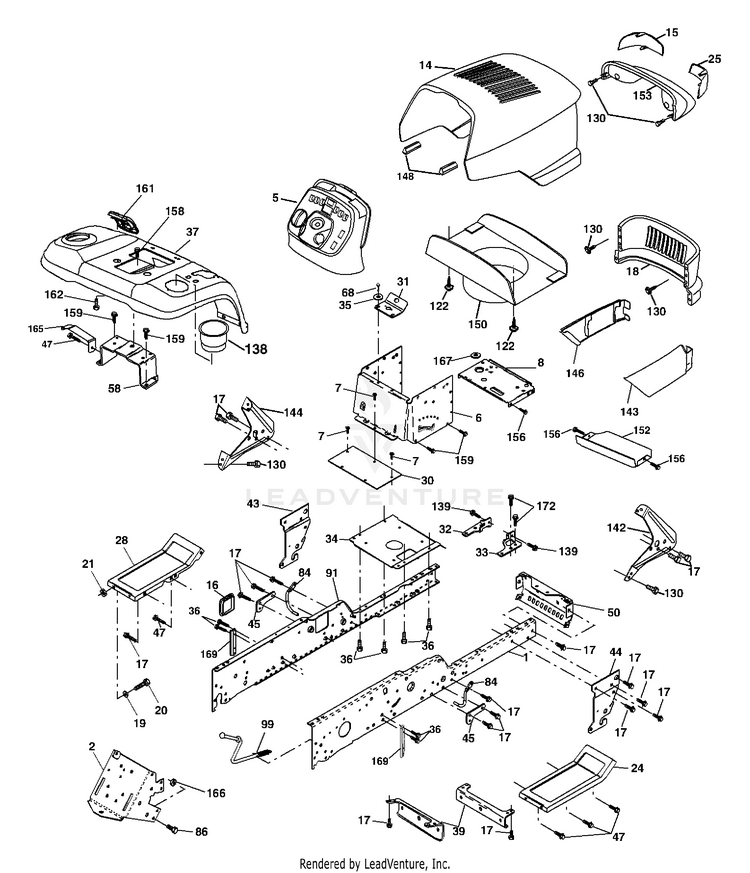

Chassis And Enclosures

...
...
1
KIT.RAIL.CHASS.RH.GT HUS-532180375
...
2
DRAWBAR, GT HUS-532175282
...
5
DASH HUS-532193624
...
6
DASH VGT, LOWER HUS-532157882
...
7
Screws HUS-596437001
...
8
KIT, SUPPORT, BATTERY HUS-532185518
...
14
HOOD.ASM.STEALTH.STV.2004 HUS-532188208
...
15
KIT.HARNESS/LIGHT ASM DUAL HUS-583125201
...
16
COVER ACCESS HUS-532121794
...
17
SCREW, 3/8-16X3/4 HUS-817000612
...
18
GRILLE.STEALTH P/L.YTGT.GREY HUS-532182873
...
19
GSPH HUS-596134901
...
20
Bolts HUS-596564401
...
21
Nuts HUS-596322601
...
24
FOOTREST.RH.BLACK HUS-532182508
...
25
KIT.HARNESS/LIGHT ASM DUAL HUS-583125201
...
28
FOOTREST.LH.BLACK HUS-532182507
...
30
SADDLE.HYDRO.95 HUS-532145052
...
31
BRACKET SUPT 1-PC VGT STEERING HUS-532161419
...
32
BRACKET HUS-532161327
...
33
BRACKET. HUS-532161326
...
34
PLATE ASM ENG CHASSIS HUS-532177018
...
35
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
37
KIT FENDER.YTGT.W/S.ORANGE HUS-532196023
...
39
BRACKET AXLE, FRONT HUS-532175278
...
43
FRONT SUSPENSION BRKT LH HUS-532136939
...
44
FRONT SUSPENSION BRKT RH HUS-532136940
...
45
BRACKET ARM SUSPENSION HUS-532187270
...
47
Bolts HUS-596564001
...
50
BRACKET, CHASSIS FRONT HUS-532175476
...
56
BRACKET ASM., SUSP CHASSIS LH HUS-532176016
...
58
BRACKET ASM., FENDER HUS-532183569
...
68
Screws HUS-596030701
...
84
UPSTOP 54" HUS-532188164
...
86
Bolts HUS-596238601
...
91
KIT.RAIL.CHASS.LH.GT HUS-532180374
...
99
ROD ASM, BYPASS HUS-532177143
...
122
SCREW.WSHD.HEX10-32X5/8 HUS-532192512
...
130
Screws HUS-596321701
...
138
CUPHOLDER.YTGT.TWIST LOCK.418 HUS-583710501
...
139
BOLT, SHOULDER 5/16-18 HUS-532171873
...
142
BRACKET DASH STEALTH(R) HUS-532161897
...
143
SKIRT GRILLE RH HUS-532177586
...
144
BRACKET DASH STEALTH LH HUS-532161900
...
146
SKIRT GRILLE LH HUS-532177587
...
148
EXTRUSION BUMPER (3 2) (2 2) HUS-532164655
...
150
DUCT.HEAT.HOOD.STEALTH.GT HUS-532190309
...
152
BROWNING SHIELD HUS-532177956
...
153
LIGHTBOX.ASM.STV.DL.INC.HUSQ HUS-532188212
...
156
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
158
SCREW 3/8-16X1/2 HUS-817670608
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
161
CONSOL.FUEL.WINDOW.BLACK HUS-532181787
...
162
Screws HUS-596134101
...
165
BRACKET SUPPORT TANK HUS-532183554
...
166
Nut, Lock Hex 7/16-14 unc HUS-873680700
...
167
BUSHING SNAP HUS-532184672
...
169
BRACKET CHASSIS SWAY HUS-532188598
...
172
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 HUS-817490614
