Husqvarna GTH 2654 (96025000100) (2005-06) Ride Mower

Model: GTH 2654 (96025000100) (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

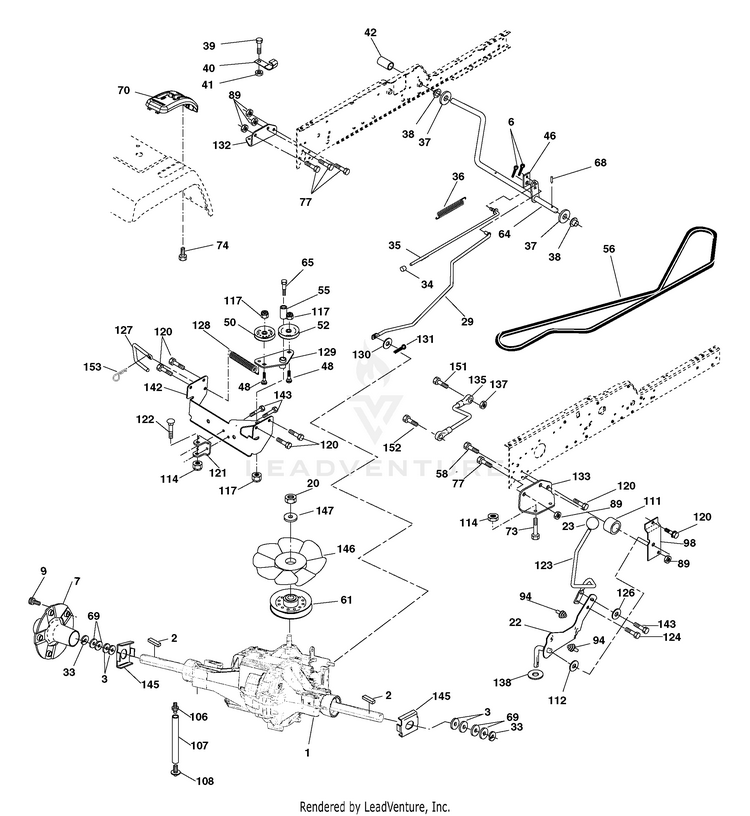

Ground Drive

...
...
2
KEY 1/4 X 2.5 HUS-532007070
...
3
WASHER T HUS-532007563
...
6
Pins HUS-596029501
...
7
HUB ASMBLY HUS-532140507
...
9
Bolts HUS-596218701
...
20
NUT.HEX.1/2-20 HUS-873940800
...
22
LOWER SHIFT LEVER ASM HUS-532180235
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
29
BRAKE, ROD HUS-532176600
...
33
E RING HYT HUS-812000053
...
34
PLUNGER CAP HUS-532071673
...
35
PARKING BRAKE ROD HUS-532137648
...
36
SPRING DRIVE GROUND HUS-532149412
...
37
WASHER HUS-532121749
...
38
NYLINER HUS-532150035
...
39
Screw, Fin. #10-24 x 1 HUS-874321016
...
40
ACTUATOR INTERLOCK SWITCH HUS-532178575
...
41
Nut Centerlock 10-24 unc HUS-873931000
...
42
PAD, FOOT PEDAL HUS-510089501
...
46
RETAINER SPRING HUS-532145170
...
48
Bolts HUS-596136201
...
50
CLG HUS-597025001
...
52
PULLEY IDLER HUS-532139245
...
55
BEARING LT (2 2) HUS-532105706
...
56
BELT, V GROUND DRIVE HUS-532161597
...
58
BOLT.HEX.7/16-14.FINISHED HUS-874760724
...
61
PULLEY, TRANSAXLE HUS-532143995
...
64
SHAFT.ASM.PEDAL.BRAKE HUS-532176601
...
65
BOLT.SHLDR.3/8-16 HUS-532179613
...
68
ROLL PIN STD HUS-532005142
...
69
WASHER HUS-532123800
...
70
CONSOLE.SHIFT HUS-532192390
...
73
BOLT HEX FLGHD 5/16-18X3 GR. 5 HUS-874490548
...
74
Screws HUS-596134101
...
77
Bolts HUS-596238601
...
89
Nut Crownlock 7/16-14 unc HUS-873680700
...
94
FASTENER.XMAS.TREE HUS-532133835
...
98
SHIFT BRACKET HUS-532141004
...
106
O-RING KIT 70110 HUS-532142918
...
107
LINE.VENT.HYDRO-GEAR HUS-532154739
...
108
VENT CAP 70109 HUS-532142578
...
111
SPACER SHIFT LEVER VGTH HUS-532156240
...
112
WASHER NYLON HIGH TEMP HUS-532178558
...
114
Hardware HUS-596040501
...
117
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
120
SCREW, 3/8-16X3/4 HUS-817000612
...
121
BRACKET STRAP TORQUE HUS-532175611
...
122
BOLT.5/16-18X2.5 HUS-872010520
...
123
ROD.SHIFT HUS-532192438
...
124
BOLT.SHOULDER.5/16-18X HUS-532165492
...
126
Washers HUS-596218801
...
127
LINK CONTROL CLUTCH HUS-532177362
...
128
SPRING DRIVE GRND HUS-532176624
...
129
BRACKET ARM IDLER TENSIONING HUS-532179473
...
130
WASHER HUS-819131016
...
131
Pins HUS-596917601
...
132
BRACKET MTG HYDRO 3500 LH VGT HUS-532175467
...
133
BRACKET MTG HYDRO 3500 RH VGT HUS-532175468
...
135
LINK ASM CONTROL HYDRO 3500 HUS-532177364
...
137
LOCKNUT HUS-532124949
...
138
THRUST WASHER HUS-532001370
...
142
STRAP TORQUE HT-3500 HUS-532175469
...
143
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
145
WASHER.AXLE.FLANGE.HG-3000 HUS-532163168
...
146
FAN 7" HYDRO HUS-532140462
...
147
WASHER HUS-532141322
...
151
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
152
BOLT HEX 5/16X1 W/PATCH HUS-532178705
...
153
RETAINER M HUS-532004497
