Husqvarna GTH 2648 (96043003000) (2006-12) Ride Mower

Model: GTH 2648 (96043003000) (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

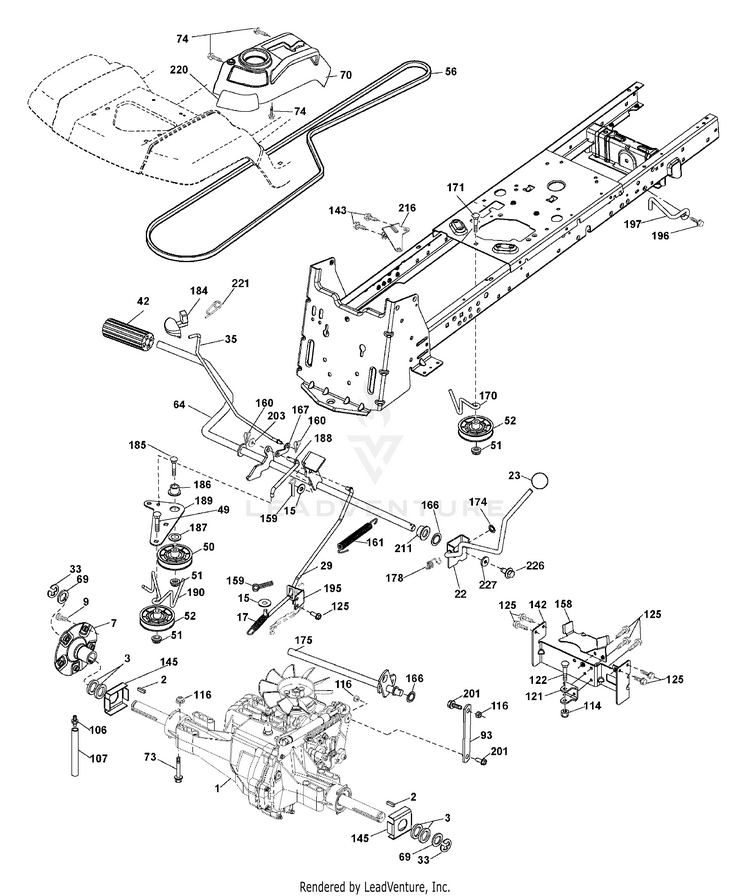

Drive

...
...
2
KEY 1/4 X 2.5 HUS-532007070
...
3
WASHER T HUS-532007563
...
7
SERVICE KIT HUB.ASM HUB.ASM.WH HUS-531149201
...
9
Bolts HUS-596218701
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
22
SHIFTER.ASM.GT.TEX.2006 HUS-532400504
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
29
ROD.BRAKE.HG3000/3500 HUS-532197269
...
33
E RING HYT HUS-812000053
...
35
Rods HUS-583864502
...
42
PAD, FOOT PEDAL HUS-510089501
...
49
Bolts HUS-596136201
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
56
BELT.V.GROUND.DRIVE HUS-532165813
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
69
WASHER HUS-532123800
...
70
SUBASM.CONSOLE.HUSQ.GT.HYDRO HUS-532439660
...
73
BOLT HEX FLGHD 5/16-18X3 GR. 5 HUS-874490548
...
74
Screws HUS-596134101
...
93
LINK.TRANSAXLE.HG3000/3500 HUS-532196213
...
106
VENT CAP 70109 HUS-532142578
...
107
TUBE VENT HUS-532410481
...
114
Hardware HUS-596040501
...
116
GSPW Nuts HUS-596135701
...
121
BRACKET STRAP TORQUE HUS-532175611
...
122
BOLT.5/16-18X2.5 HUS-872010520
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
142
STRAP.TORQUE.HG3000/K46 HUS-532404483
...
143
Screws HUS-596030701
...
145
WASHER.AXLE.FLANGE.HG-3000 HUS-532163168
...
158
KEEPER BELT HUS-532194351
...
159
Pins HUS-596029501
...
160
GSPW Retainers HUS-596029401
...
161
SPRING, RETURN LT HUS-532105709
...
166
NUT.PUSH.625 HUS-532429164
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
171
Bolts HUS-596136301
...
174
NUT.PUSH.500.2006 HUS-532197289
...
175
SHAFT ASM SHIFT HUS-532196204
...
178
SPRING.SHIFT.GT2006 HUS-532197456
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
185
Bolts HUS-596435101
...
186
SPACER.RETAINER HUS-532194321
...
187
Washers HUS-596135501
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
195
RETAINER.ROD.BRAKE.HG3000.TEX HUS-532405113
...
196
SCREW 3/8-16X1 HUS-817000616
...
197
BRKT.ANIT-ROTATION.CLUTCH HUS-532199769
...
201
BOLT.5/16-18X.910 ST CLR ZINC HUS-596231101
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
211
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
220
REFLECTOR.RH.TEX GT HUS-532198908
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
226
Bolts HUS-596238601
...
227
Washers HUS-596135201
...
xx
PLUG.N/CRUISE.COMMON.YT/GT.BLK HUS-532403571
