Husqvarna GTH 2548 XPB (954567895) (2002-10) Ride Mower

Model: GTH 2548 XPB (954567895) (2002-10)

Back To Assemblies

Save Part Not Listed?
product name

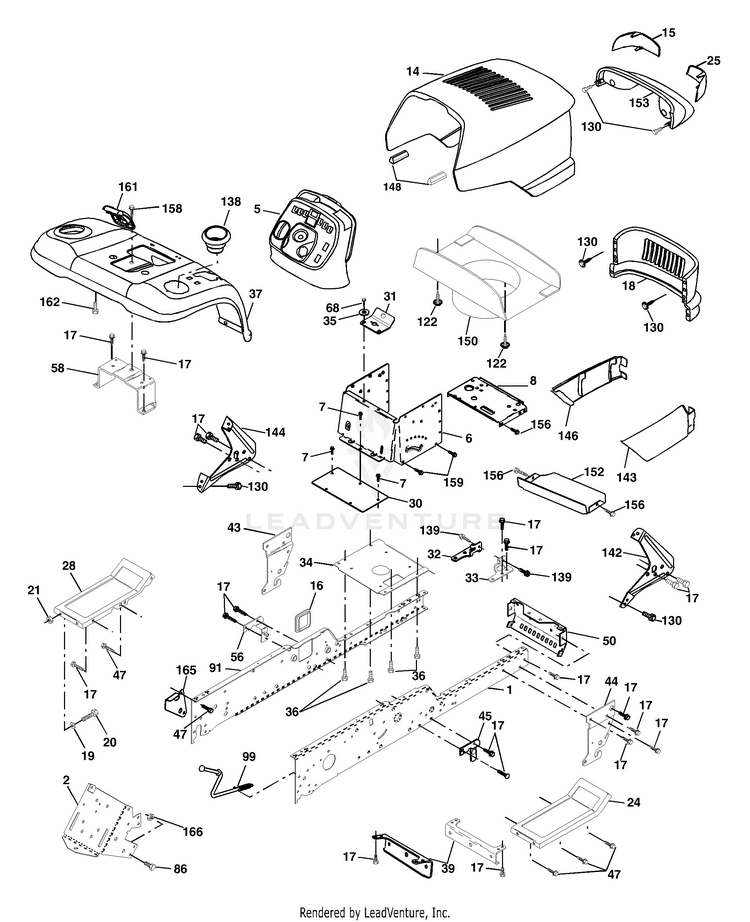

Chassis And Enclosures

...
...
1
KIT.RAIL.CHASS.RH.GT HUS-532180375
...
2
DRAWBAR, GT HUS-532175282
...
5
DASH HUS-532183910
...
6
DASH VGT, LOWER HUS-532157882
...
7
Screws HUS-596437001
...
8
SUPPORT, BATTERY HUS-532145166
...
14
HOOD.ASM.PNT HUS-532194976
...
15
KIT.HARNESS/LIGHT ASM DUAL HUS-583125201
...
16
COVER ACCESS HUS-532121794
...
17
SCREW, 3/8-16X3/4 HUS-817000612
...
18
GRILLE.STEALTH P/L.YTGT.GREY HUS-532182873
...
19
GSPH HUS-596134901
...
20
Bolts HUS-596564401
...
21
Nuts HUS-596322601
...
24
FOOTREST.RH.BLACK HUS-532182508
...
25
KIT.HARNESS/LIGHT ASM DUAL HUS-583125201
...
28
FOOTREST.LH.BLACK HUS-532182507
...
30
SADDLE.HYDRO.95 HUS-532145052
...
31
BRACKET SUPT 1-PC VGT STEERING HUS-532161419
...
32
BRACKET HUS-532161327
...
33
BRACKET. HUS-532161326
...
34
PLATE ASM ENG CHASSIS HUS-532177018
...
35
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
37
KIT FENDER.YTGT.W/S.ORANGE HUS-532196023
...
39
BRACKET AXLE, FRONT HUS-532175278
...
43
FRONT SUSPENSION BRKT LH HUS-532136939
...
44
FRONT SUSPENSION BRKT RH HUS-532136940
...
45
BRACKET, ASM., SUSP CHASSIS RH HUS-532176018
...
47
Bolts HUS-596564001
...
50
BRACKET, CHASSIS FRONT HUS-532175476
...
56
BRACKET ASM., SUSP CHASSIS LH HUS-532176016
...
58
BRACKET ASM., FENDER HUS-532183569
...
68
Screws HUS-596030701
...
86
BOLT, HEX HUS-874780720
...
91
KIT.RAIL.CHASS.LH.GT HUS-532180374
...
99
ROD ASM, BYPASS HUS-532177143
...
122
SCREW.HEX.WS.HD.8-18 X 7/8 HUS-532161464
...
130
SCREW.HI-LO#13-16X5/8 HUS-532189747
...
138
CUPHOLDER HUS-532181798
...
139
BOLT, SHOULDER 5/16-18 HUS-532171873
...
142
BRACKET DASH STEALTH(R) HUS-532161897
...
143
SKIRT GRILLE RH HUS-532177586
...
144
BRACKET DASH STEALTH LH HUS-532161900
...
146
SKIRT GRILLE LH HUS-532177587
...
148
EXTRUSION BUMPER (3 2) (2 2) HUS-532164655
...
150
DUCT.HEAT.HOOD.STEALTH.GT HUS-532190309
...
152
BROWNING SHIELD HUS-532177956
...
153
LIGHT ASM. HUS-532179765
...
156
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
158
SCREW 3/8-16X1/2 HUS-817670608
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
161
CONSOL.FUEL.WINDOW.BLACK HUS-532181787
...
162
Screws HUS-596134101
...
165
BRACKET SUPPORT TANK HUS-532183554
...
166
Nut, Lock Hex 7/16 Unc HUS-873800700
