Husqvarna GTH 2548 XPA (954567895) (2001-12) Ride Mower

Model: GTH 2548 XPA (954567895) (2001-12)

Back To Assemblies

Save Part Not Listed?
product name

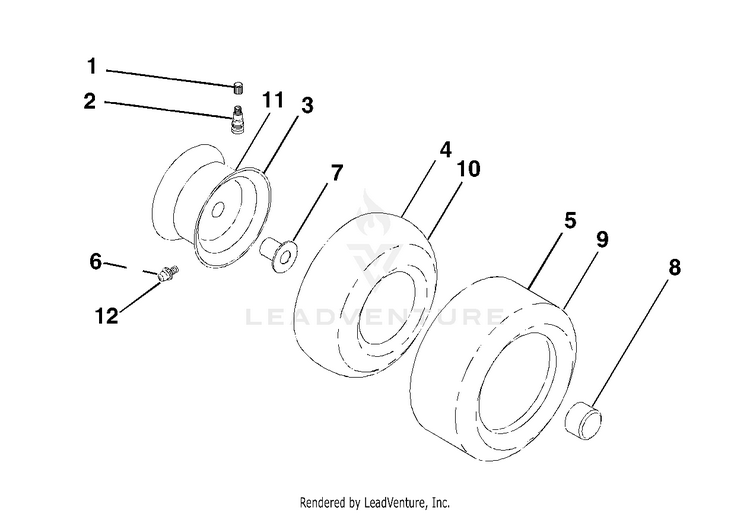

Wheels & Tires

...
...
1
VALVE CAP HUS-532059192
...
2
VALVE STEM LT HUS-532065139
...
3
RIM.ASM.8X5.FRONT.SILVER HUS-532148736
...
4
TUBE.16X6.5/7.5-8 (Service Item Only) HUS-532008134
...
5
Tire, Front HUS-532148741
...
6
FITTING LT. HUS-532000278
...
7
BEARING.FLANGE (Front Wheel Only) HUS-532009040
...
8
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
9
TIRE.24X12-12.TURF.SAVER.REAR HUS-532151607
...
10
TUBE.23X9.5-12 (Service Item Only) HUS-532007154
...
11
RIM ASSY 12" HUS-532148738
...
12
ZERK FITTING M HUS-532124860
...
xx
6, 24OZ PNUEMASEAL BOTTLES (10 oz. Tube) HUS-576707201
