Husqvarna GTH 250 (954140104A) (1999-09) Ride Mower

Model: GTH 250 (954140104A) (1999-09)

Back To Assemblies

Save Part Not Listed?
product name

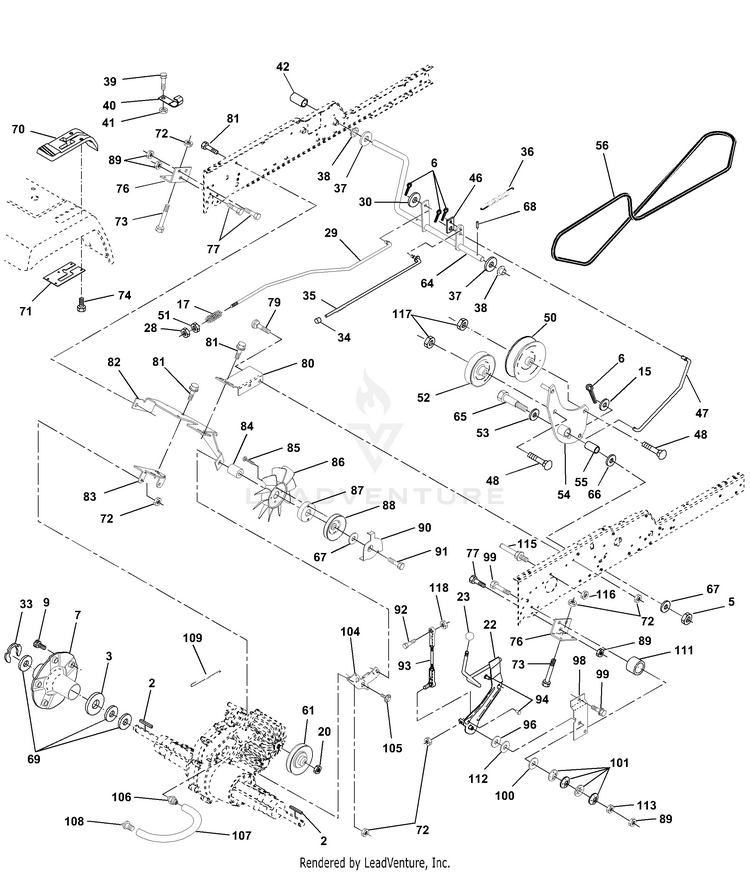

Ground Drive

...
...
2
KEY 1/4 X 2.5 HUS-532007070
...
3
WASHER T HUS-532007563
...
5
Nuts HUS-596322601
...
6
Pins HUS-596029501
...
7
HUB ASMBLY HUS-532140507
...
9
Bolts HUS-596218701
...
15
Nuts HUS-596322601
...
17
SPRING.ROD.BRAKE HUS-532140921
...
20
NUT.HEX.1/2-20 HUS-873940800
...
22
SHAFT ARM ASM HUS-532156103
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
29
BRAKE ROD HUS-532140494
...
30
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
33
E RING HYT HUS-812000053
...
34
PLUNGER CAP HUS-532071673
...
35
PARKING BRAKE ROD HUS-532137648
...
36
SPRING DRIVE GROUND HUS-532149412
...
37
WASHER HUS-532121749
...
38
NYLINER HUS-532150035
...
39
Screw, Fin. #10-24 x 1 HUS-874321016
...
40
ACTUATOR INTERLOCK SWITCH HUS-532178575
...
41
Nut Toplock #10-24 UNC HUS-873661000
...
42
PAD, FOOT PEDAL HUS-510089501
...
46
RETAINER SPRING HUS-532145170
...
47
CLUTCH ROD HUS-532138228
...
48
GSPW Bolts HUS-596136101
...
50
CLG HUS-597025001
...
51
Nuts HUS-596322601
...
52
PULLEY.IDLER.V. HUS-532139123
...
53
WASHER T HUS-532000207
...
54
CLUTCH.ARM.ASM.IDLER.98 HUS-532161590
...
55
BEARING LT (2 2) HUS-532105706
...
56
V-BELT. HUS-532140218
...
61
PULLEY HUS-532140488
...
64
SHAFT CLUTCH/BRAKE PEDAL HUS-532154752
...
65
BOLT.SHLDR.3/8-16 HUS-532179613
...
66
WASHER.BLADE HUS-532140296
...
67
GSPH HUS-596134901
...
68
ROLL PIN STD HUS-532005142
...
69
WASHER HUS-532123800
...
70
FENDER CONSOLE HUS-532164892
...
71
PLATE CONSOLE SHIFT HUS-532151179
...
72
Hardware HUS-596040501
...
73
BOLT HEX FLGHD 5/16-18X3 GR. 5 HUS-874490548
...
74
Screws HUS-596134101
...
76
BRACKET TRANSAXLE HUS-532140481
...
77
Bolts HUS-596238601
...
79
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
80
TORQUE BRACKET RH HUS-532140484
...
81
SCREW, 3/8-16X3/4 HUS-817000612
...
82
KIT.BRAKET/HDW.MOUNT.HYDRO HUS-532154561
...
83
STRAP TORQUE MID HUS-532140479
...
84
SPACER HUS-532140490
...
85
Screw #10-24 x 1-1/4 HUS-817541020
...
86
FAN 7" HYDRO HUS-532140462
...
87
ADAPTOR.FAN.TRANSAXLE.VGTH HUS-532140491
...
88
PULLEY HUS-532161592
...
89
Locknut 7/16-14 HUS-873680700
...
90
KEEPER.BELT HUS-532140489
...
91
BOLT HUS-596564005
...
92
Screws HUS-595305701
...
93
LINK ASM SHIFT HUS-532140502
...
94
FASTENER.XMAS.TREE HUS-532133835
...
96
WASHER HUS-532141103
...
98
SHIFT BRACKET HUS-532141004
...
99
SCREW 3/8-16 X 1-1/2 HUS-817060624
...
100
WASHER HUS-532126881
...
101
WASHER BELLVILLE HUS-532156106
...
104
BRACKET IDLER HUS-532140480
...
105
Screws HUS-596437001
...
106
O-RING KIT 70110 HUS-532142918
...
107
LINE.VENT.HYDRO-GEAR HUS-532154739
...
108
VENT CAP 70109 HUS-532142578
...
109
RETURN SPRING HUS-532140929
...
111
SPACER SHIFT LEVER VGTH HUS-532156240
...
112
WASHER NYLON HIGH TEMP HUS-532178558
...
113
NUT HUS-873220700
...
115
BELT KEEPER KIT HUS-532156109
...
116
GSPW Nuts HUS-596135701
...
117
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
118
Hardware HUS-596040501
