product name

Husqvarna GTH 250 (954140104A) (1999-09) Ride Mower

Model: GTH 250 (954140104A) (1999-09)

Back To Assemblies

Save Part Not Listed?

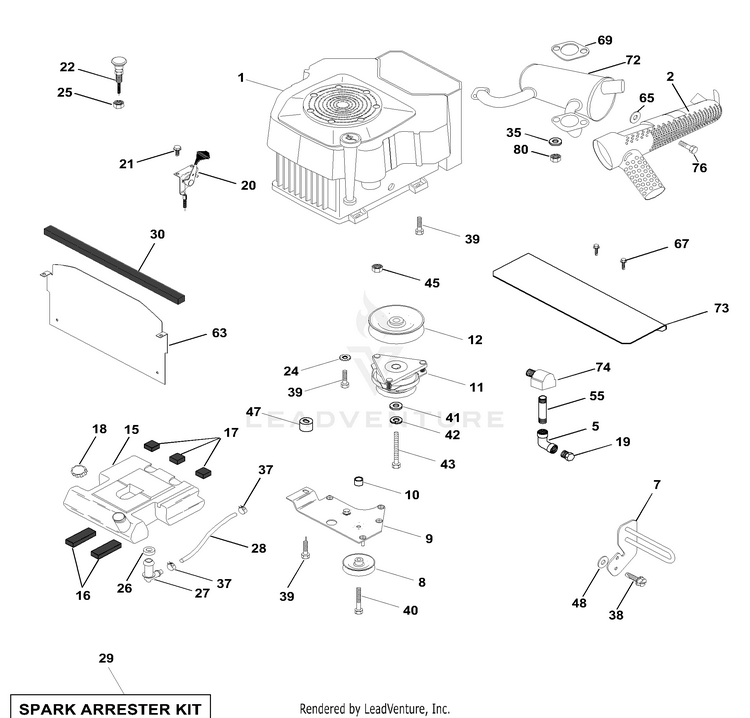

product name

Engine

...
...
2
MUFFLER SIDE HUS-532150249
...
5
VALUE.OIL.DRAIN HUS-532428287
...
7
MUFFLER ASSEMBLY GUARD HUS-532151396
...
8
PULLEY.IDLER.V. HUS-532139123
...
9
KEEPER ASM BELT ENGINE HUS-532177748
...
10
BUSHING HUS-532105432
...
11
CLUTCH KIT HUS-532174509
...
12
PULLEY ENG VGT ELECT CLUTCH HUS-532143996
...
15
FUEL TANK 3.5G HUS-532151346
...
16
PAD IDLER TI HUS-532109227
...
17
PAD-SPACER LT HUS-532106082
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
19
PLUG T (Order From Engine Manufacturer) HUS-813290300
...
20
CONTROL.THROTTLE 37.90 HUS-532162150
...
21
Bolts HUS-596582501
...
22
CONTROL, CHOKE HUS-532145996
...
24
SCREW.3/8-16 HUS-817060620
...
25
Nut Keps 3/8-24 unf HUS-873920600
...
26
BUSHING OUTLET T HUS-532003645
...
27
STEM FUEL TANK HUS-532139277
...
28
FUEL LINE 42" HUS-532008542
...
29
SPARK ARRESTOR HUS-532132920
...
30
EXTRUSION HOOD HUS-532161547
...
35
WASHER HUS-810010500
...
37
HOSE CLAMP HUS-532123487
...
38
SCREW.3/8-16 HUS-817060620
...
39
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
40
Screw TT 3/8-16 x 4 UNC HUS-817490664
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
43
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
45
Nuts HUS-596433401
...
47
SPACER.ENGINE.CV22.ROUND.PM HUS-532142040
...
48
Washer 13/32 x 1-1/4 x 7 Ga. HUS-819132007
...
55
Nipple, Pipe 4-1/2" HUS-813280336
...
63
SHIELD, HEAT VGT YP/HUSQ HUS-532145549
...
65
Washers HUS-596140201
...
67
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
69
GASKET.KOHLER HUS-532163307
...
72
DECAL HUS-532150520
...
73
SHIELD HEAT MUFFLER HUS-532153992
...
74
ELBOW STREET BRASS HUS-532162295
...
76
SCREW, 3/8-16X3/4 HUS-817000612
...
80
Nuts HUS-596433401
