Husqvarna GTH 2250 B (954567093) (2001-02) Ride Mower

Model: GTH 2250 B (954567093) (2001-02)

Back To Assemblies

Save Part Not Listed?

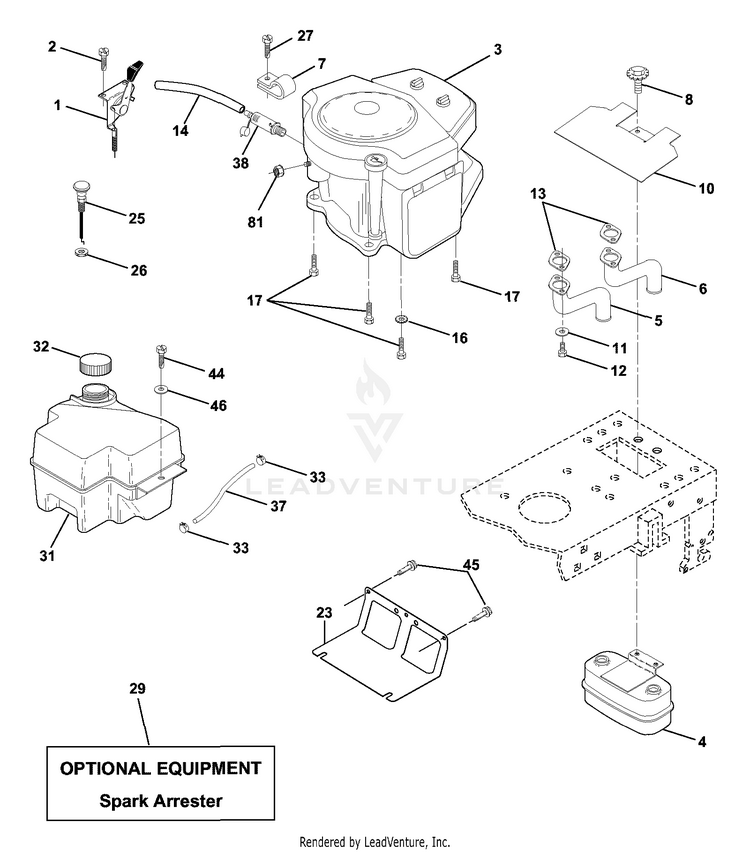

product name

Engine

...
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
8
PULLEY.IDLER.V. HUS-532139123
...
9
KEEPER ASM BELT ENGINE HUS-532177748
...
10
BUSHING HUS-532175287
...
11
CLUTCH KIT HUS-532174509
...
12
PULLEY ENG VGT ELECT CLUTCH HUS-532143996
...
15
FUEL TANK 3.5G HUS-532151346
...
16
PAD IDLER TI HUS-532109227
...
17
PAD-SPACER LT HUS-532106082
...
18
CAP, FUEL GUAGE HUS-532161493
...
20
CONTROL.THROTTLE.BLACK HUS-532175437
...
21
SCREW.HI-LO#13-16X5/8 HUS-532189747
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532175440
...
24
Washers HUS-596238701
...
25
Nut Keps 3/8-24 Unf HUS-873920600
...
26
BUSHING OUTLET T HUS-532003645
...
27
STEM FUEL TANK HUS-532139277
...
28
FUEL LINE 42" HUS-532008542
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
35
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
37
HOSE CLAMP HUS-532123487
...
39
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
40
Screw TT 3/8-16 x 4 UNC HUS-817490664
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
43
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
47
BUSHING HUS-532175288
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
69
GASKET.MUFFLER HUS-532165391
...
70
TUBE.EXHAUST.B&S.VGT.LH HUS-532176069
...
71
TUBE.EXHAUST.B&S.VGT.RH HUS-532176070
...
74
ELBOW STREET BRASS HUS-532162295
...
79
Screws HUS-596134201
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
82
VALUE.OIL.DRAIN HUS-532428287
...
83
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
84
SCREW 3/8-16 X 1-1/2 HUS-817060624
