Husqvarna GTH 220 (954830167B) (1996-05) Ride Mower

Model: GTH 220 (954830167B) (1996-05)

Back To Assemblies

Save Part Not Listed?
product name

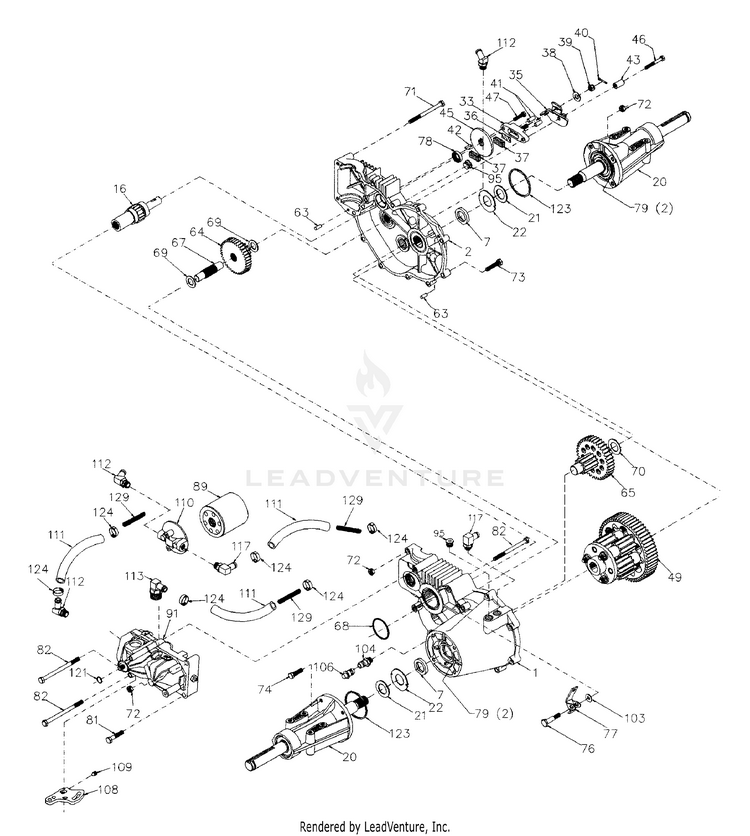

Transaxle Hydro Gear Model Number 218-3010

...
...
1
HOUSING.TRANSAXLE.70536 HUS-532142874
...
2
ASSEMBLY, RH HOUSING HUS-532142875
...
7
SEAL.OIL.44782.HY (44782) HUS-532153765
...
16
BRAKE SHAFT KIT #62877 HUS-532142876
...
20
AXLE.MOUNTING.HORN.70087 HUS-532142877
...
21
WASHER 44805 HUS-532142878
...
22
WASHER HUS-532142879
...
33
YOKE.BRAKE.62589 HUS-584289701
...
35
BRACE ARM 50214 HUS-532142880
...
36
PLATE.PUCK.44134 HUS-584289601
...
37
BRAKE PUCK (44132) HUS-532142883
...
38
WASHER .34X.88X.06.44130 HUS-532142884
...
39
CASTLE NUT HUS-532142885
...
40
PIN.COTTER.44101. HUS-532142886
...
41
PIN.BRAKE.31X.73.PLATED.44127 HUS-584287501
...
42
KEY.HIPRO.44143 HUS-532142888
...
43
SPACER 50259 HUS-532142889
...
45
BRAKE.DISC.44090. HUS-532142890
...
46
BOLT 44276 HUS-532142891
...
47
SCREW 1/4-20X1 PATCH 44433 HUS-584281501
...
49
DIFFERENTIAL ASSEMBLY HUS-532153766
...
63
DOWEL.PIN.44757.HYDRO HUS-532142894
...
64
REDUCTION GEAR/14-38 TEETH HUS-532150818
...
65
PINION DR FINAL 70051 HUS-532142897
...
67
JACKSHAFT.44779.HYDRO HUS-532142898
...
68
O-RING #44781 HUS-532142899
...
69
WASHER.44795. HUS-532142900
...
70
WASHER.44794.HYDRO HUS-532142901
...
71
BOLT HXHD 44827 HUS-532142902
...
72
NUT 5/16-18 HEX LOCK 43064 HUS-532153767
...
73
TORX.SCREW. 50868 HUS-532161159
...
74
HEX CAP SCREW, 5/16-18X1 HUS-532142905
...
76
BOLT.SHOULDER.44785. HUS-532142907
...
77
FREE WHEEL ACTUATING ARM 44786 HUS-532142908
...
78
SEAL OIL 70719 HUS-532142909
...
79
SHELL, GREASE #50416 HUS-532126976
...
81
BOLT HUS-532142910
...
82
BOLT 5/16 44820 HUS-532142911
...
89
FILTER.SPIN.51563 HUS-532182642
...
91
PUMP.BDU-10L-122 HUS-532153769
...
95
PLUG.9005110-5600 HUS-532142914
...
103
WASHER 50169 HUS-532142916
...
104
VENT CAP 70109 HUS-532142578
...
106
O-RING KIT 70110 HUS-532142918
...
108
ARM CONTROL 45007 HUS-532142919
...
109
SCREW.SET.50018 HUS-532142920
...
110
FILTER HEAD 50207 HYDRO HUS-532142921
...
111
HOSE HUS-532150820
...
112
FITTING HUS-532150823
...
113
FITTING, 1/2" BEADED 60 -9/16 HUS-532150821
...
117
FITTING.SAE.50589.HYDRO GEAR HUS-532150822
...
123
O-RING 50405 HUS-532150824
...
124
CLAMP 50590 HUS-532150825
...
129
SPRING.LONG.50667 HUS-532153771
