Husqvarna GTH 220 (954830167B) (1996-05) Ride Mower

Model: GTH 220 (954830167B) (1996-05)

Back To Assemblies

Save Part Not Listed?
product name

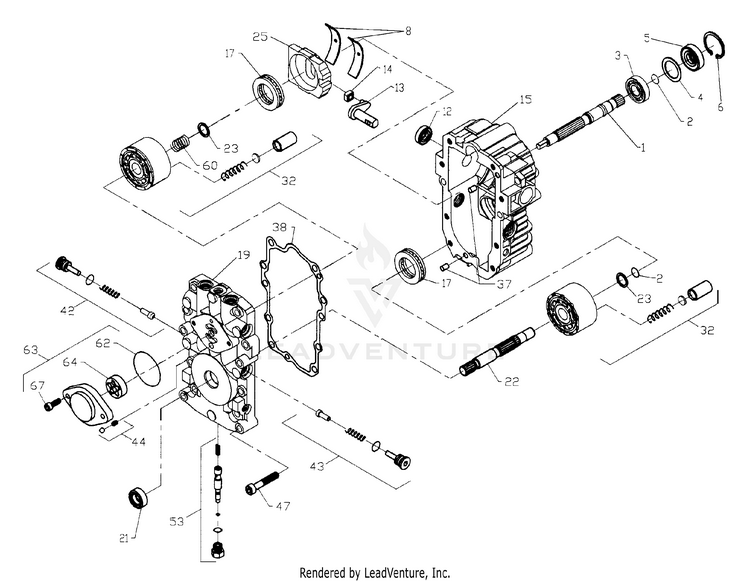

Transaxle Pump- Model Number BDU- 10L-122

...
...
1
SHAFT, PUMP HUS-532144569
...
2
RING RETAINING 2003016 HUS-532142928
...
3
BALL BEARING 2003043 HUS-532122745
...
4
SPACER HUS-532122715
...
5
SEAL.LIP.H-G.(9008000-0128) HUS-532142932
...
6
RETAINING PIN HUS-532122699
...
8
CRADLE BEARING HUS-532122767
...
12
SEAL LIP HUS-532122717
...
13
TRUNION ARM HUS-532122748
...
14
GUIDE 2000015 HYD HUS-532122749
...
15
HOUSING KIT, TRANSMISSION HUS-532144571
...
17
BEARING, THRUST 50551 HUS-532150771
...
19
CENTER SECTION KIT HUS-532153801
...
21
LIP SEAL 9008000-0127 HUS-532122722
...
22
SHAFT MOTOR 2003034 HUS-532144573
...
23
WASHER HUS-532142978
...
25
SWASHPLATE,VARIAB HUS-532127148
...
32
KIT CYLINDER #70331 HUS-532169898
...
37
PIN HUS-532122786
...
38
GASKET 2003060 HUS-532122718
...
42
CHECK VALVE KIT 2510050 HUS-532144578
...
43
CHECK VALVE KIT 2510050 HUS-532144578
...
44
CHARGE RELIEF KIT 2510011 HUS-532144579
...
47
SCREW HUS-532122752
...
53
KIT,BYPASS VALVE(2513011) HUS-532127153
...
60
SPRING 2003014 HUS-532142977
...
62
O-RING.HYDRO GEAR.9004101-1340 HUS-532144581
...
63
CHARGE PUMP KIT HUS-532144582
...
64
GEROTOR ASM.(50273) HUS-583031201
...
67
SCREW, SOCKET HEAD CAP HUS-532144584
...
xx
PUMP.BDU-10L-122 HUS-532153769
