Husqvarna GTH 220 (954140012D) (1998-07) Ride Mower

Model: GTH 220 (954140012D) (1998-07)

Back To Assemblies

Save Part Not Listed?
product name

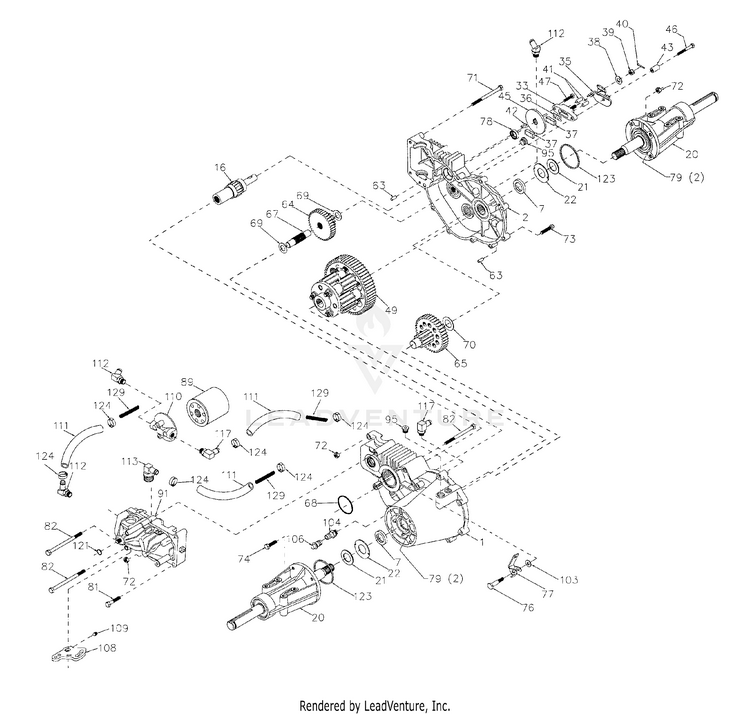

Transaxle Hydro Gear

...
...
1
Assembly, Housing, LH HUS-164591
...
2
Assembly, Housing, RH HUS-164592
...
7
Oil Seal .984 x 1.5 x .25 HUS-153765
...
16
Brake Shaft Assembly HUS-142876
...
20
Axle Mounting Horn Assembly HUS-142877
...
21
Washer 1.0 x 1.63 x .08 HUS-142878
...
22
Washer 1.0 x 2.06 x .09 HUS-142879
...
33
Brake Yoke Assembly HUS-142929
...
35
Brake Arm HUS-142880
...
36
Puck Plate HUS-142882
...
37
Brake Puck HUS-142883
...
38
Washer 7/8 O.D. x 7/16 x .060 HUS-142884
...
39
Nut, Castle 5/16-24 HUS-142885
...
40
Cotter Pin HUS-142886
...
41
Brake Actuating Pin HUS-142887
...
42
Hi Pro Key HUS-142888
...
43
Spacer HUS-142889
...
45
Brake Disc HUS-142890
...
46
Bolt 1/4-20 x 1-1/2 HUS-142891
...
47
Bolt 1/4-20 x 1 HUS-142892
...
49
Differential Assembly HUS-153766
...
63
Dowel Pin HUS-142894
...
64
Reduction Gear, 14 Teeth to 38 Teeth HUS-150818
...
65
Final Drive Pinion Assembly HUS-142897
...
67
Jackshaft HUS-142898
...
68
O-Ring HUS-142899
...
69
Washer 5/8 X 1-5/32 HUS-142900
...
70
Washer 7/8 X 1-1/2 HUS-142901
...
71
Bolt, Hex 5/16-18 x 3.5 HUS-142902
...
72
Locknut, Hex 5/16-18 HUS-153767
...
73
Bolt, Hex 5/16-18 x 1-1/2 HUS-142904
...
74
Hex Cap Screw 5/16-18 x 1 HUS-142905
...
76
Shoulder Bolt HUS-142907
...
77
Freewheel Actuating Arm HUS-142908
...
78
Oil Seal .625 x 1.0 x .25 HUS-142909
...
79
Grease (10 oz. Tube) HUS-153768
...
81
Bolt, Hex 5/16-18 x 1-3/4 HUS-142910
...
82
Bolt 5/16-18 x 4-1/2 HUS-142911
...
89
Filter, Spin On HUS-142912
...
91
Pump, BDU-10L-122 HUS-153769
...
95
Plug, Straight Thread HUS-142914
...
96
60° 7/18 SAE x 5/16 Fitting HUS-153770
...
103
Washer HUS-142916
...
104
Vent Cap Assembly HUS-142917
...
106
Fitting O-Ring Assembly HUS-142918
...
108
Control Arm HUS-142919
...
109
Set Screw HUS-142920
...
110
Filter Head HUS-142921
...
111
Hose 1/2" HUS-150820
...
112
Fitting, 1/2" Beaded 90° 7/8 SAE HUS-150823
...
113
Fitting, 1/2" Beaded 60° 9/16 HUS-150821
...
117
Fitting, 1/2" Beaded 90° 9/16 HUS-150822
...
123
O Ring HUS-150824
...
124
Pinch Clamp HUS-150825
...
129
Spring, Long HUS-153771
