Husqvarna GTH 220 (9540020022A) (1995-05) Ride Mower

Model: GTH 220 (9540020022A) (1995-05)

Back To Assemblies

Save Part Not Listed?
product name

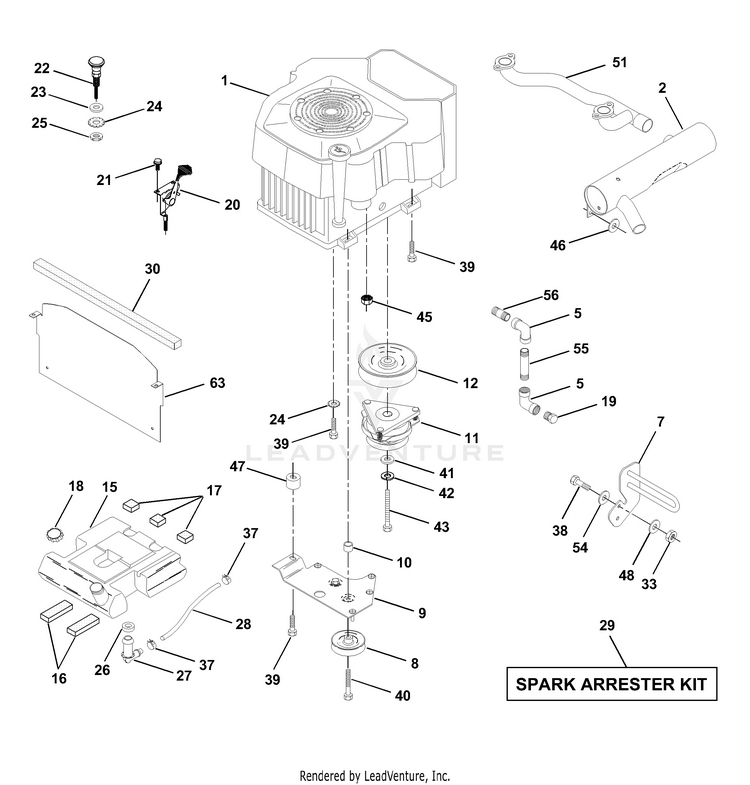

Engine

...
...
2
MUFFLER HUS-532161062
...
5
VALUE.OIL.DRAIN HUS-532428287
...
7
MUFFLER GUARD HUS-532143599
...
8
PULLEY.IDLER.V. HUS-532139123
...
9
KEEPER ASM BELT ENGINE HUS-532177748
...
10
BUSHING HUS-532105432
...
11
CLUTCH KIT HUS-532174509
...
12
PULLEY ENG VGT ELECT CLUTCH HUS-532143996
...
15
FUEL TANK 3.5G HUS-532151346
...
16
PAD IDLER TI HUS-532109227
...
17
PAD-SPACER LT HUS-532106082
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
19
PLUG T (Order From Engine Manufacturer) HUS-813290300
...
20
CONTROL.THROT.RH.BLK.FLG.44.75 HUS-532132748
...
21
Bolts HUS-596582501
...
22
CHOKE CONTROL HUS-532132781
...
23
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
24
Washers HUS-596238701
...
25
NUT HUS-873610600
...
26
BUSHING OUTLET T HUS-532003645
...
27
STEM FUEL TANK HUS-532139277
...
28
FUEL LINE 42" HUS-532008542
...
29
SPARK ARRESTOR HUS-532132920
...
30
FOAM-STRIP LT HUS-532105037
...
33
Nuts HUS-596322601
...
37
HOSE CLAMP HUS-532123487
...
38
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
39
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
40
Screw TT 3/8-16 x 4 UNC HUS-817490664
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
43
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
45
NUT.HEX..25-20.UNC HUS-532050675
...
46
Washers HUS-596140201
...
47
SPACER.ENGINE.CV22.ROUND.PM HUS-532142040
...
48
Washer 13/32 x 1-1/4 x 7 Ga. HUS-819132007
...
51
MANIFOLD PIPE VGT HUS-532161230
...
54
WASHER HUS-819131414
...
55
Nipple, Pipe 4-1/2" HUS-813280336
...
56
NIPPLE, PIPE 3/8 NPTX1.00 HUS-813090308
...
63
SHIELD, HEAT VGT YP/HUSQ HUS-532145549
