Husqvarna GTH 220 (9540020022A) (1995-05) Ride Mower

Model: GTH 220 (9540020022A) (1995-05)

Back To Assemblies

Save Part Not Listed?
product name

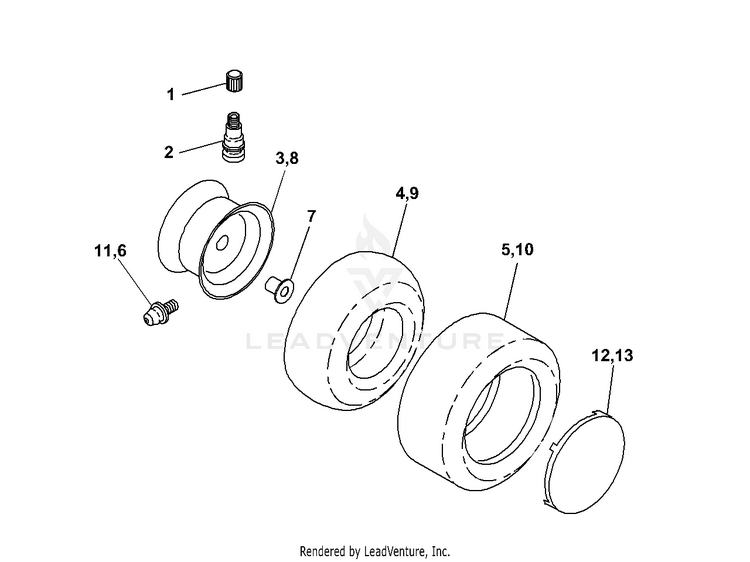

Wheels & Tires

...
...
1
VALVE CAP HUS-532059192
...
2
VALVE STEM LT HUS-532065139
...
3
RIM.ASM.8X5.FRONT.SILVER HUS-532148736
...
4
TUBE.16X6.5/7.5-8 (Service Item Only) HUS-532008134
...
5
TIRE.16X6.5-8.TURF.SAVER.FRONT HUS-532122075
...
6
FITTING LT. HUS-532000278
...
7
BEARING.FLANGE (Front Wheel Only) HUS-532009040
...
8
RIM.ASM.12X7.REAR.WHITE HUS-532141625
...
9
TUBE.23X9.5-12 (Service Item Only) HUS-532007154
...
10
TIRE.23X10.5-12.TURF.SAVER.REA HUS-532122077
...
11
ZERK FITTING M HUS-532124860
...
12
CAP,HUB REAR HUS-532124578
...
13
COVER,WHEEL HUS-532124579
...
xx
6, 24OZ PNUEMASEAL BOTTLES HUS-576707201
