Husqvarna GT52 XLS - 96043020600 (2014-10) Riding Tractor

Model: GT52 XLS - 96043020600 (2014-10)

Back To Assemblies

Save Part Not Listed?
product name

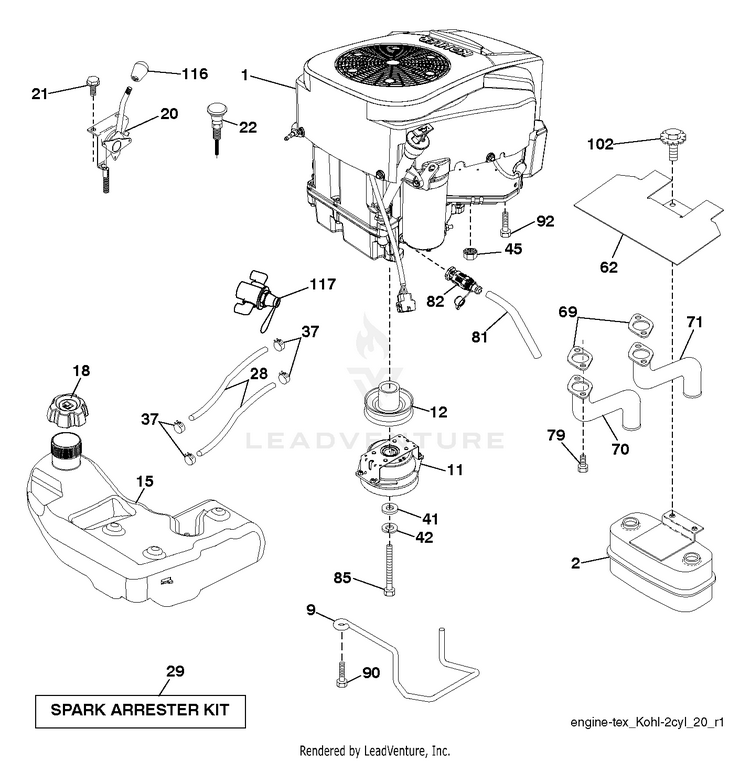

ENGINE

...
...
18
FUEL CAP Fits 2.00" filler neck HUS-529989701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
117
VALVE FUEL RESERVE HUS-532420828
...
69
GASKET.EXHAUST.KOHL.CV18-CV26 HUS-532186054
...
42
Washers HUS-596238901
...
1
ENGINE MODEL NUMBER KT747-3011 (585453601) HUS-000000000
...
12
PULLEY ENGINE HUS-532194343
...
21
SCREW.#10X.750 (2 2) HUS-583533301
...
15
TANK ASSY W/CAP 4 GAL REAR EPA Fits 2.75" filler neck HUS-529999002
...
71
PIPE.EXHAUST.RH.CV18/20 RH HUS-583954801
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
18
CAP ASSY FUEL 3" GRAY Fits 2.75" filler neck HUS-585124801
...
70
PIPE.EXHAUST.LH.CV18/20 LH HUS-583954501
...
20
THROTTLE.KOHL.PRO.#88PAD_46" (587631703) THROTTLE CONTROL HUS-587631703
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
41
WASHER HUS-532126197
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
92
SCREW 3/8-16X1 HUS-817120616
...
79
Screws HUS-596134201
...
82
VALUE.OIL.DRAIN HUS-532428287
...
90
SCREW 3/8-16X1 HUS-817000616
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
37
HOSE CLAMP HUS-532123487
...
11
CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335
...
9
KEEPER BELT ENGINE HUS-532408667
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
116
KNOB - SHIFT HUS-539132624
