Husqvarna GT52 XLS - 96043015903 (2015-09) Riding Tractor

Model: GT52 XLS - 96043015903 (2015-09)

Back To Assemblies

Save Part Not Listed?
product name

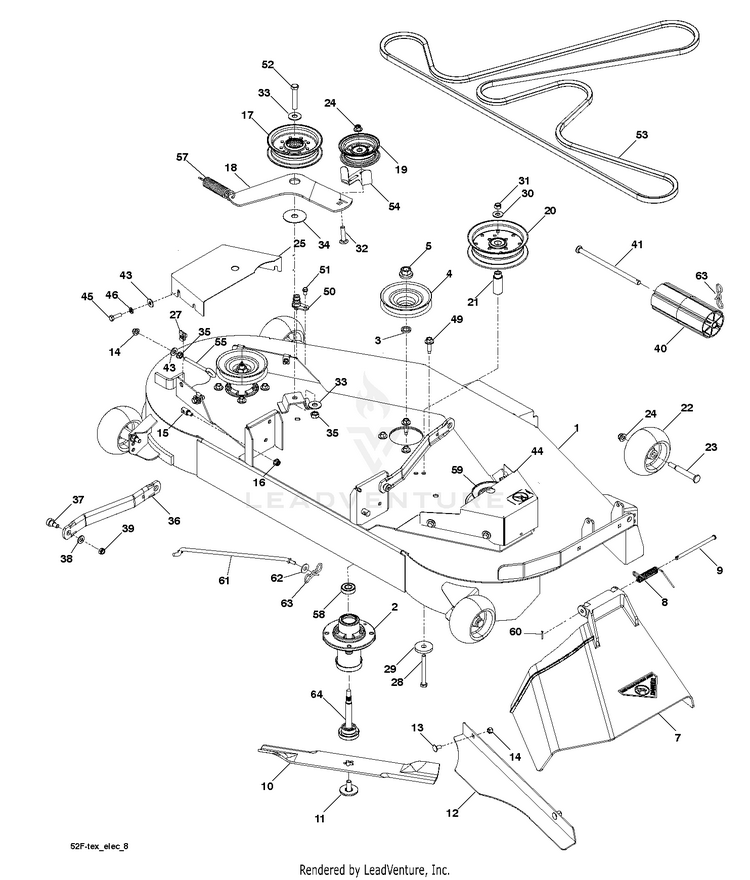

MOWER DECK / CUTTING DECK

...
...
58
BEARING HUS-532110485
...
29
Washers HUS-596770301
...
28
HCS 3/8-16 X 3-1/2 GR5 ZD HUS-539108271
...
1
DECK.SVC.WLDT.54CC.428 HUS-591350101
...
43
GSPH HUS-596134901
...
45
Bolts HUS-596580801
...
59
RP PULLEY, COLLECTION 48 HUS-575352901
...
33
Washers HUS-596437601
...
21
BUSHING, IDLER HUS-575224501
...
60
GSPW Retainers HUS-596029401
...
53
BELT, 143.5" EL HUS-574845603
...
22
WHEEL GAGE DONUT HUS-532133957
...
34
WASHER HUS-532178515
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
57
Springs HUS-596645601
...
40
NOSE ROLLER 48" HUS-532176066
...
2
MANDREL ASM, CAST IRON HUS-539131898
...
50
PORT.WASHOUT HUS-532415598
...
14
Hardware HUS-596040501
...
64
MANDRELS HUS-597023501
...
37
Bolts HUS-596241101
...
--
COUPLING.QUICK CONNECT HUS-532416405
...
52
Bolts HUS-596435201
...
51
Screws HUS-596437001
...
46
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
18
ARM, IDLER, 52" BLK HUS-574841802
...
25
SHIELD.BELT.LH.ORANGE HUS-575224702
...
36
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
13
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
8
Springs HUS-596646001
...
41
Rods HUS-594092501
...
9
Pins HUS-595935501
...
19
PULLEY.IDLER.FLAT HUS-532177968
...
39
Nuts HUS-596230801
...
62
GSPH HUS-596134901
...
55
GSPW Bolts HUS-596240801
...
38
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
20
Pulleys HUS-589766102
...
11
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
12
PLATE.52".CONFINEMENT.BLACK HUS-574875002
...
4
PULLEY.DRIVEN.DECK.48' HUS-532174375
...
32
RHSNB 3/8-16X1-3/4 HUS-539990923
...
49
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
GSPW Nuts HUS-596240901
...
7
DISCHARGE CHUTE 52" HUS-539110733
...
17
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
54
SERVICE KIT GUARD HUS-531165901
...
15
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
35
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
44
SHIELD.BELT.RH.52.ORANGE HUS-575967302
...
5
Nuts HUS-596134801
...
24
GSPW Nuts HUS-521996502
...
30
GSPW Washers HUS-596433701
...
23
Bolts HUS-596434404
...
10
BLADE, 17.75 X 2.5 X .25 HUS-574870801
...
--
DECK.SVC.WLDT.54CC.428 HUS-591350101
...
27
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
61
Rods HUS-596274401
...
63
PIN.COTTER.5/16.BOW TI HUS-532194208
