Husqvarna GT52 XLS - 96043015903 (2015-09) Riding Tractor

Model: GT52 XLS - 96043015903 (2015-09)

Back To Assemblies

Save Part Not Listed?
product name

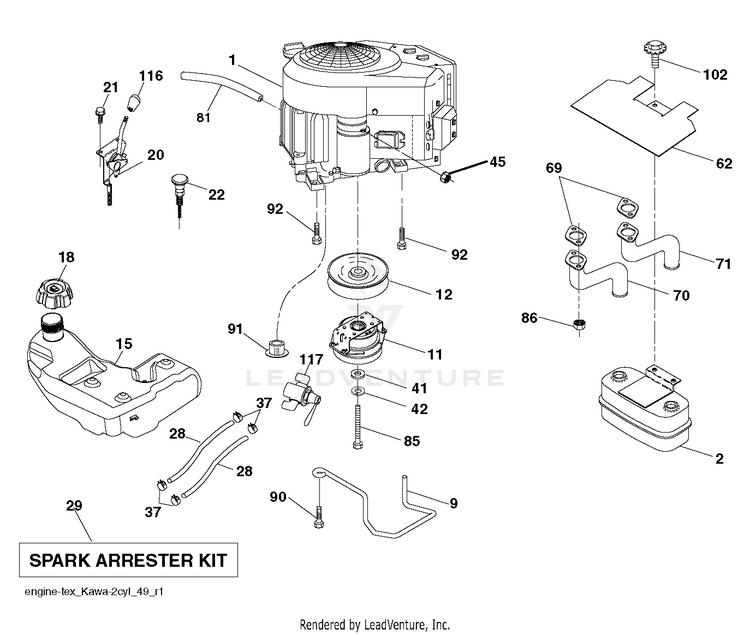

ENGINE

...
...
70
TUBE.EXHAUST.LH.FR961/FR730 LH HUS-583955601
...
116
KNOB - SHIFT HUS-539132624
...
21
Screws HUS-596321701
...
71
TUBE.EXHAUST.RH.FR961/FR730 RH HUS-583955701
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
90
SCREW 3/8-16X1 HUS-817000616
...
18
FUEL CAP Fits 2.00" filler neck HUS-529989701
...
12
PULLEY ENGINE HUS-532194343
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
117
VALVE FUEL RESERVE HUS-532420828
...
69
GASKET HUS-532178151
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
42
Washers HUS-596238901
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
91
BUSHING.1.375OD HUS-532187495
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
41
WASHER HUS-532126197
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
92
SCREW 3/8-16X1 HUS-817120616
...
37
HOSE CLAMP HUS-532123487
...
1
ENGINE KAWA MODEL NO. FR730-DS04 (445363) HUS-000000000
...
15
TANK ASSY W/CAP 4 GAL REAR EPA Fits 2.75" filler neck HUS-529999002
...
18
CAP ASSY FUEL 3" GRAY Fits 2.75" filler neck HUS-585124801
...
85
BOLT.HEX.7/16-20X3.0XGR5 HUS-581636201
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 HUS-587241401
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
9
KEEPER BELT ENGINE HUS-532408667
