product name

Husqvarna GT4418A (1994) Tractor

Model: GT4418A (1994)

Back To Assemblies

Save Part Not Listed?
product name

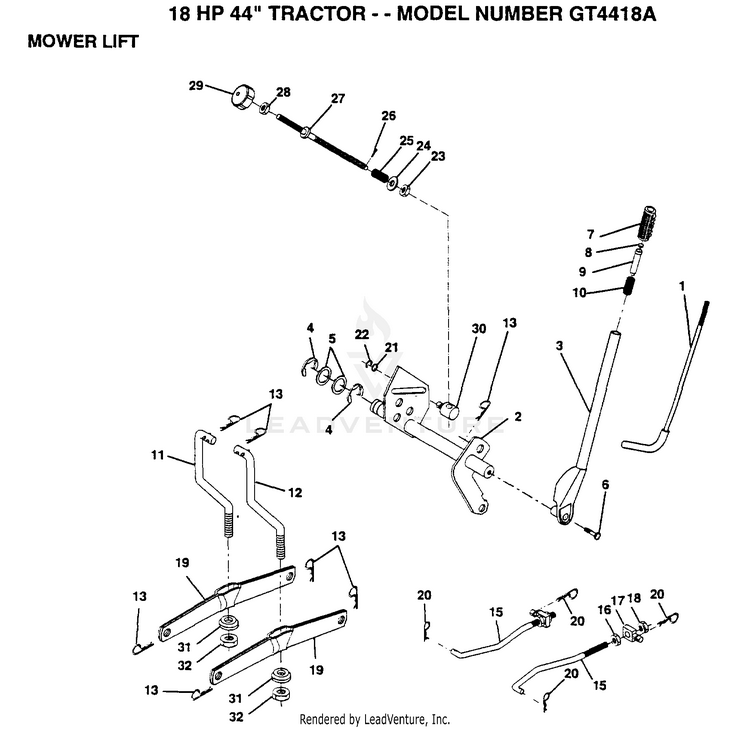

MOWER LIFT

...
...
1
LEVER ROD LT HUS-121006X
...
2
SHAFT LIFT W/IND HUS-140673
...
3
SUB= 123096X HUS-121002X
...
4
E-RING HUS-12000022
...
5
WASHER HUS-19292016
...
6
"BOLT,HEX" HUS-74780624
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-124526X
...
9
SUB= 125925X HUS-122364X
...
10
SPRING T HUS-2876H
...
11
LINK LIFT LH HUS-141047
...
12
LINK LIFT RH HUS-141048
...
13
SUB= 85902 HUS-4939M
...
15
LINK.FRONT HUS-127218
...
16
NUT HUS-73350800
...
17
TRUNION HUS-130171
...
18
NUT.LK.W/WSH.1/2. HUS-73800800
...
19
ARM SUSP REAR HUS-139868
...
20
RETAINER.SPRING HUS-3146R
...
21
WASHER HUS-19151216
...
22
KLIP RING HUS-12000037
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING T HUS-2876H
...
26
SUB= 3145 HUS-76020308
...
27
ROD LIFT LT HUS-110729X
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
30
TRUNION LT HUS-110810X
...
31
BEARING PVT LH HUS-140302
...
32
NUT.LOCK.3/8-24 HUS-73810600
