Husqvarna GT4418A (1994) Tractor

Model: GT4418A (1994)

Back To Assemblies

Save Part Not Listed?
product name

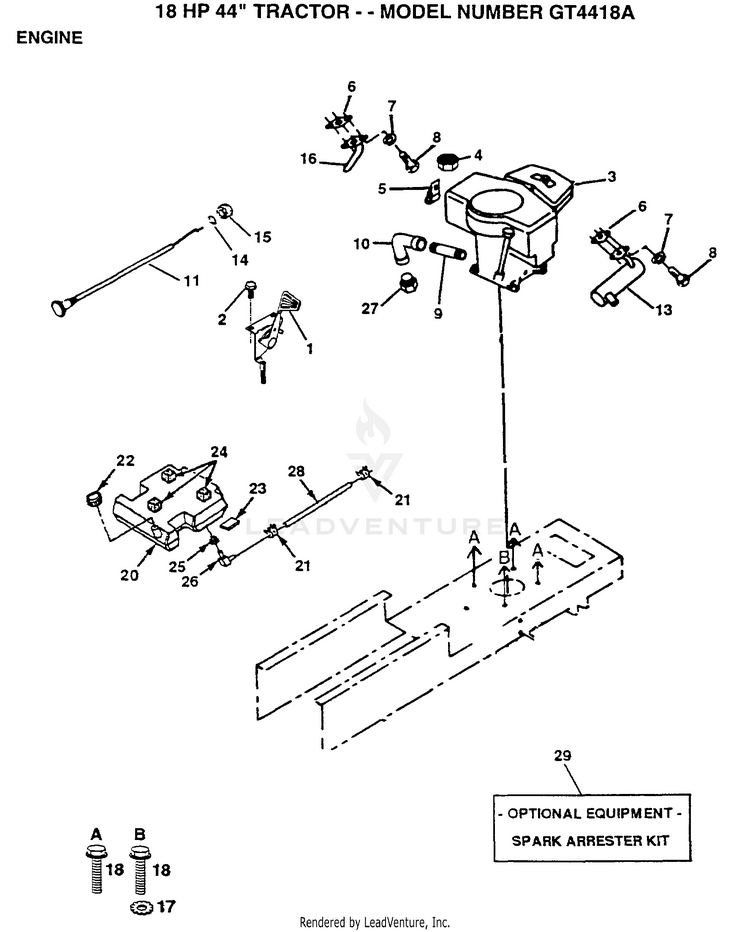

ENGINE

...
...
1
CONTROL.THROTTL HUS-137214
...
2
SCREW LT HUS-17720410
...
3
ENGINE B&S 18HP HUS-422707
...
4
NUT HUS-73510600
...
5
CLIP T HUS-2751R
...
6
SUB= 272250 HUS-8545J
...
7
LOCKWASHER HUS-10040400
...
8
SUB= 74780414 HUS-74780412
...
9
PIPE NIPPLE LT HUS-13280336
...
10
ELBOW HUS-13200300
...
11
CHOKE CONTROL HUS-132779
...
13
MUFFLER HYT HUS-108373X
...
14
LOCKWASHER HUS-11050600
...
15
SUB= 7810H HUS-73610600
...
16
EXHAUST TUBE T HUS-100229L
...
17
LOCKWASHER HUS-11050600
...
18
SCREW LT HUS-17490624
...
20
TANK FUEL 1.9 NAT HUS-141291
...
21
HOSE CLAMP HUS-123487X
...
22
CAP ASM FUEL HUS-140527
...
23
PAD IDLER TI HUS-109227X
...
24
PAD-SPACER LT HUS-106082X
...
25
BUSHING OUTLET T HUS-3645J
...
26
STEM.TANK.FUEL HUS-139277
...
28
FUEL LINE T HUS-8543R
...
29
SUB= 532137180 HUS-137180
