Husqvarna GT2254 - 96025000202 (2005-06) Riding Tractor

Model: GT2254 - 96025000202 (2005-06)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
42
Washers HUS-596238901
...
8
PULLEY.IDLER.V. HUS-532139123
...
71
TUBE.EXHAUST.B&S.VGT.RH HUS-532176070
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
39
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
40
Screw TT 3/8-16 x 4 unc HUS-817490664
...
47
BUSHING HUS-532175288
...
20
CONTROL.THROTTLE.BLACK HUS-532175437
...
15
TANK.FUEL.5.0 LEFT.FILL.YTGT HUS-532179115
...
69
GASKET.MUFFLER HUS-532165391
...
41
WASHER HUS-532126197
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
31
PUSH CLIP HUS-532145006
...
28
LINE.FUEL.35.25" HUS-532188669
...
11
CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
84
SCREW 3/8-16 X 1-1/2 HUS-817060624
...
83
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
12
PULLEY ENG VGT ELECT CLUTCH HUS-532143996
...
10
BUSHING HUS-532175287
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
37
HOSE CLAMP HUS-532123487
...
9
KEEPER ASM BELT ENGINE HUS-532177748
...
70
TUBE.EXHAUST.B&S.VGT.LH HUS-532176069
...
26
BUSHING OUTLET T HUS-532003645
...
27
STEM FUEL TANK HUS-532139277
...
81
TUBE, DRAIN, OIL HUS-532188800
...
79
Screws HUS-596134202
...
18
FUEL CAP HUS-532179124
...
21
Screws HUS-596321701

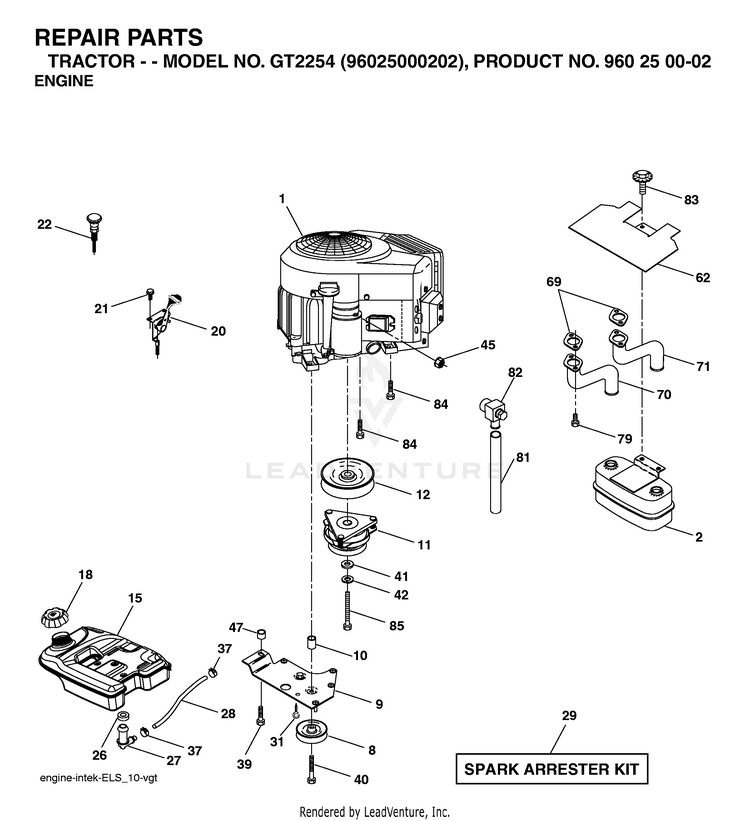

Schematic Image Zoomed
