Husqvarna GT2254 - 96025000200 (2005-05) Riding Tractor

Model: GT2254 - 96025000200 (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

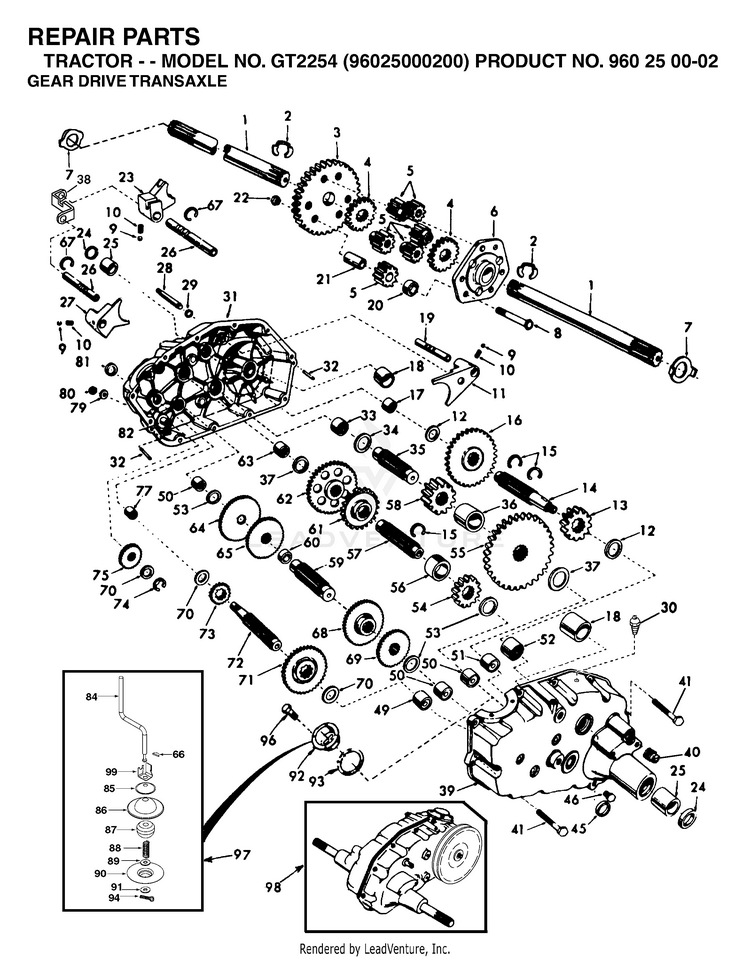

TRANSMISSION

...
...
39
GEARCASE.ASM.LH.W/BRG TRACTOR HUS-532174729
...
55
GEAR HUS-532004213
...
64
LOW SPEED GEAR HUS-532004203
...
68
GEAR.SPEED.INTERMEDIATE.T/A HUS-532004205
...
81
SEAL HUS-532006270
...
91
Washer 9/16 x 15/16 x 12 Gauge HUS-819181511
...
30
VALVE M HUS-532005855
...
67
Snap Ring, Crescent Type HUS-812000033
...
5
DIFF PINION T HUS-532004215
...
59
GEAR SHAFT T HUS-532004194
...
79
WASHER T HUS-532001167
...
46
PIPE PLUG HUS-813060200
...
50
NEEDLE BRNG T HUS-532004222
...
28
SHIFT SHAFT HUS-532122254
...
85
CAP T HUS-532002978
...
65
GEAR.REVERSE.T HUS-532004204
...
94
Pins HUS-596029501
...
70
THRUST WASHER HUS-532001370
...
41
BOLT.5/16-18X1.25 HUS-817580520
...
45
SEAL T HUS-532006271
...
52
BEARING STD HUS-532008119
...
56
PINION SPACER T HUS-532004442
...
69
GEAR.HIGH SPEED HUS-583750601
...
58
FINAL PINION T HUS-532004214
...
93
GASKET T HUS-532006274
...
80
NUT.ASF.HEX.7/16 HUS-873610700
...
73
LO SPEED PINION T HUS-532004201
...
7
WASHER.AXLE HUS-532174728
...
18
BEARING HUS-532008740
...
74
KLIP RING HUS-812000008
...
75
IDLER GEAR T HUS-532001153
...
84
GEAR SHIFT LVR T HUS-532005384
...
8
Bolt, Hex Head 3/8-24 x 3-1/4 (1" Thread Length) HUS-874020652
...
6
DIFF CARRIER T HUS-532004217
...
53
BRNG RACE T HUS-532004220
...
92
GEAR SHIFT GATE T HUS-532000075
...
62
RED GEAR T HUS-532124665
...
35
GEAR SHAFT T HUS-532004198
...
60
SPACER T HUS-532007528
...
63
RACE T HUS-532007398
...
97
LEVER.ASM.SHIFT HUS-532194121
...
26
SHAFT SHIFT FORK HUS-532139111
...
86
COVER HUS-532063385
...
40
Pipe Plug 1/2-14 N.P.T. HUS-813320400
...
13
PINION HUS-532004212
...
89
Washers HUS-594976501
...
17
BEARING T HUS-532008118
...
4
DIFF GEAR T HUS-532004216
...
87
GUIDE BALL HUS-532008739
...
71
GEAR.CLUSTER.GT. HUS-532063369
...
36
SPACER, 4TH REDUCTION GEAR HUS-532004200
...
10
KIT.SPRING.GT/TIL HUS-532145359
...
90
SEAL.SHIFT HUS-532110542
...
14
GEAR SHAFT HUS-532137125
...
77
NEEDLE BEARING TI HUS-532006803
...
31
GEARCASE.RH.W/BEARING.GT HUS-532174731
...
3
TRANSAXLE 6SP HUS-532184956
...
9
KIT.STEEL BALL(12 BALLS) HUS-532100482
...
22
NUT HUS-873610600
...
15
SNAP RING HUS-532006276
...
11
NLA SHIFT FORK T HUS-532004985
...
2
Ring, Klip Truarc #5304-75 HUS-812000034
...
82
SHAFT REVERSE IDL HUS-532136984
...
66
KEY T HUS-532002898
...
61
PINION HUS-532004208
...
16
GEAR HUS-532063363
...
37
RACE T HUS-532007395
...
88
SPRING TI HUS-532004924
...
49
BEARING HUS-532004895
...
24
OIL SEAL HUS-532007393
...
12
WASHER THRUST HUS-532006266
...
32
PIN T HUS-532006277
...
34
WASHER RACE BEARING THRUST HUS-532007396
...
21
PINION HUS-532006252
...
29
SEAL.OIL.SHAFT.SHIFT.T HUS-532006269
...
20
SPACER T HUS-532004218
...
57
GEAR SHAFT T HUS-532004195
...
27
SHIFT FORK T HUS-532004986
...
54
RED PINION T HUS-532004209
...
19
SHAFT HUS-532122238
...
51
NEEDLE BRNG T HUS-532001529
...
23
FORK T HUS-532006262
...
1
AXLE SHAFT HUS-532004197
...
72
KIT.SERVICE.INPUT.SHAFT HUS-532188670
...
33
NEEDLE BRNG T HUS-532004225
...
25
BEARING HUS-532000992
