Husqvarna GT2254 - 96023000500 (2005-05) Riding Tractor

Model: GT2254 - 96023000500 (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

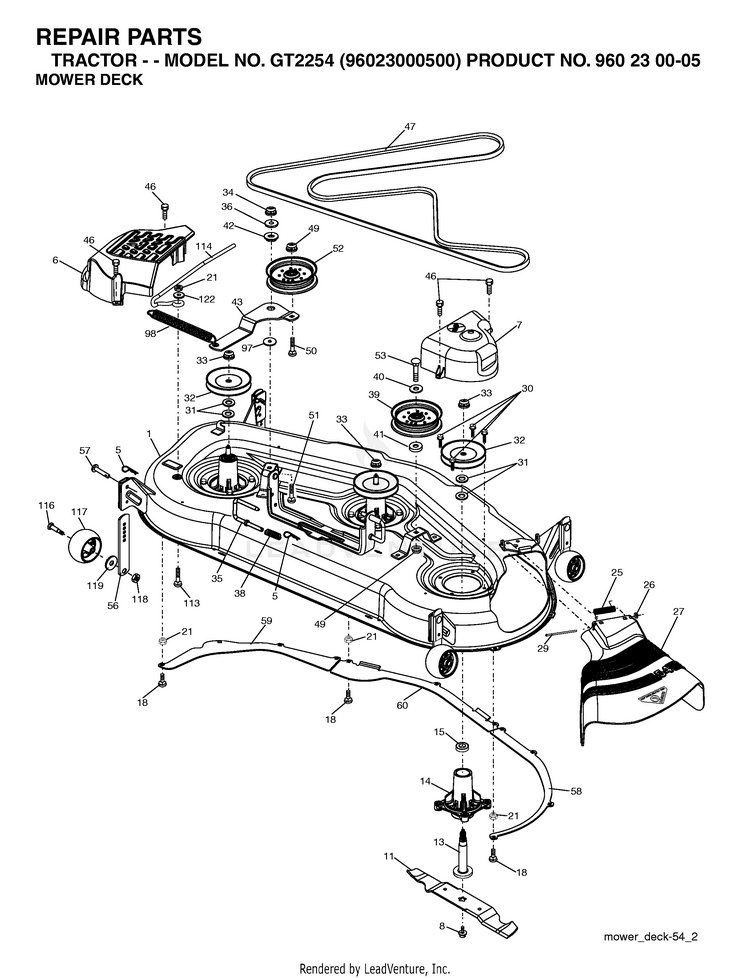

MOWER DECK / CUTTING DECK

...
...
114
ROD TENSION RELIEF HUS-532187556
...
118
Nuts HUS-596322601
...
- -
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
29
Rods HUS-595297001
...
50
Bolts HUS-596136301
...
7
COVER.MANDREL.RH.DECK.54" HUS-532188187
...
97
Washers HUS-596135501
...
58
SERVICE KIT BAFFLE.RIGHT.54" HUS-531168601
...
1
DECK.SVC.54".4GWB.GREY HUS-532196498
...
41
GSPH HUS-596134901
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
25
TORSION SPRING HUS-539107609
...
60
SERVICE KIT BAFFLE BAFFLE CENT HUS-531168801
...
122
BUSHING.RELIEF.TENSION HUS-532187557
...
6
COVER.MANDREL.LH.DECK.54" HUS-532187297
...
21
Hardware HUS-596040501
...
113
Bolts HUS-596435701
...
53
Bolts HUS-596564404
...
26
NUT PUSH M HUS-532110452
...
43
ARM.IDLER.54" HUS-532196216
...
42
SPACER.RETAINER.MOWER HUS-532165723
...
15
BEARING HUS-532110485
...
32
PULLEY MANDREL HUS-532173436
...
39
PULLEY.IDLER.STATIONARY HUS-532187284
...
- -
DECK ASM SVC 54"4GWB.GREY HUS-532196099
...
11
54" MULCH BLADE HUS-532187255
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
59
SERVICE KIT BAFFLE.LEFT.54" BA HUS-531168701
...
35
PIN.SUSPENSION.REAR.54" HUS-532188635
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
57
RIVET.PIN.HEAD.YELLOW. HUS-532156941
...
36
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
27
DEFLECTOR.BLACK.54" HUS-532187257
...
47
V-BELT.54".HIGH-PERFORMANCE HUS-584451901
...
56
BAR.ADJUST.WHEEL.ANTI.SCALP.BL HUS-532155986
...
34
Nuts HUS-596322601
...
18
Bolts HUS-596136401
...
38
SPRING COMPRESSION PULL HUS-532188657
...
119
GSPH HUS-596134901
...
40
Washer 13/32 x 1-3/8 x 13 Ga. HUS-819132203
...
5
RETAINER-SPRNG RB HUS-532124670
...
116
Bolts HUS-596434404
...
52
IDLER PULLEY HUS-532188460
...
13
MANDRELS HUS-597023501
...
51
Bolts HUS-596987501
...
98
SPRING.CLUTCH.DRIVE.54 HUS-532187282
...
33
Nuts HUS-596134801
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
31
WASHER.SPACER.MANDREL HUS-532187690
