Husqvarna GT200 - 954830156A (1995-08) Riding Tractor

Model: GT200 - 954830156A (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

SEAT

...
...
9
Washers HUS-596140201
...
21
BOLT.SHOULDER.5/16-18 HUS-532139888
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO HUS-532401043
...
20
CAP SPRING HUS-532124238
...
18
WASHER HUS-819171912
...
4
BOLT,SHOULD HUS-532127018
...
15
SPACER SPLIT HUS-532121249
...
5
PUSH CLIP HUS-532145006
...
14
Bolt Rdhd. Sht. Nk 1/4-20 x 1-3/8 HUS-872050411
...
8
Screws HUS-596030701
...
19
KNOB.SEAT.ADJ.WINGNUT HUS-532166369
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
6
Nuts HUS-596322601
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
22
Hardware HUS-596040501
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
16
SPRING COMPRESSED HUS-532123740
...
3
STRAP HUS-532140675
...
13
BUSHING HUS-532121248

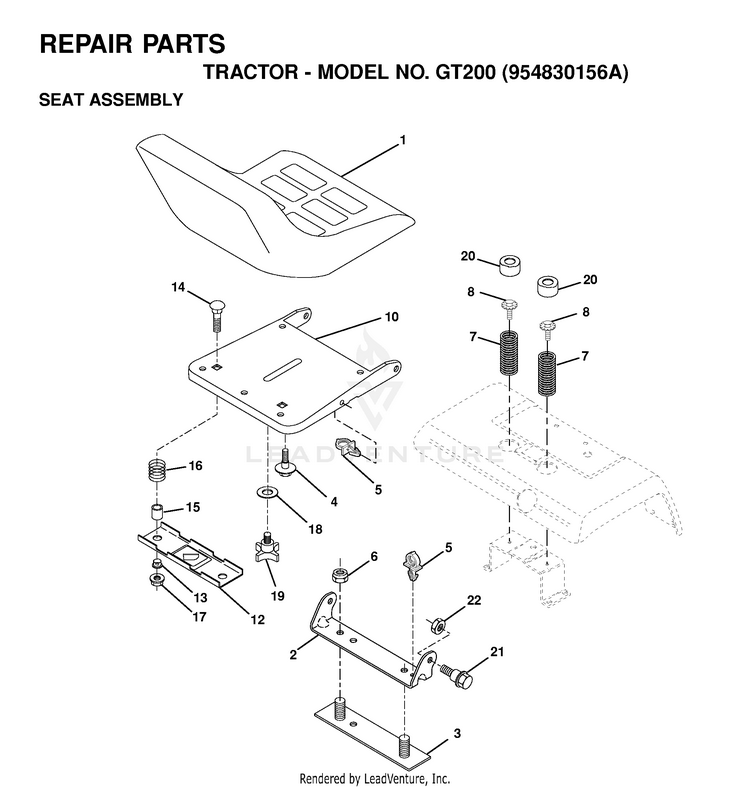

Schematic Image Zoomed
