Husqvarna GT200 - 954830156A (1995-08) Riding Tractor

Model: GT200 - 954830156A (1995-08)

Back To Assemblies

Save Part Not Listed?
product name

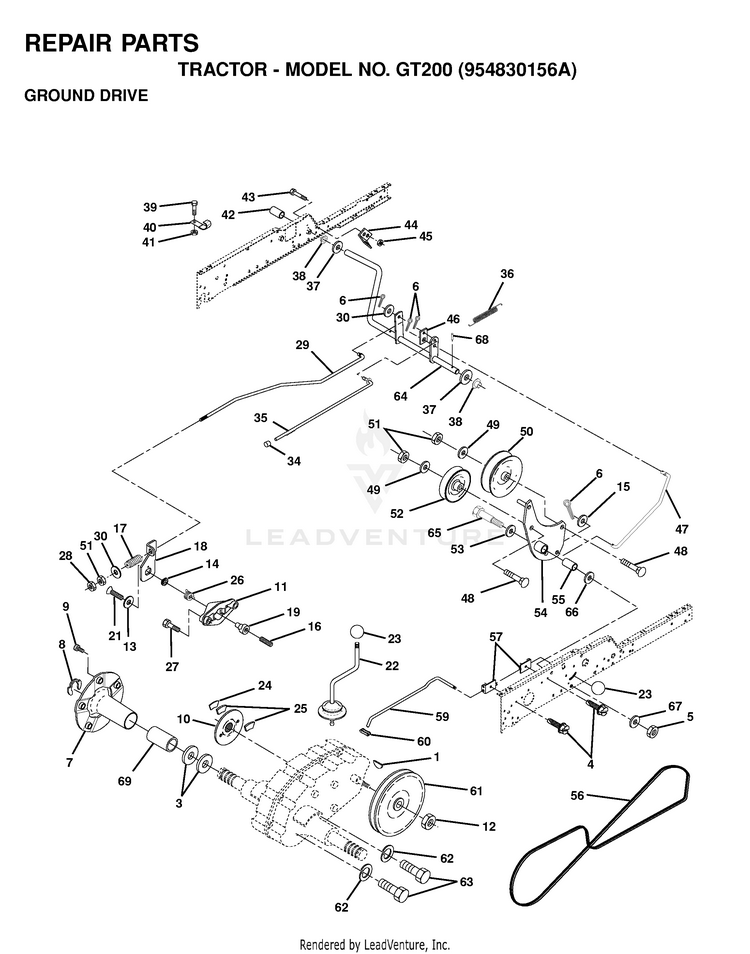

DRIVE

...
...
45
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
66
WASHER.BLADE HUS-532140296
...
12
NUT STD HUS-532009204
...
53
WASHER T HUS-532000207
...
55
BEARING LT (2 2) HUS-532105706
...
16
SET SCREW HUS-532143012
...
25
BRAKE PUCK TOP HUS-532136923
...
64
SHAFT CLUTCH/BRAKE PEDAL HUS-532154752
...
34
PLUNGER CAP HUS-532071673
...
61
TRANSAXLE PULLEY HUS-532137524
...
46
RETAINER SPRING HUS-532145170
...
26
RETURN SPRING HUS-532137552
...
54
CLUTCH ARM ASSY HUS-532138390
...
7
HUB.ASSEMBLY.WHEEL.REAR HUS-532634692
...
6
Pins HUS-596029501
...
51
Nuts HUS-596322601
...
59
ROD SHIFT HI LO HUS-532122253
...
8
Ring, Klip Truarc #5304-75 HUS-812000034
...
63
BOLT, HEX HUS-874780720
...
49
Washer 13/32 x 7/8 x 13 Gauge HUS-819131413
...
24
BRAKE PUCK SUPPORT HUS-532136925
...
37
WASHER HUS-532121749
...
38
NYLINER HUS-532150035
...
29
ROD BRAKE ZINC GT HUS-532137213
...
14
BUSHING HUS-532138901
...
27
Screws HUS-596241001
...
5
Nuts HUS-596322601
...
56
V-BELT GROUND DRIVE HUS-532137153
...
3
WASHER T HUS-532007563
...
42
COVER, PEDAL (1 2) HUS-532123533
...
62
Washers HUS-596238901
...
39
Screw, Fin. #10-24 x 1 HUS-874321016
...
44
BRKT SWITCH GT HUS-532104601
...
48
Bolts HUS-596136201
...
1
KEY HUS-532009858
...
60
CONNECTING LINK HUS-532122268
...
11
YOKE-BRAKE DISC HUS-532136927
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
52
PULLEY.IDLER.V. HUS-532139123
...
4
Screws HUS-596030701
...
47
CLUTCH ROD HUS-532138228
...
43
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
57
BRACKET SHIFT ROD HUS-532141756
...
22
GEAR SHFT LVR T HUS-532124863
...
23
KNOB HUS-532121466
...
10
DISC BRAKE HUS-532142509
...
21
Screw, Flat Head 1/4-28 x 3/4 HUS-823260412
...
17
SPRING,ROD BRAKE HUS-532126909
...
40
ACTUATOR INTERLOCK SWITCH HUS-532178575
...
9
Bolts HUS-596218701
...
13
WASHER HUS-532139419
...
65
AXLE BOLT HUS-532067609
...
36
SPRING DRIVE GROUND HUS-532149412
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
67
GSPH HUS-596134901
...
50
CLG HUS-597025001
...
69
COVER.HUB.BLACK HUS-532136327
...
41
LOCKNUT HUS-532069180
...
68
ROLL PIN STD HUS-532005142
...
35
PARKING BRAKE ROD HUS-532137648
...
19
BRAKE DISC CAM HUS-532136926
...
18
BRAKE LEVER HUS-532137104
...
31
Washers HUS-596140201
