Husqvarna GT190 - HEGT190A (1996-01) Riding Tractor

Model: GT190 - HEGT190A (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

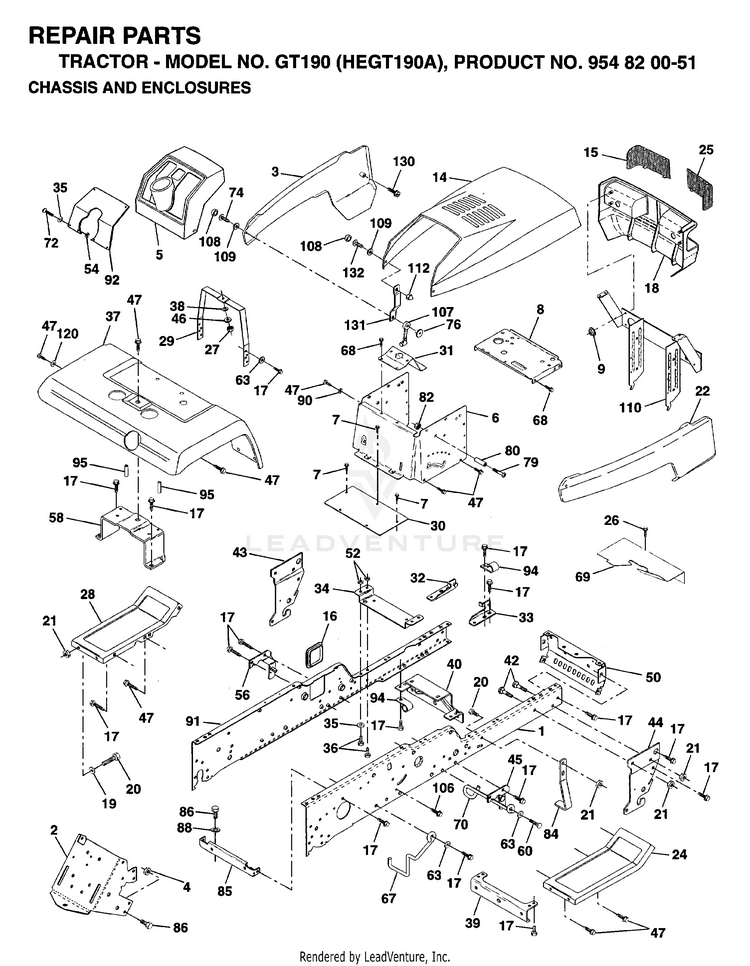

CHASSIS & ENCLOSURES

...
...
40
BRACKET, SUPPORT AXLE/ENGINE HUS-532156111
...
88
Washers HUS-596238901
...
30
SADDLE HUS-532148411
...
7
Screws HUS-596437001
...
95
NUT-PUSH YT HUS-532105531
...
67
BELT GUIDE HUS-532140737
...
80
SPACER LT HUS-532007206
...
131
BRACKET.SUPPORT.HOOD/PANEL.NLA HUS-532150195
...
79
SCREW.PAN.HEAD HUS-874981024
...
1
KIT.RAIL.CHASS.RH.GT HUS-532180375
...
58
BRACKET ASM., FENDER HUS-532183569
...
- -
PLUG-DASH T HUS-532125085
...
68
Screws HUS-596030701
...
43
FRONT SUSPENSION BRKT LH HUS-532136939
...
9
PAL NUT LT HUS-532108067
...
120
Washers HUS-596140201
...
27
NUT.HEX..25-20.UNC HUS-532050675
...
36
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
108
SNAP CAP LT HUS-532110356
...
52
Hardware HUS-596040501
...
18
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
85
BRKT.SUPPT HUS-532193923
...
94
CLIP GTV HUS-532100207
...
112
NUT 10-24 ACORN ZD HUS-539108086
...
76
Nuts HUS-596987401
...
109
WASHER LT HUS-532110357
...
6
DASH ASS'Y LOWER HUS-532150273
...
84
MOWER STOP HUS-532142992
...
63
Washers HUS-596140201
...
31
BRACE, SUPPORT STEERING HUS-532145183
...
25
LENS LH HUS-532157068
...
47
Bolts HUS-596564001
...
86
Bolts HUS-596238601
...
45
KIT.SERV.R.H.CHASSIS BRKT/HDW HUS-532155887
...
2
DRAWBAR, GT HUS-532175282
...
34
ENGINE SUPPORT BRKT HUS-532142131
...
92
NEEDS DESCRIPTION HUS-532150761
...
26
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
28
FOOT REST LH HUS-532147203
...
19
GSPH HUS-596134901
...
15
LENS.RH.HUSQVARNA.YTGT.CL HUS-532157069
...
106
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
54
Hardware HUS-596040501
...
72
Screw, Machine, Truss Head 5/16-18 UNC x 3/4 HUS-874180512
...
22
RH PANEL HUS-532150190
...
50
CHASSIS BRKT HUS-532136575
...
38
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
29
DASH SUPT YP HUS-532145205
...
4
Nut, Crownlock Hex 7/16-14 unc HUS-873680700
...
24
FOOTREST LT/YT/GT RH HUS-532145243
...
42
Bolts HUS-596728201
...
33
FRAME PIVOT BRKT ASSY RH HUS-532141314
...
5
DASH HUS-532140452
...
70
KEEPER, BELT VGT GROUND HUS-532177679
...
69
NEEDS DESCRIPTION HUS-532140023
...
82
NUT HUS-873271000
...
39
FRONT AXLE BRACKET HUS-532136961
...
91
RAIL KIT HUS-532151630
...
130
Screw, SLTD Hex Hd. W/Pl Washer HUS-817521312
...
32
FRAME PIVOT BRKT ASSY LH HUS-532141315
...
8
SUPPORT, BATTERY HUS-532145166
...
107
LATCH.HOOD. HUS-532109808
...
35
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
20
Bolts HUS-596564401
...
37
FENDER HUS-532121642
...
74
SCREW.PNHD.10-24 HUS-871191008
...
3
PANEL/LH HUS-532150189
...
60
BOLT HUS-874760620
...
90
Washers HUS-596238701
...
16
COVER ACCESS HUS-532121794
...
17
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
21
Nuts HUS-596322601
...
110
PIVOT ASM GRL/HD HUS-532150200
...
46
Washers HUS-596204201
...
44
FRONT SUSPENSION BRKT RH HUS-532136940
...
56
KIT.SERV.LH.CHASSIS BRKT/HDW HUS-532155886
...
14
HOOD.HUSQVARNA.ORANGE HUS-532125454
