product name

Husqvarna GT190 - HEGT190A (1996-01) Riding Tractor

Model: GT190 - HEGT190A (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

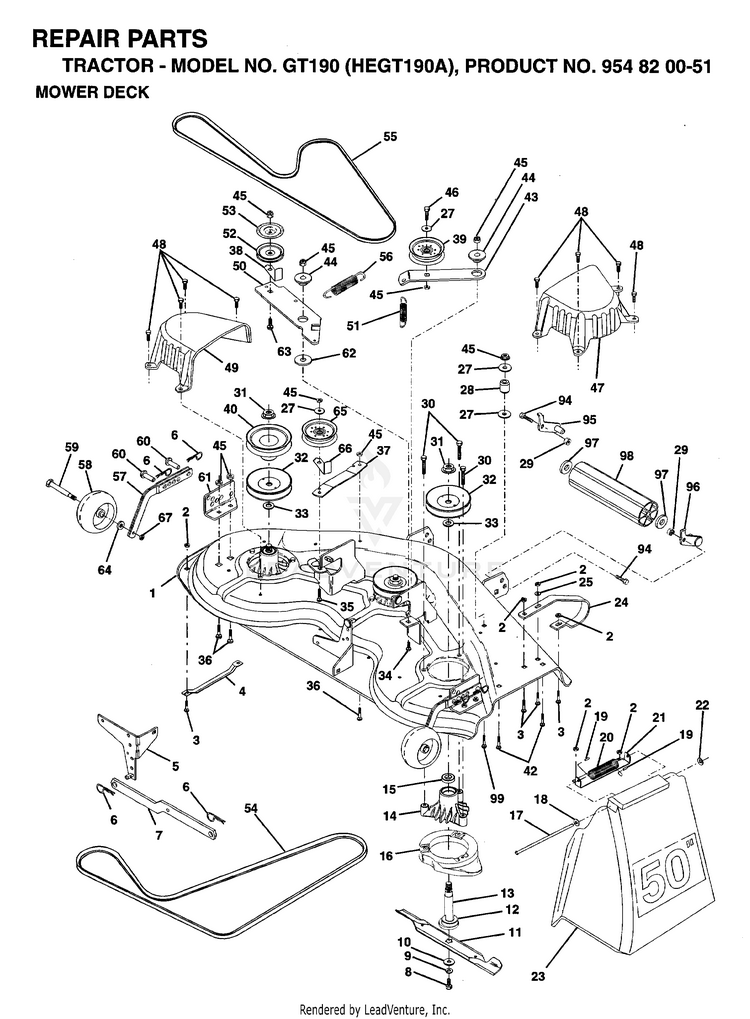

MOWER DECK / CUTTING DECK

...
...
3
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
2
Hardware HUS-596040501
...
66
KEEPER, BELT IDLER 44/50 HUS-532156009
...
8
BLADE BOLT HUS-532850857
...
58
WHEEL GAGE DONUT HUS-532133957
...
64
GSPH HUS-596134901
...
29
Nuts HUS-596322601
...
45
Nuts HUS-596322601
...
56
SPRING HUS-532138687
...
55
BELT V SECONDARY HUS-532144959
...
47
COVER MANDRELL HUS-532137200
...
19
CAP-SLEEVE LT HUS-532105304
...
40
PULLEY.DRIVEN.44" HUS-532136572
...
10
WASHER.BLADE HUS-532140296
...
5
BRACKET SWAY BAR HUS-532138457
...
96
SERVICE KIT BRACKET BRACKET AS HUS-531154101
...
36
Bolts HUS-596728201
...
--
KIT.MANDREL.ASM.44"/46/50"SRVC HUS-532143651
...
98
NOSE ROLLER HUS-532132264
...
11
BLADE.50".HI-LIFT HUS-532137380
...
95
BRACKET ASM, ROLLER (L) HUS-532175746
...
27
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
21
SERVICE KIT BRACKET BRACKET HUS-531155201
...
50
ARM.IDLER.PRIMARY HUS-532137272
...
38
Keepers HUS-597024901
...
25
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
48
SCREW.1/4-20X5/8 HUS-532137729
...
59
Bolts HUS-596434404
...
6
RETAINER-SPRNG RB HUS-532124670
...
32
PULLEY MANDREL HUS-532173436
...
34
Bolts HUS-595901101
...
42
GSPW Bolts HUS-595901601
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
51
SPRING.SEC.44"VEN HUS-532137273
...
20
SPRING TORSION HUS-532123713
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
61
BRACKET.GUAGE.WHEEL HUS-532136573
...
53
SHIELD IDLER HUS-532137789
...
63
GSPW Bolts HUS-596136101
...
62
WASHER HUS-532178515
...
13
SHAFT.ASM.W/BEARING HUS-532137553
...
--
DECK.ASM SVC 50".HP.WID GA/WHL HUS-532181689
...
57
BAR.ASM.GUAGE.WHEEL HUS-532136577
...
15
BEARING HUS-532110485
...
94
Bolts HUS-596564401
...
67
Nuts HUS-596322601
...
24
RUNNER RH HUS-532136320
...
23
SHIELD.DEFLECTOR.MOWER.50"BLK. HUS-532110509
...
28
IDLER SPRING SPACER HUS-532132823
...
65
IDLER-FLAT T HUS-532102403
...
39
CLG HUS-597025001
...
31
KIT.NUT.FLANGE HUS-532139729
...
4
RUNNER LH HUS-532007631
...
14
HOUSING.MANDREL.44/46" VENT HUS-532137152
...
33
WASHER.SPACER.MANDREL HUS-532187690
...
37
STIFFENER ARM HUS-532137166
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
43
ARM.IDLER.SEC.44" HUS-532136460
...
17
ROD-HINGE T HUS-532106735
...
22
NUT PUSH M HUS-532110452
...
46
BOLT HUS-582740701
...
60
PIN.CLEVIS HUS-532139031
...
54
V-BELT.PRMRY 46/50 VENT.BLK BK HUS-532139573
...
44
SPACER.RETAINER.MOWER HUS-532165723
...
1
DECK SVC 50".BLACK HUS-532185382
...
7
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
18
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
97
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
99
Bolts HUS-596136201
...
35
Bolts HUS-596136301
...
52
PULLEY IDLER HUS-532139245
...
49
COVER.MANDREL.LH.44" HUS-532136574
...
9
Washers HUS-596238701
