Husqvarna GT180FR (1999 & Before) Tractor

Model: GT180FR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

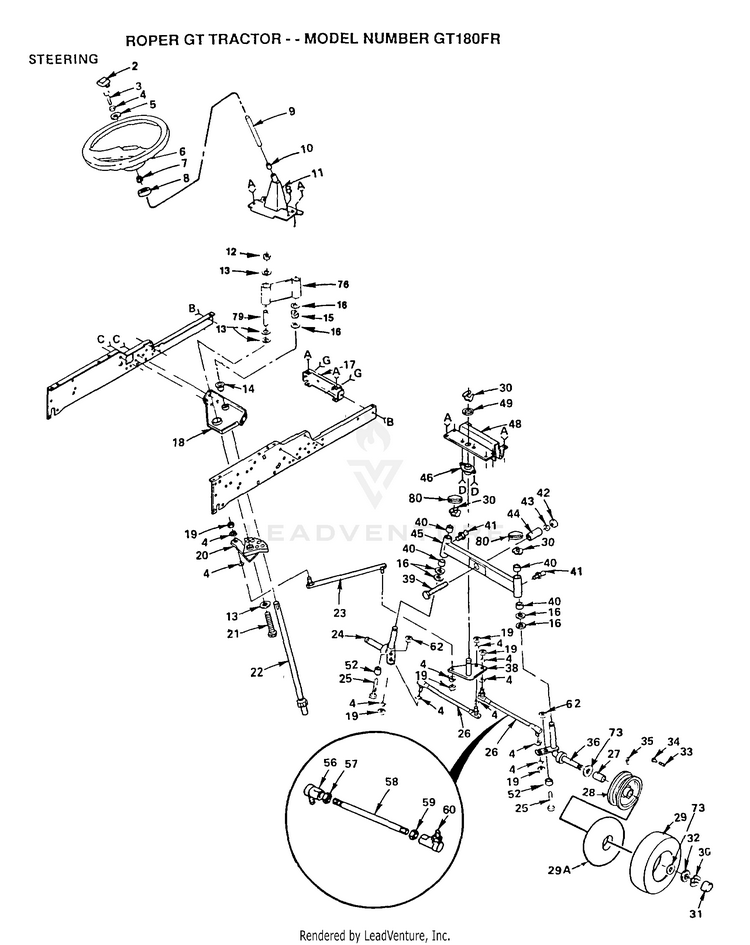

STEERING

...
...
2
INSERT STEERING HUS-121584X
...
3
BOLT HUS-74780616
...
4
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
5
WASHER T HUS-19133808
...
6
SUB= 150546 HUS-121472X
...
7
ADAPTER LT HUS-100711L
...
8
SPACER LT HUS-106943X
...
9
TUBE HUS-108540X
...
10
"T, BEARING" HUS-9038R
...
11
SUPPORT ASSY T HUS-101274N
...
12
NUT LTV HUS-73680800
...
13
WASHER GT HUS-19172610
...
14
"FLANGE GT, BEAR." HUS-104239X
...
15
KLIP RING HUS-12000034
...
16
WASHER .T HUS-6266H
...
17
FRAME BRACKET GT HUS-5213J
...
18
SUB= 144668 HUS-102439X
...
19
SUB= 7810H HUS-73610600
...
20
SECTOR T HUS-120424X
...
21
BOLT T HUS-74780880
...
22
SHAFT STEERING GT HUS-104591X
...
23
LINK.DRAG.T HUS-110497X
...
24
SPINDLE ASSY T HUS-106046X
...
25
BOLT, HEX 3/8 - 16 X 2 HUS-74520632
...
26
TIE ROD T HUS-109849X
...
27
"FLANGE, BEARING" HUS-9040H
...
28
SUB= 106228X417 HUS-106228X
...
29
SUB= 122075X HUS-3938R
...
29A
TUBE.16X6.5/7.5-8 HUS-8134H
...
30
RING HUS-12000029
...
31
HUB CAP HUS-104757X
...
32
SUB= 121749X HUS-19252016
...
33
VALVE CAP HUS-59192
...
34
VALVE STEM LT HUS-65139
...
35
FITTING LT HUS-278H
...
36
SPINDLE RH T HUS-106045X
...
38
"T, BELLCRANK" HUS-108137X
...
39
BOLT HUS-74781044
...
40
BRNG. T HUS-1309H
...
41
ZERK M HUS-6855M
...
42
NUT X HUS-73221000
...
43
WASHER HUS-10041000
...
44
SUB= 136518 HUS-5298J
...
45
AXLE ASSEMBLY HUS-674A243
...
46
SUB= 140342 HUS-5292J
...
48
AXLE BRACKET T HUS-5284J
...
49
WASHER HUS-19292016
...
52
STOP T HUS-110946X
...
56
SUB= 109851X HUS-8922R
...
57
NUT HUS-73700600
...
58
SUB= 121159X HUS-7919J
...
59
NUT HUS-73360600
...
60
SUB= 109850X HUS-8921R
...
62
SUB= 73690600 HUS-73680600
...
73
SUB= 121748X HUS-19252616
...
76
COLLAR HUS-121177X
...
79
TUBE T HUS-120199X
...
80
CAP HUS-121232X
