Husqvarna GT180DR (1999 & Before) Tractor

Model: GT180DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

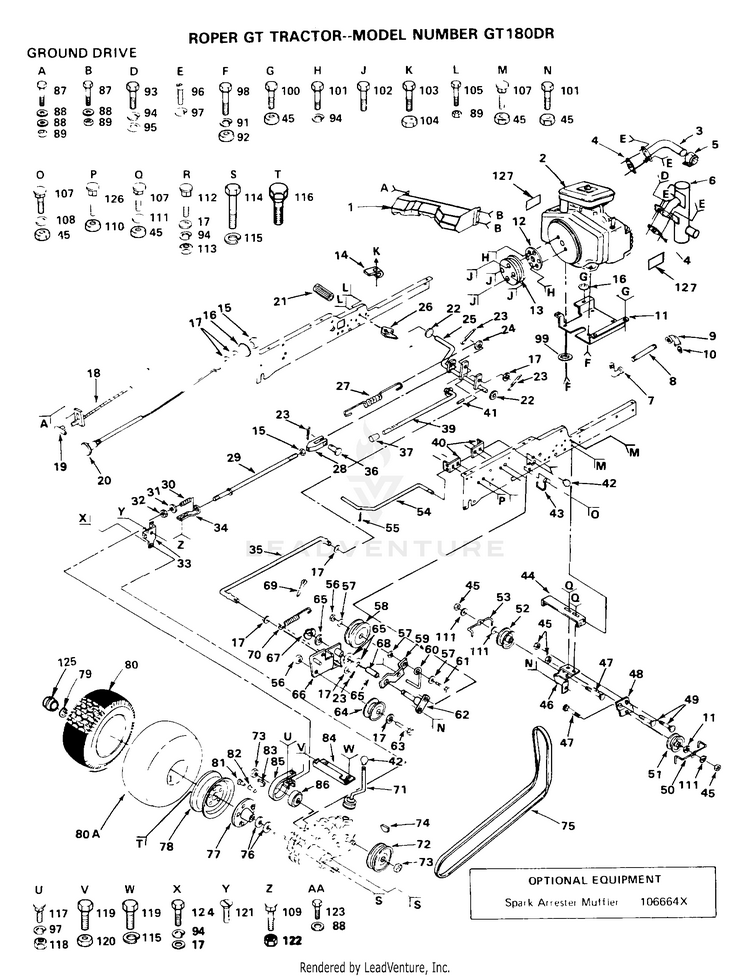

GROUND DRIVE, BELT, REAR WHEELS

...
...
1
BAFFLE ASSY - ENGINE HUS-120227X
...
2
ENGINE HUS-120384X
...
3
EXHAUST TUBE T HUS-100229L
...
4
SUB= 272250 HUS-8545J
...
5
CLAMP-TUBE GTV HUS-100000K
...
6
MUFFLER T HUS-100228N
...
7
ELBOW HUS-13240200
...
8
NIPPLE-1/4 HUS-13280220
...
9
NLA HUS-13200200
...
10
PIPE PLUG HUS-13020200
...
11
"ENGINE GT, BASE" HUS-5266J
...
12
ADAPTER T HUS-104577X
...
13
PULLEY GT HUS-120331X
...
14
ACT-SWITCH T HUS-5304J
...
15
SUB= 7810H HUS-73610600
...
16
LOCKWASHER HUS-11050600
...
17
WASHER HUS-19131316
...
18
THRTL CONTROL T HUS-5693J
...
19
KNOB HUS-61159
...
20
SUB= 532132780 HUS-104596X
...
21
PEDAL COVER T HUS-8883R
...
22
SUB= 121749X HUS-19252016
...
23
SUB= 3145 HUS-76020312
...
24
WASHER M HUS-19111216
...
25
SHAFT ASSY GT HUS-104375X
...
26
BRKT SWITCH GT HUS-104601X
...
27
EXT SPRING GT HUS-106021X
...
28
YOKE GTV HUS-100604K
...
29
BRAKE ROD T HUS-5308J
...
30
SPRING T HUS-7241J
...
31
WASHER HUS-19131614
...
32
SUB= 7810H HUS-73530600
...
33
BRAKE BRKT ASSY T HUS-677A637
...
34
GUIDE ROD T HUS-7229J
...
35
ROD CLUTCH GTV HUS-101356L
...
36
CLEVIS PIN T HUS-5102J
...
37
PLUNGER CAP T HUS-71673
...
39
SUB= 136284 HUS-109767X
...
40
ROD BRACKET GT HUS-105598X
...
41
ROLL PIN STD HUS-5142H
...
42
SUB= 106932X HUS-100196K
...
43
BELT RETAINER GT HUS-105500X
...
44
BRACKET-DRIVE GT HUS-105599X
...
45
SUB= 73690600 HUS-73680600
...
46
BRKT-V-PULLEY GT HUS-106000X
...
47
BOLT HUS-72110606
...
48
BRACKET HUS-5255J
...
49
BOLT HUS-72140606
...
50
NLA HUS-106048X
...
51
IDLER-FLAT T HUS-102403X
...
52
PULLEY V IDLR GTV HUS-101344L
...
53
ROD SHIFT GTV HUS-101345M
...
55
SUB= 76020624 HUS-76020616
...
56
LOCKNUT HUS-73930600
...
57
WASHER HUS-19131413
...
58
SUB= 131494 HUS-104360X
...
59
BRACKET GTV HUS-101347L
...
60
BELT RETAINER GT HUS-105597X
...
31
SUB= 74930632 HUS-74760632
...
62
BRACKET ASSY GTV HUS-101358K
...
63
SUB= 74930624 HUS-74760624
...
64
SUB= 110484X HUS-8846R
...
65
WASHER T HUS-207J
...
66
CLUTCH BRACKET GT HUS-105592X
...
67
KLIP RING HUS-12000039
...
68
"GTV, BEARING" HUS-101350K
...
69
COTTER PIN HUS-76020816
...
70
SPRING GTV HUS-101355X
...
71
GEAR SHFT LVR T HUS-633A109
...
72
PULLEY GT HUS-120332X
...
73
NUT STD HUS-9204H
...
74
KEY HUS-9858M1
...
75
GEAR 28T T HUS-120408X
...
76
WASHER T HUS-7563R
...
77
SUB= 149176X431 HUS-634A692
...
78
SUB= 106277X417 HUS-106277X
...
79
KLIP RING HUS-12000034
...
80
SUB= 122077X HUS-4607R
...
80A
TUBE.23X8/10-12 HUS-7154J
...
81
VALVE CAP HUS-59192
...
82
VALVE STEM LT HUS-65139
...
83
SUB= 2228M1 HUS-2228M
...
84
SUB= 101122M HUS-7920J
...
85
SUB= 101122M HUS-7920J
...
86
BRAKE DRUM T HUS-214J
...
87
SUB= 74780414 HUS-74780412
...
88
WASHER HUS-19091016
...
89
SUB= 73690400 HUS-73680400
...
90
BOLT HUS-72010510
...
91
LOCKWASHER HUS-10040500
...
92
NUT.HEX.5/16-18 HUS-73220500
...
93
BOLT HUS-74780612
...
94
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
95
WASHER HUS-19131210
...
96
SCREW GTV HUS-74570412
...
97
LOCKWASHER HUS-10040400
...
98
BOLT HUS-74780520
...
99
LOCKWASHER.5/16.E HUS-11050500
...
100
SUB= 74780612 HUS-74760612
...
101
BOLT HUS-74780616
...
102
SCREW T HUS-17190512
...
103
SCREW HUS-74321016
...
104
SUB= 69180 HUS-73631000
...
105
BOLT LT HUS-74760412
...
107
BOLT D HUS-72110608
...
108
WASHER HUS-19131312
...
109
SUB= 72270506 HUS-72110506
...
110
SUB= 73690500 HUS-73680500
...
111
WASHER GT HUS-19131612
...
112
SUB= 72110608 HUS-72140608
...
113
NUT.HEX.3/8-16UNC HUS-73220600
...
114
BOLT HUS-74760724
...
115
LOCKWASHER HUS-10040700
...
116
SUB= 140080 HUS-1304H
...
117
BOLT T HUS-72140405
...
118
SUB= 50675 HUS-73220400
...
119
BOLT HUS-74760716
...
120
NUT GTV HUS-73680700
...
121
SCREW HUS-74370612
...
122
SUB= 68478 HUS-1685H
...
123
SCREW HUS-17720408
...
124
SUB= 74760616 HUS-74760614
...
125
CAP-HUB GT HUS-104758X
...
126
BOLT HUS-72140506
...
127
NLA HUS-110041X
