Husqvarna GT180DR (1999 & Before) Tractor

Model: GT180DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

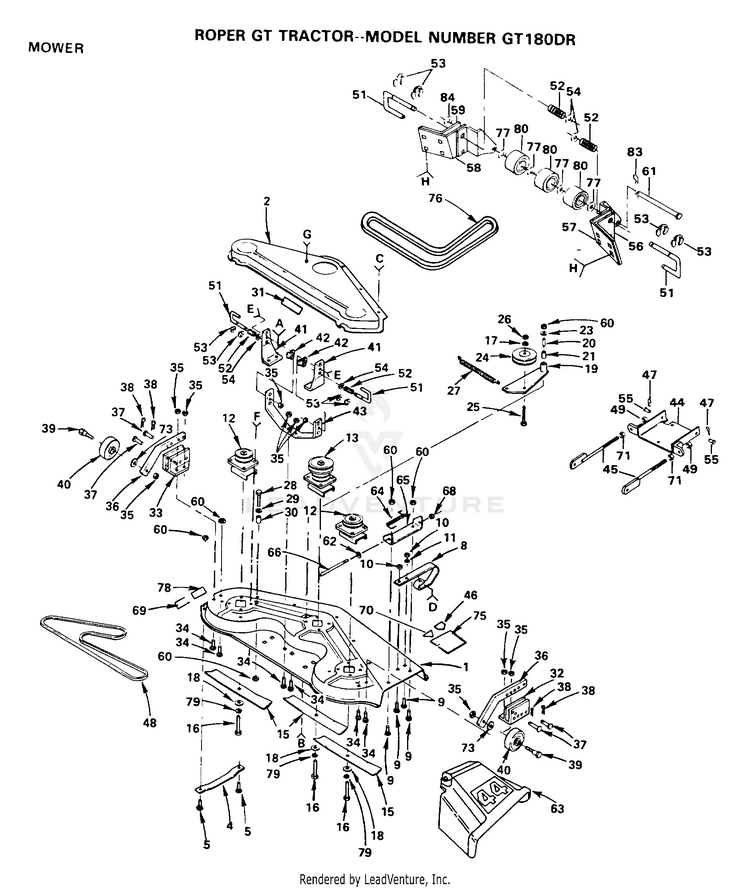

44" MOWER DECK, BELTS, BLADES

...
...
1
SUB= 144730 HUS-105415X
...
2
DECK DRV COVE T HUS-106022X
...
4
RUNNER-LH M HUS-7631J
...
5
BOLT HUS-72110505
...
8
SUB= 136321 HUS-8418J
...
9
BOLT HUS-72140506
...
10
SUB= 68478 HUS-1685H
...
11
WASHER HUS-19111116
...
12
SUB= 136819 HUS-105483X
...
13
SUB= 121657X HUS-106038X
...
15
SUB= 25034 HUS-106635X
...
16
BOLT.3/8-24X1-1/2 HUS-74610624
...
17
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
18
WASHER HUS-19132012
...
19
ARM ASSY GT HUS-674A213
...
20
SUB= 674A308 HUS-7834J
...
21
SUB= 674A308 HUS-7835J
...
23
WASHER HUS-19111610
...
24
IDLER-FLAT T HUS-102403X
...
25
SUB= 74930624 HUS-74760624
...
26
NUT.HEX.3/8-16UNC HUS-73220600
...
27
SPRING T HUS-104361X
...
28
BOLT HUS-74780520
...
29
WASHER M HUS-19111216
...
30
SPACER SPLIT LT HUS-8438J
...
31
SUB= 139346 HUS-106224X
...
32
GUAGE WHL BRKT GT HUS-105448X
...
33
GUAGE WHL BRKT GT HUS-105449X
...
34
BOLT HUS-72240606
...
35
SUB= 73690600 HUS-73680600
...
36
GUAGE WHL BAR GT HUS-105453X
...
37
SUB= 139031 HUS-5565J
...
38
SUB= 85902 HUS-4939M
...
39
BOLT M HUS-4898H
...
40
WHEEL.GAGE.BLK.PL HUS-105455X
...
41
SUSP BRKT GT HUS-105433X
...
42
SPACER GT HUS-110237X
...
43
SUSP BRACE GT HUS-105434X
...
44
SUB= 140741X431 HUS-109778X
...
45
BRACKET.SUSPEN.AS HUS-109771X
...
46
SUB= 85463 HUS-78850
...
46
DECAL HYT HUS-107339X
...
47
RETAINER.SPRING HUS-3146R
...
48
V-BELT HUS-106381X
...
49
NUT LTV HUS-73680800
...
51
RELEASE PIN GT HUS-105435X
...
52
SPRING M HUS-3720R
...
53
KLIP RING HUS-12000039
...
54
WASHER GT HUS-19171612
...
55
CLEVIS PIN GT HUS-105440X
...
56
OUTER BRKT RH GT HUS-105456X
...
57
BRACKET T HUS-109773X
...
58
BRACKET T HUS-109775X
...
59
OUTER BRKT LH GT HUS-105457X
...
60
SUB= 73690500 HUS-73680500
...
61
PIVOT PIN T HUS-109776X
...
62
WASHER HUS-19111016
...
63
DEFLECTOR SHIELD HUS-109785X
...
64
SUB= 123713X HUS-106734X
...
65
SUB= 137607 HUS-109743X
...
66
ROD-HINGE T HUS-106735X
...
68
SUB= 110452X HUS-5846R
...
69
DECAL INSTRUCTION CAUTION HUS-3713J
...
70
DECAL - SAFETY STANDARD HUS-106975X
...
71
NUT HUS-73220800
...
73
WASHER HUS-19171512
...
75
NLA HUS-109819X
...
76
SUB= 108597X HUS-106863X
...
77
WASHER T HUS-19151610
...
78
DECAL-INST YT HUS-105185X
...
79
SUB= 10040600 HUS-10030600
...
80
ROLLER T HUS-109729X
...
83
SPRING.RETAINER HUS-4921H
...
84
SUB= 19171616 HUS-19151616
