Husqvarna GT180CT (1999 & Before) Tractor

Model: GT180CT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

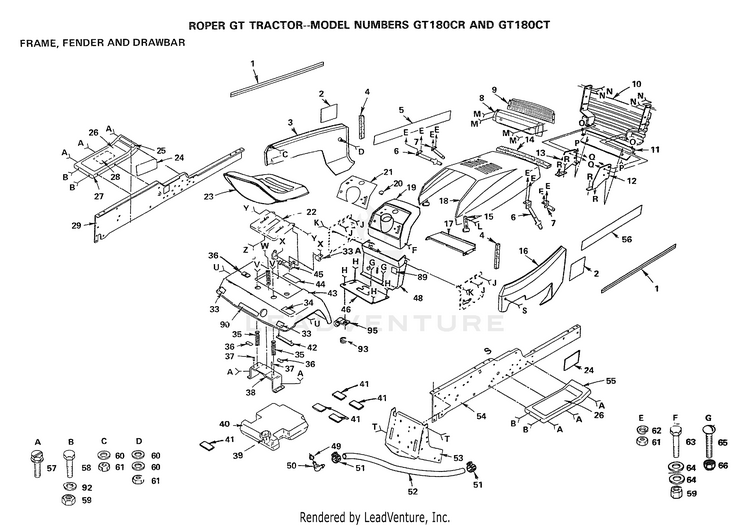

FRAME, FENDER AND DRAWBAR

...
...
1
NLA HUS-104646X
...
2
NLA HUS-104639X
...
3
SUB= 150302X505 HUS-108372X367
...
4
FOAM STRIP HYT HUS-105036X
...
5
NLA HUS-104643X
...
6
SUB= 155013 HUS-106784X
...
7
SUB= 155013 HUS-104618X
...
8
SUB= 147717 HUS-104613X
...
9
LENS LT HUS-106395X
...
10
GRILL GT HUS-104628X
...
11
SUB= 105419X388 HUS-104634X367
...
12
SUPPORT-GRILL HUS-105288X
...
13
SUPPORT-GRILL HUS-105287X
...
14
FOAM-STRIP LT HUS-105037X
...
15
SUB= 109808X HUS-100225L
...
16
SUB= 140679X505 HUS-108371X367
...
17
SUB= 140229 HUS-7985J
...
18
SUB= 150301X505 HUS-108370X367
...
19
DASHBOARD T HUS-106796X
...
20
PLUG-DASH T HUS-8022J
...
21
DECAL-DASHBOARD HUS-106797X
...
21
DECAL-DASHBOARD HUS-108697X
...
22
SEAT PAN T HUS-109866X
...
23
SUB= 164945 HUS-110057X
...
24
NLA HUS-104640X
...
25
DECAL T HUS-4900J
...
25
DECAL T HUS-101892X
...
26
SUB= 108256X HUS-109864X
...
27
SUB= 145244X428 HUS-105465X367
...
28
DECAL T HUS-106868X
...
29
SUB= 151630 HUS-105504X
...
32
SUB= 74780816 HUS-74760816
...
33
REFLECTOR-TAIL YT HUS-106202X
...
33A
CLIP T HUS-2751R
...
34
DECAL-CAUTION HUS-7178J
...
34
NLA HUS-101893X
...
35
SPRING LT HUS-105512X
...
36
"CLAMP, SPRING LT" HUS-105514X
...
37
NUT-PUSH YT HUS-105531X
...
38
SUB= 137113 HUS-105509X
...
39
SUB= 158990 HUS-109462X
...
40
SUB= 151346 HUS-106020X
...
41
PAD-SPACER LT HUS-106082X
...
42
SUB= 140675 HUS-105511X
...
43
NLA HUS-109593X367
...
44
SUB= 133796 HUS-106974X
...
44
SUB= 120822X HUS-108658X
...
45
BRACKET T HUS-110378X
...
46
SUB= 106042X012 HUS-106042X
...
48
DASH ASSEMBLY HUS-104608X
...
49
BUSHING OUTLET T HUS-3645J
...
50
FUEL TANK STEM GT HUS-8710J
...
51
SUB= 123487X HUS-6999R
...
52
SUB= 8543R HUS-5277J
...
53
SUB= 140506 HUS-7982J
...
54
SUB= 150383 HUS-105506X
...
55
SUB= 145243X505 HUS-105464X367
...
56
NLA HUS-104644X
...
57
SCREW HUS-17490612
...
58
SUB= 74780612 HUS-74760612
...
59
SUB= 73690600 HUS-73680600
...
60
WASHER PM HUS-19091216
...
61
SUB= 50675 HUS-73220400
...
62
SUB= 10040400 HUS-10090400
...
63
BOLT HUS-74760616
...
64
WASHER HUS-19131316
...
65
SCREW HUS-74180512
...
66
SUB= 73690500 HUS-73680500
...
87
WASHER HUS-19131416
...
89
DECAL, INSTRUCTION HUS-8497J
...
89
NLA HUS-101895X
...
90
NLA HUS-104810X
...
91
SPRING T HUS-109867X
...
92
WASHER HUS-19131312
...
93
GROMMET T HUS-109641X
...
94
SCREW GTV HUS-17490616
...
95
CLIP T HUS-4171R
