Husqvarna GT 2254 (96025000200) (2005-05) Ride Mower

Model: GT 2254 (96025000200) (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

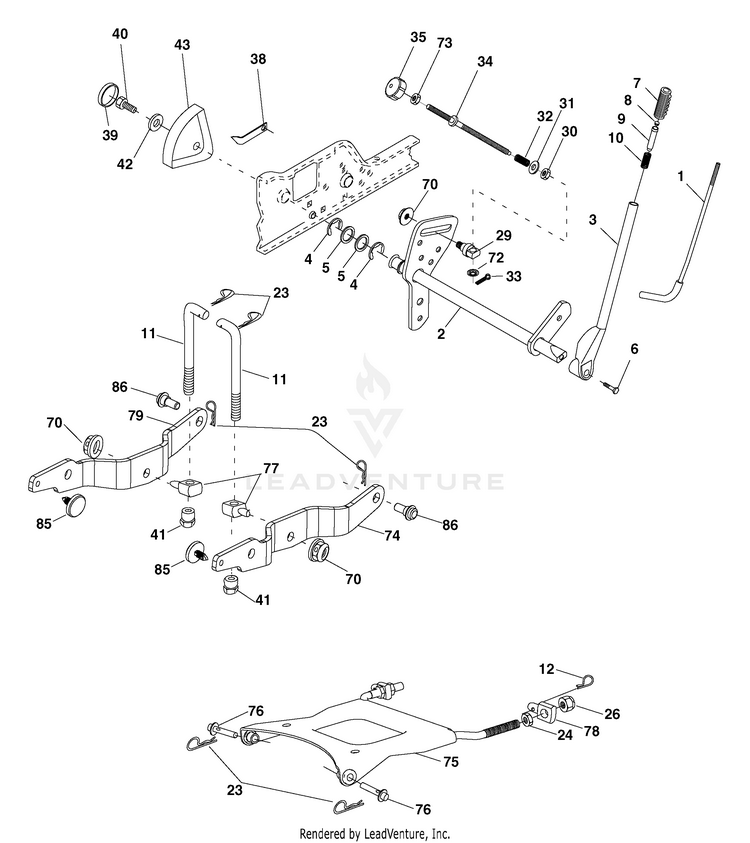

Lift Assembly

...
...
1
LEVER ROD LT HUS-532121006
...
2
SHAFT ASM., LIFT VGT HUS-532180045
...
3
LEVER ASSY-LIFT RH HUS-532159189
...
4
E-RING HUS-812000022
...
5
Washer 29/32 x 1-1/4 x 16 Ga. HUS-819292016
...
6
Bolt, Fin Hex 3/8-16 x 1-1/2 HUS-871110624
...
7
GRIP HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
9
PLUNGER BUTTON KIT HUS-532125925
...
10
SPRING 0.620D X 2.125 HUS-532183894
...
11
LIFT LINK HUS-532181576
...
12
SPRING RETAINER HUS-532003146
...
23
RETAINER-SPRNG RB HUS-532124670
...
24
Nuts HUS-596433401
...
26
GSPW NUTS HUS-596135601
...
29
Trunnion Infin Height HUS-532150223
...
30
NUT T HUS-532110807
...
31
WASHER HUS-819131016
...
32
SPRING.COMP.INF.H HUS-532137150
...
33
Pins HUS-596917601
...
34
ROD.LIFT.ADJUSTABLE HUS-532137167
...
35
KNOB INF 3/8-16 HUS-532138057
...
38
POINTER, HEIGHT INDICATOR(2 2) HUS-532155097
...
39
PLUG,HOLE HUS-532123935
...
40
Screws HUS-593337601
...
41
NUT.LIFT LNK.7/16-2 HUS-589464902
...
42
WASHER HUS-819112410
...
43
HEIGHT INDICATOR HUS-532123934
...
70
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
72
NUT PUSH M HUS-532110452
...
73
NUT.HEX.3/8-16UNC HUS-873220600
...
74
ARM.SUSP.REAR.RH HUS-532187277
...
75
PLATE ASM SUSP FRONT HUS-532175805
...
76
PIN.FLANGE HUS-532175560
...
77
TRUNNION HUS-532176205
...
78
TRUNNION HUS-532175689
...
79
ARM SUSPENSION LH HUS-532187276
...
85
INSERT WEAR (3 2) HUS-532189013
...
86
BOLT.SHOULDER HUS-532188528
