Husqvarna GT 2254 (96025000200) (2005-05) Ride Mower

Model: GT 2254 (96025000200) (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

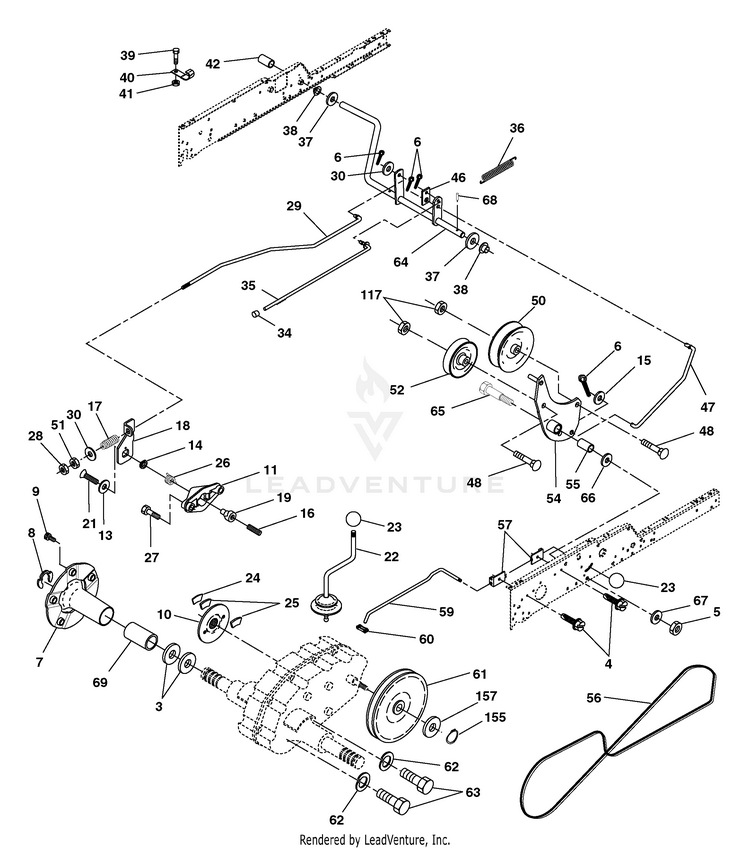

Ground Drive

...
...
3
WASHER T HUS-532007563
...
4
Screws HUS-596030701
...
5
Nuts HUS-596322601
...
6
Pins HUS-596029501
...
7
HUB.ASSEMBLY.WHEEL.REAR HUS-532634692
...
8
Klip, Ring HUS-812000034
...
9
Bolts HUS-596218701
...
10
DISC BRAKE HUS-532142509
...
11
YOKE-BRAKE DISC HUS-532136927
...
13
WASHER HUS-532139419
...
14
BUSHING HUS-532138901
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
16
SET SCREW HUS-532143012
...
17
SPRING,ROD BRAKE HUS-532126909
...
18
BRAKE LEVER HUS-532137104
...
19
BRAKE DISC CAM HUS-532136926
...
21
Screw, Flat Head 1/4-28 x 3/4 HUS-823260412
...
22
LEVER.ASM.SHIFT HUS-532194121
...
23
KNOB T (3/8 HOLE) HUS-532106932
...
24
BRAKE PUCK SUPPORT HUS-532136925
...
25
BRAKE PUCK TOP HUS-532136923
...
26
RETURN SPRING HUS-532137552
...
27
SCREW HUS-532193135
...
28
NUT.HEX.3/8-16UNC HUS-873220600
...
29
ROD BRAKE ZINC GT HUS-532137213
...
30
Washers HUS-596140201
...
34
PLUNGER CAP HUS-532071673
...
35
PARKING BRAKE ROD HUS-532137648
...
36
SPRING DRIVE GROUND HUS-532149412
...
37
WASHER HUS-532121749
...
38
NYLINER HUS-532150035
...
39
Screw, Fin. #10-24 x 1 HUS-874321016
...
40
ACTUATOR INTERLOCK SWITCH HUS-532178575
...
41
Nut, Centerlock #10-24 HUS-873931000
...
42
PAD, FOOT PEDAL HUS-510089501
...
46
RETAINER SPRING HUS-532145170
...
47
CLUTCH ROD HUS-532138228
...
48
GSPW Bolts HUS-596136101
...
50
CLG HUS-597025001
...
51
Nuts HUS-596322601
...
52
PULLEY.IDLER.V. HUS-532139123
...
54
CLUTCH.ARM.ASM.IDLER.98 HUS-532161590
...
55
BEARING LT (2 2) HUS-532105706
...
56
V-BELT GROUND DRIVE HUS-532137153
...
57
BRACKET SHIFT ROD HUS-532141756
...
59
ROD SHIFT HI LO HUS-532122253
...
60
CONNECTING LINK HUS-532122268
...
61
PULLEY.TRANSAXLE HUS-532184787
...
62
Washers HUS-596238901
...
63
BOLT, HEX HUS-874780720
...
64
SHAFT CLUTCH/BRAKE PEDAL HUS-532154752
...
65
BOLT.SHLDR.3/8-16 HUS-532179613
...
66
WASHER.BLADE HUS-532140296
...
67
GSPH HUS-596134901
...
68
ROLL PIN STD HUS-532005142
...
69
COVER.HUB.BLACK HUS-532136327
...
117
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
155
RETAINING RING LT HUS-812000028
...
157
THRUST WASHER HUS-532001370
